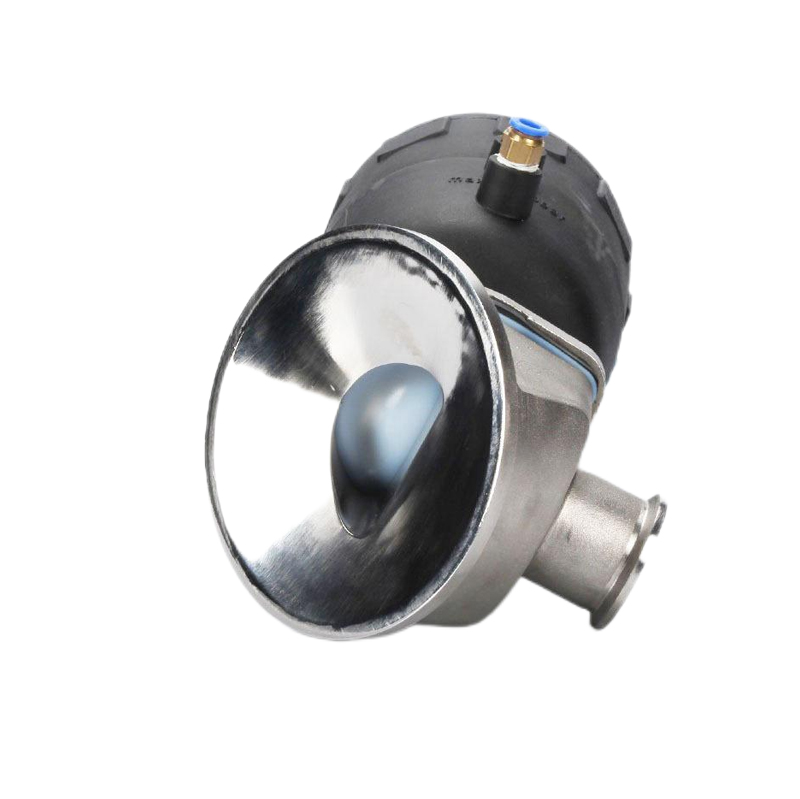

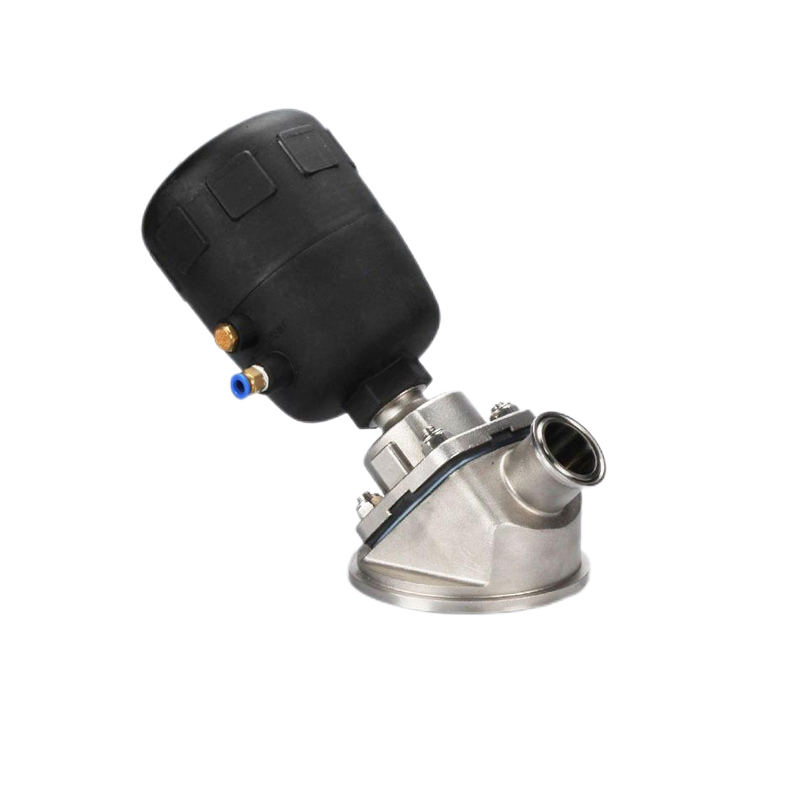

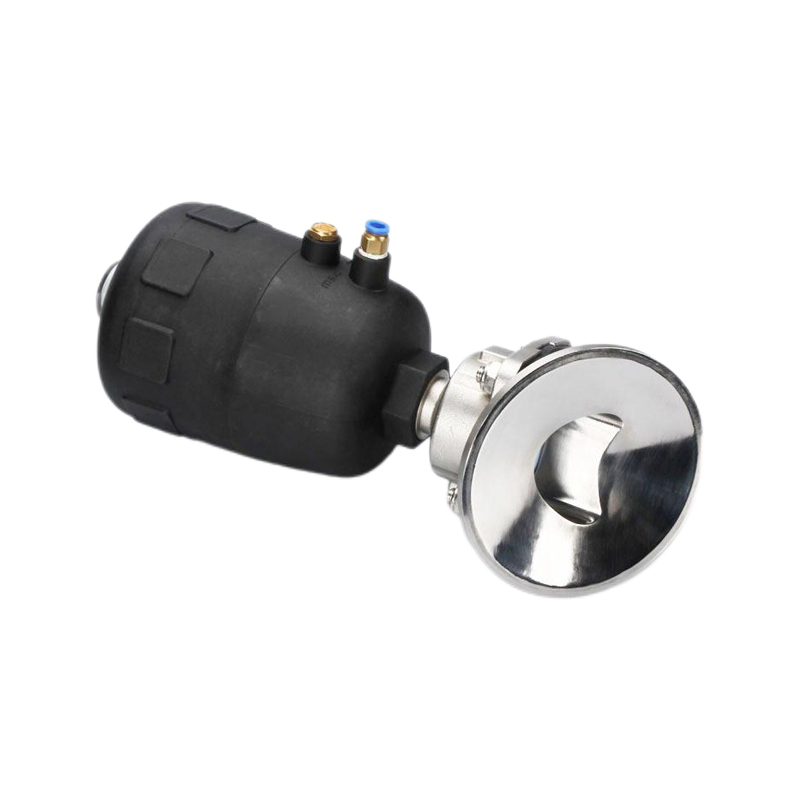

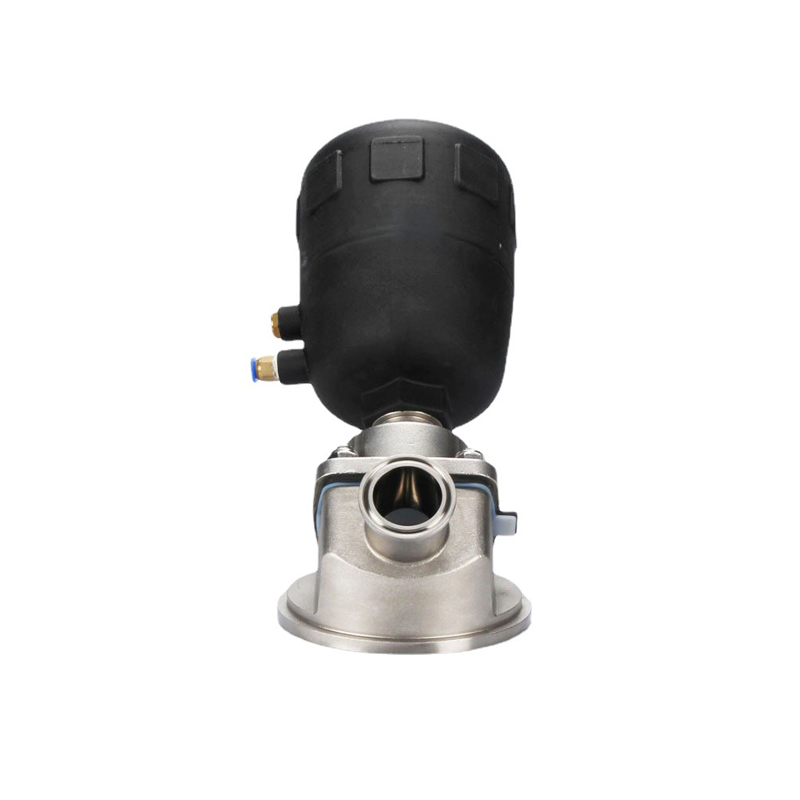

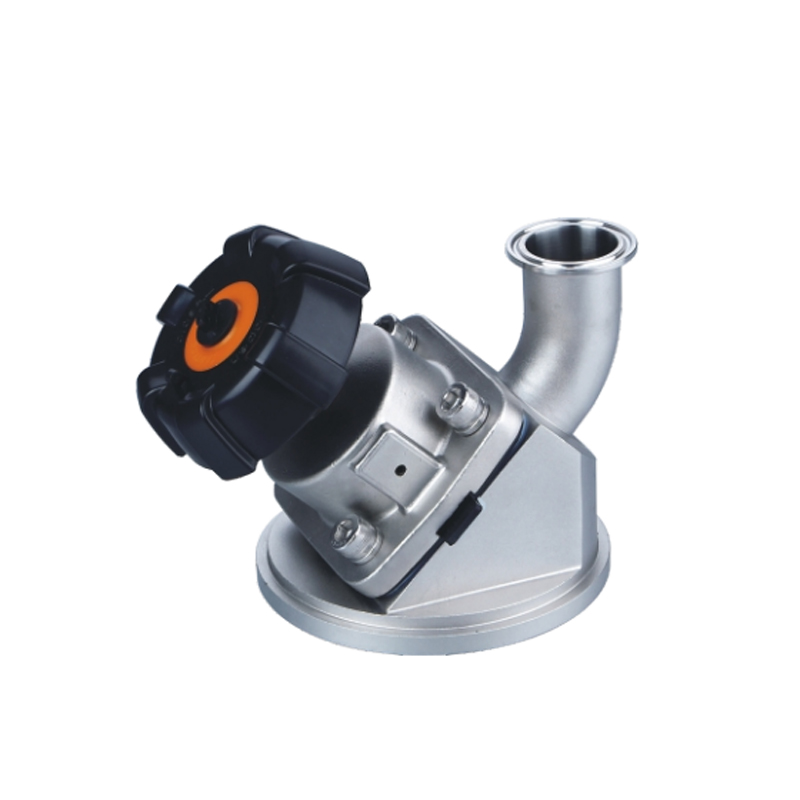

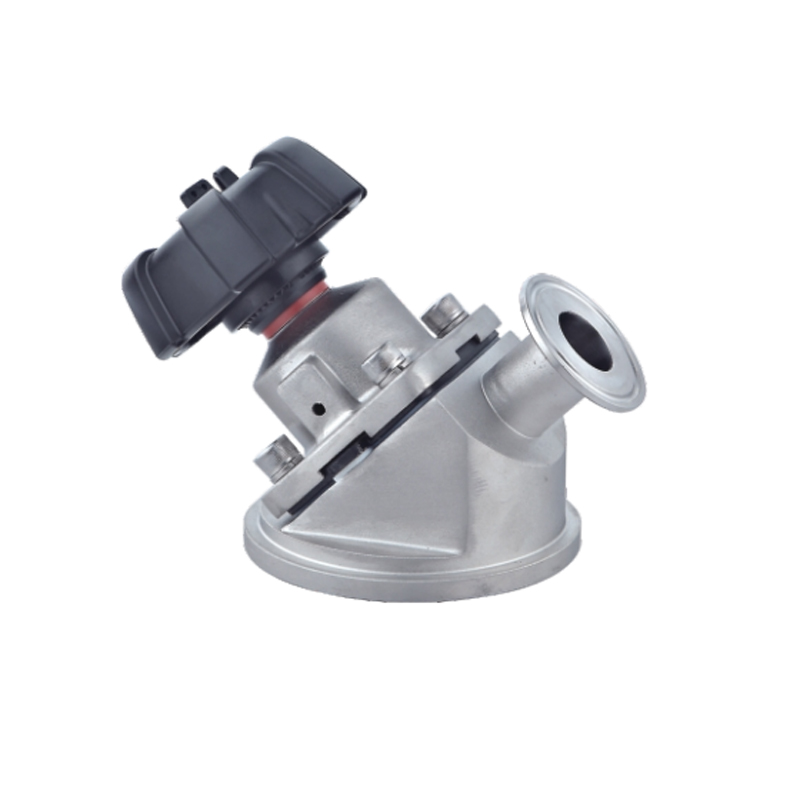

WJGD Tank Bottom Diaphragm Valve
Application
The WJGD series is a sanitary diaphragm valve specially designed for the food, beverage, dairy, brewing and pharmaceutical industries. The valve has been carefully engineered to ensure operation under strict hygiene standards and is suitable for the control of a variety of fluids. The WJGD series performs well in flow control and switching operations and can meet different process needs. Its unique diaphragm structure effectively prevents contamination of the medium and ensures the purity and safety of the product. In addition, the valve's corrosion-resistant materials and excellent sealing performance enable it to work stably in high-pressure and high-temperature environments. Whether it is fluid transportation in the production line or key process links, the WJGD series can provide reliable solutions to help companies improve production efficiency and product quality. When you choose the WJGD series, you will get an ideal valve that combines performance and hygiene.
Materials
Body: AISI-316L
Membrane: EPDM+PTFE or EDPM
The seal materials adhere to the FDA 177.2600 standard. Leveraging proprietary technology, the diaphragm is crafted from a blend of EPDM and PTFE, secured in place with stainless steel bolts. The sealing component that comes into contact with the medium is made of PTFE, which boasts excellent cold resistance, down to -13°F (-25°C), outstanding heat resistance up to 482°F (+250°C), and is resistant to most chemicals. Additionally, it provides superior abrasion resistance against medium flow.
Standard Design
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: butt-welded, sanitary clamp, or others upon request
Body type: T-type tee, U type tee, Mini type, tank bottom type, etc.
Technical Specification
Max. working pressure: 147psi (10bar)
Temperature range: 14 ~ 248℉ (-10 ~ 120℃)), EPDM
Inside polishing: Ra 16-32& micro;in (0.4 ~ 0.8µm)
