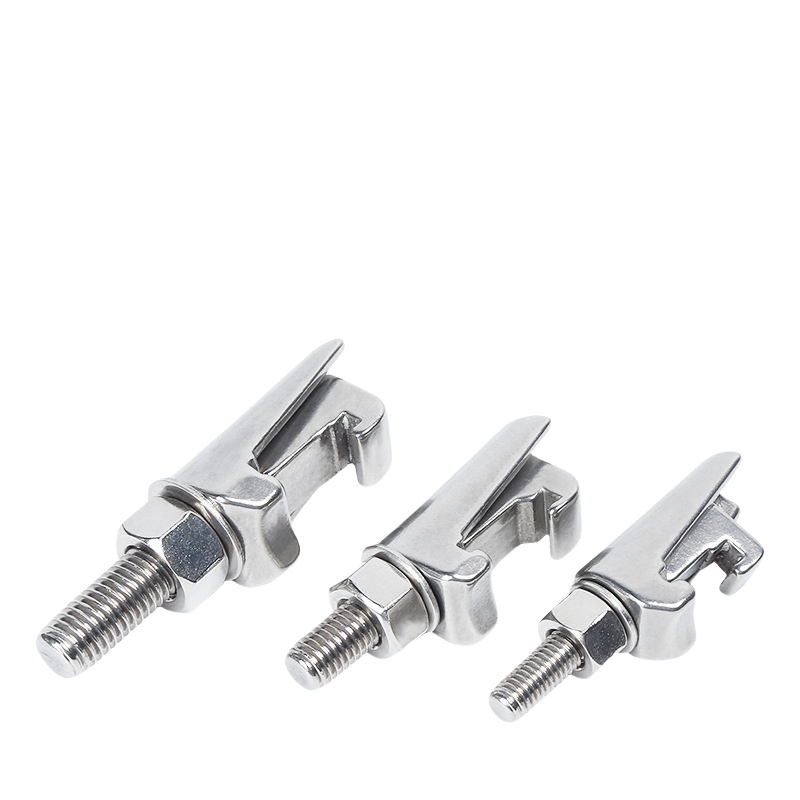

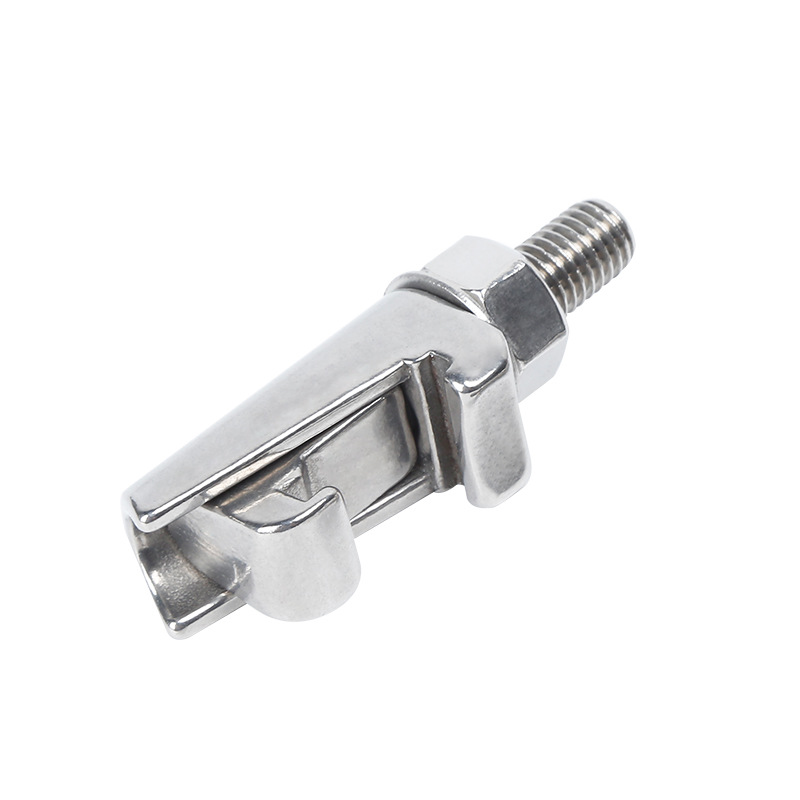

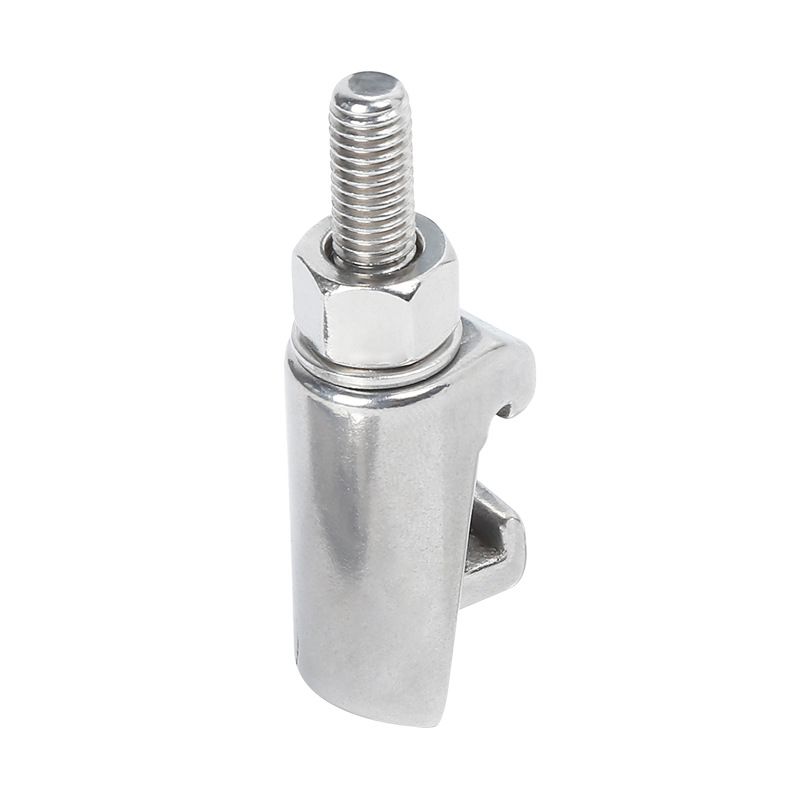

Vacuum SS304 Stainless Steel Clamp ISO Double Claw Clamp

They provide a secure and leak-tight connection, thanks to their double claw design which ensures a firm grip and stability. ISO Double claw clamp is compatible with a variety of vacuum systems and can withstand high levels of vacuum, making them ideal for applications requiring ultra-high vacuum conditions. Additionally, the clamps are made from high-quality materials, ensuring durability and longevity even in demanding environments.

product details

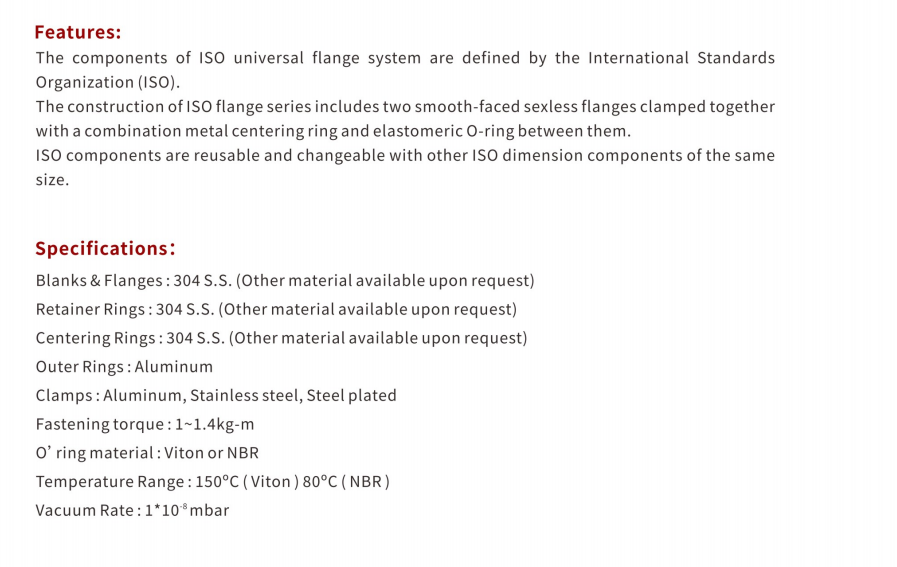

Features

The ISO-KF system embodies a modular approach to constructing piping systems, characterized by its building block methodology. Utilization of ISO components confers several benefits. The standardization of component dimensions facilitates the interchangeability of elbows, tees, crosses, and valves of a specified size. The flanges are designed to be gender-neutral, and the seals are symmetrically constructed, allowing for rotational flexibility of the components. The employment of ISO components expedites system assembly and yields cost efficiencies. Refer to Figure 1 for the ISO dimensions corresponding to flange sizes 10, 16, 25, 40, and 50. These measurements are applicable to ISO-KF flanges with the aforementioned nominal diameters, as referenced throughout this catalog.

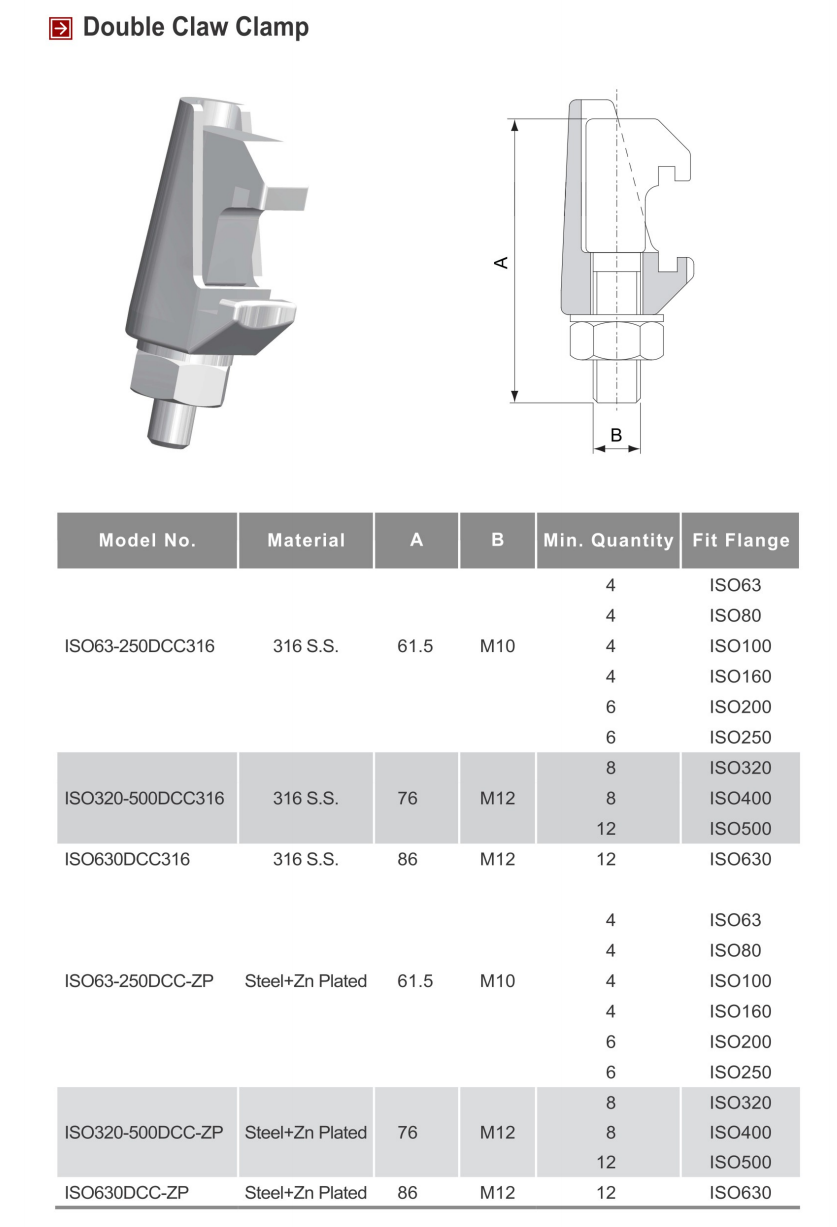

Specifications

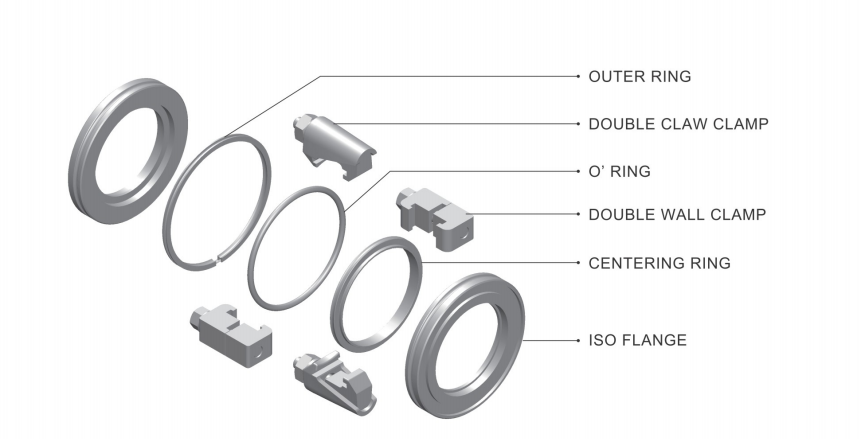

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp
