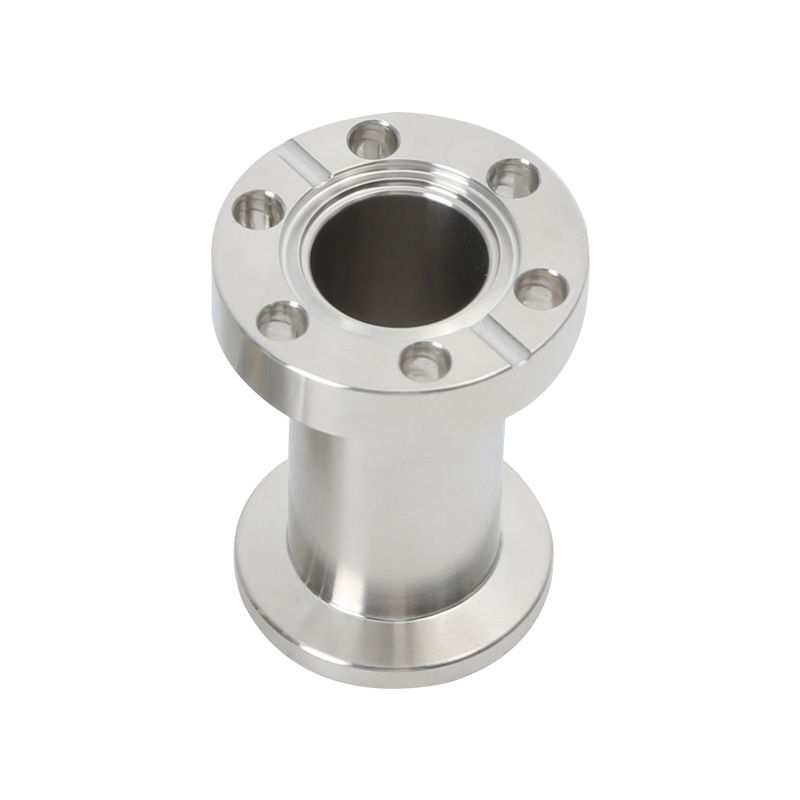

Stainless steel Vacuum Adaptor Pipe Fittings Vacuum Half Nipple

It consists of two parts: one is a pipe with a flange, and the other is a flange with corresponding flange holes. In this way, the two parts can be fixed together by screws or other means to form a stable connection. When the pipe needs to be removed or replaced, it can be easily removed by simply unscrewing the screws.

product details

Features

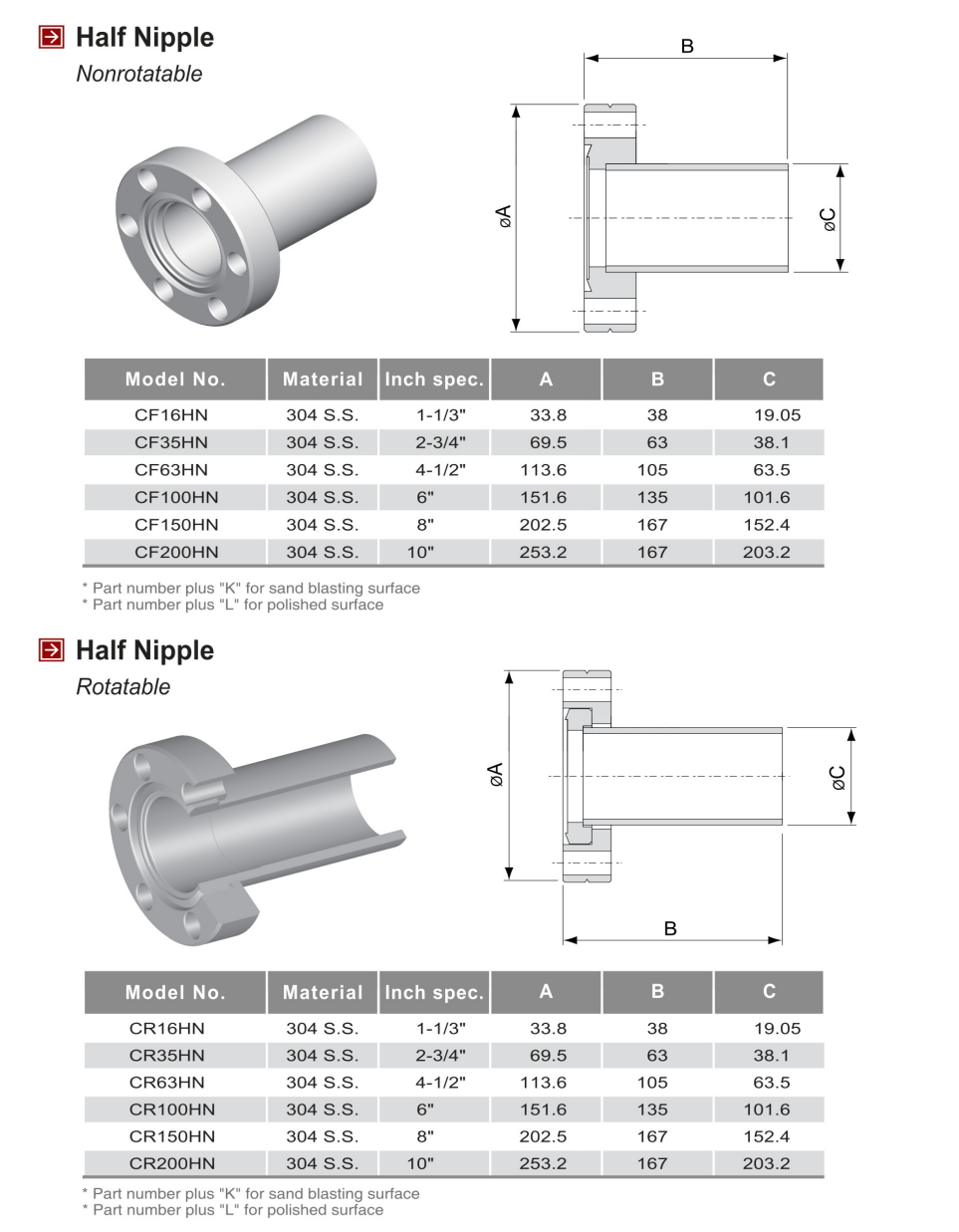

Rotatable Half Nipple is a common component in vacuum engineering and is also part of the ConFlat connection standard. CF is the abbreviation of ConFlat, which refers to a highly sealed connection standard used in vacuum systems. Loose fittings are usually used to connect two pipes or hardware components, providing convenient disassembly and assembly capabilities while ensuring good sealing.

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Specifications

Blank & Flanges:SS 304 (other material available upon request)

Gaskets:OFHC copper or Viton

Bolt: SS304

Temperature range:-200℃~450℃（OFHC copper）

Vacuum Range:1*10-13 mbar

Torque Rating:CF35 and smaller 220kgf-cm

CF63 and larger 360 kgf-cm

Larger or special size available upon request

Application

It is widely used in vacuum systems and can provide reliable high vacuum sealing. They can be used to connect different components such as vacuum pumps, vacuum chambers, sensors, valves, etc., and effectively reduce the risk of leakage, ensuring the stability and efficiency of system operation
