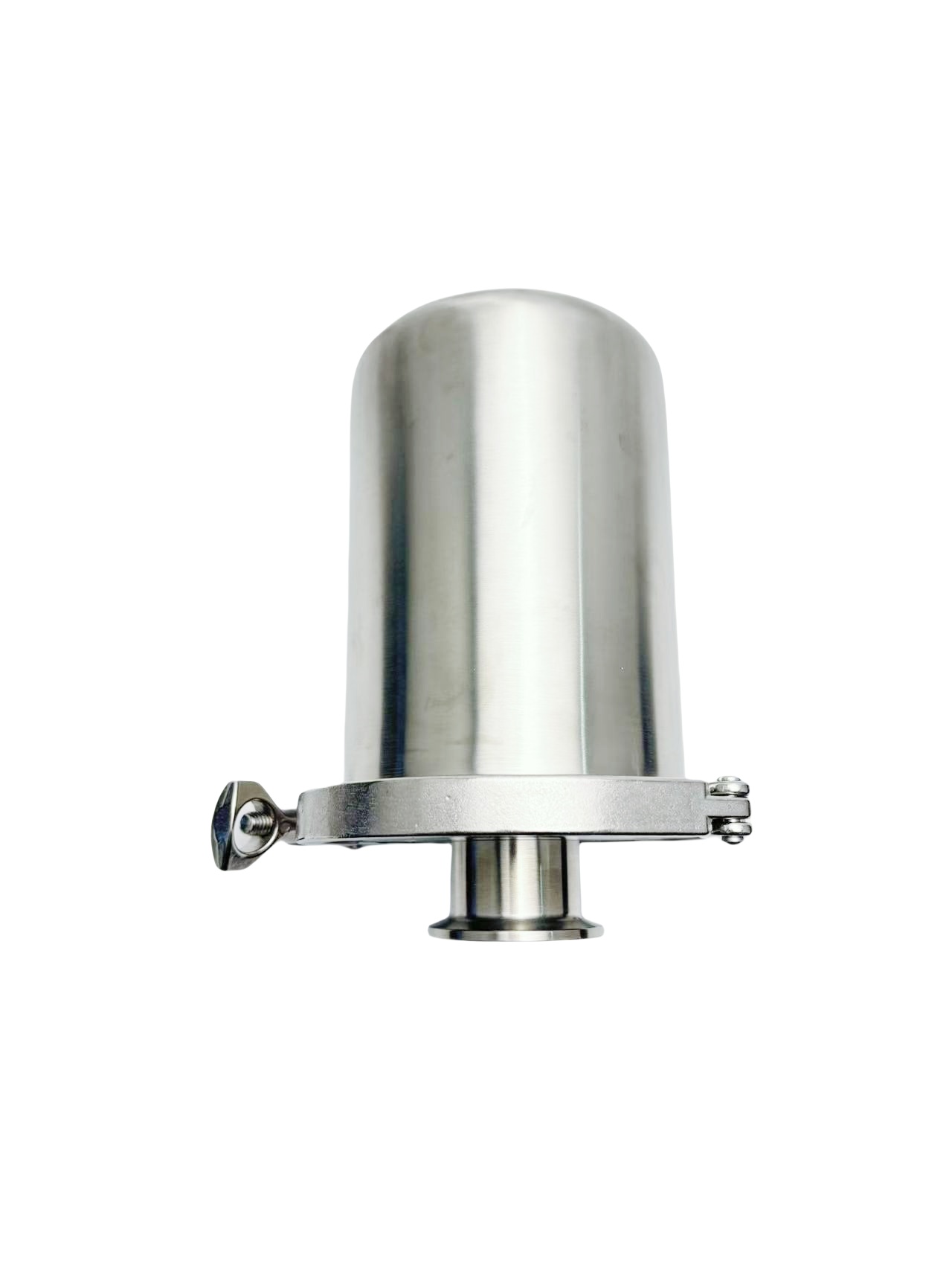

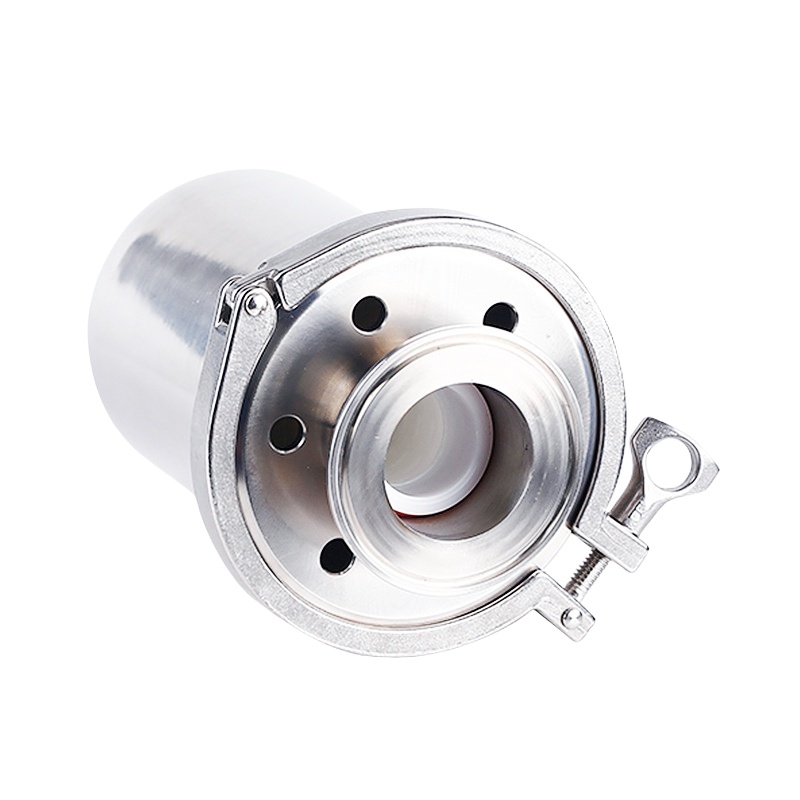

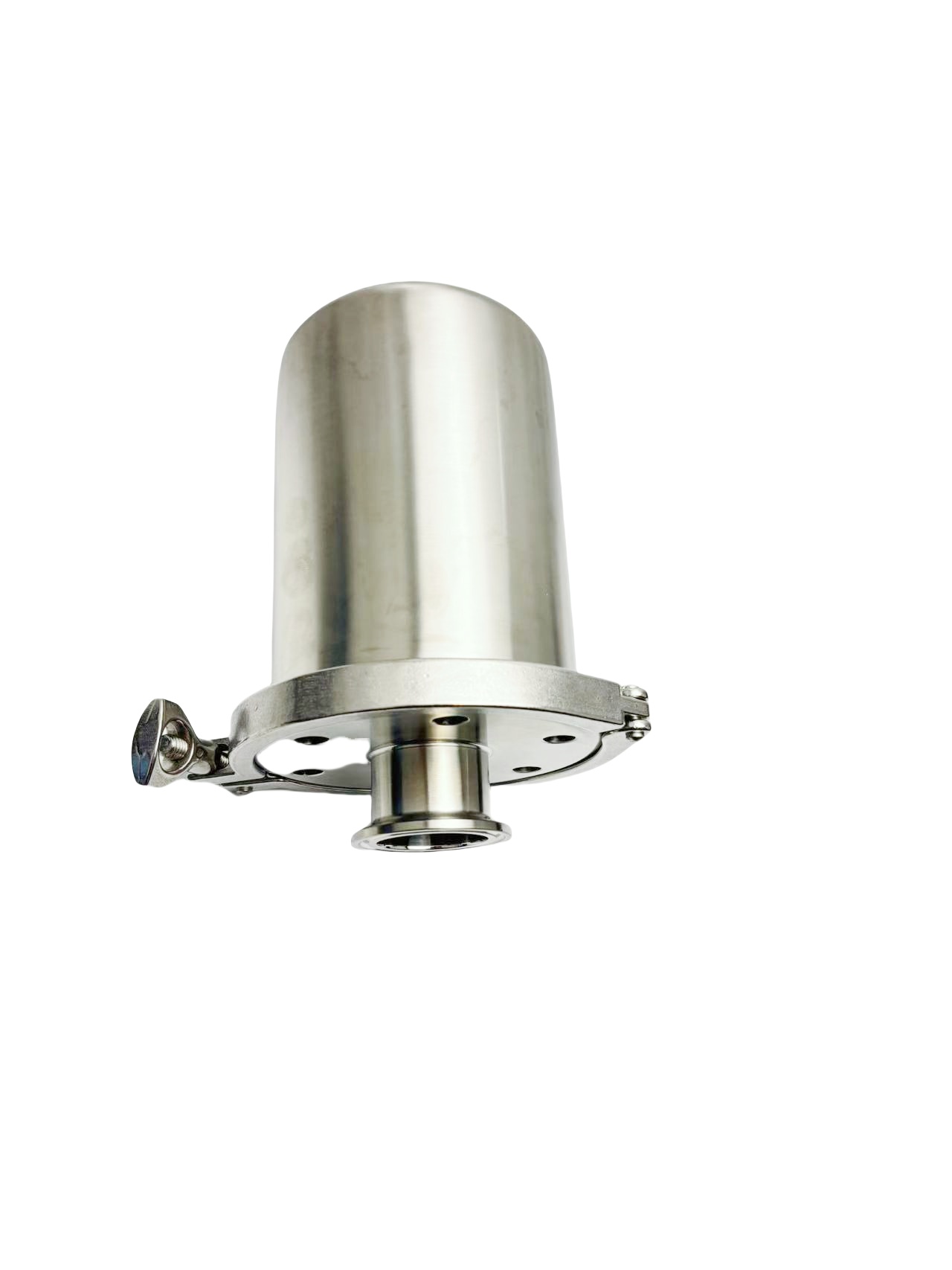

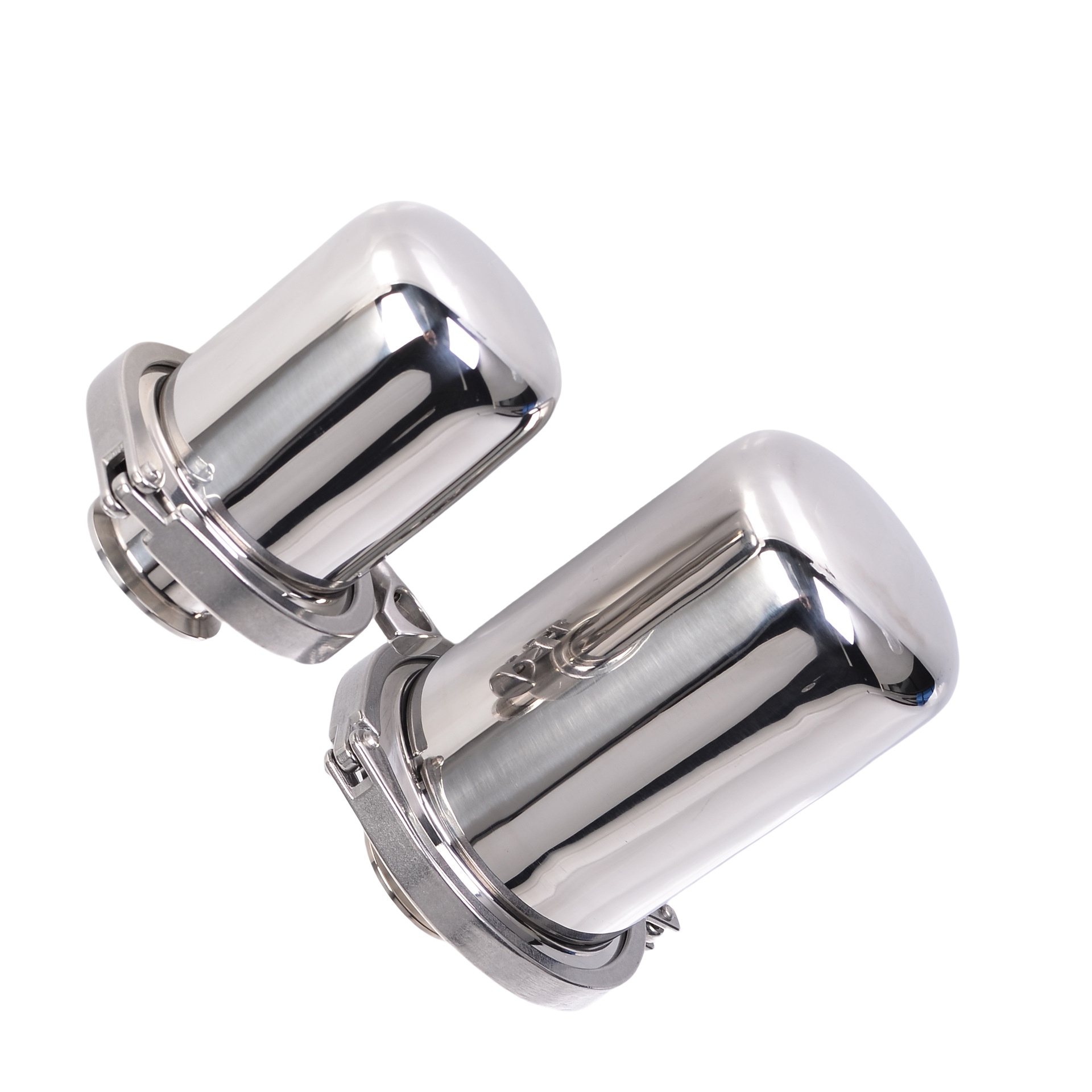

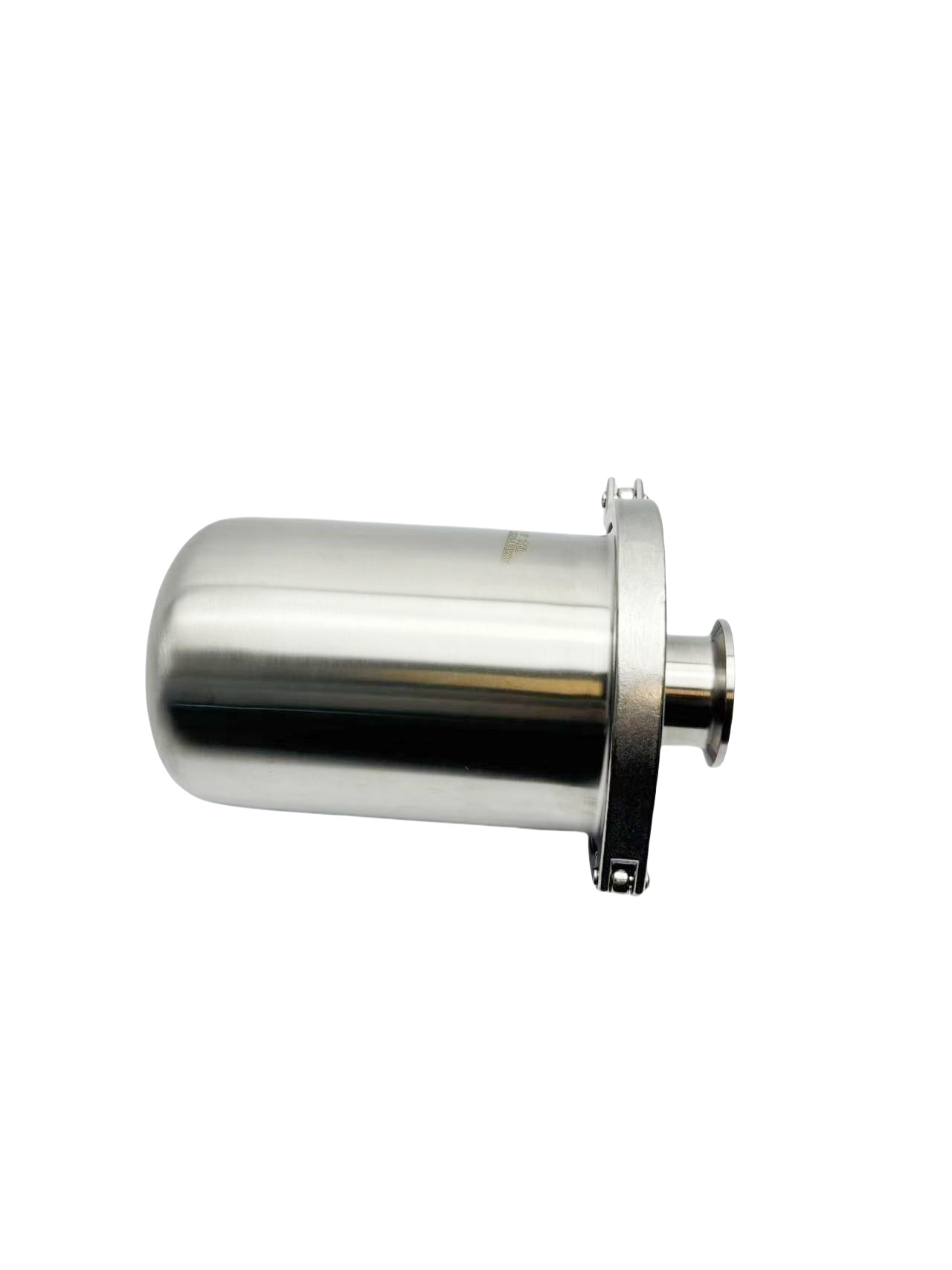

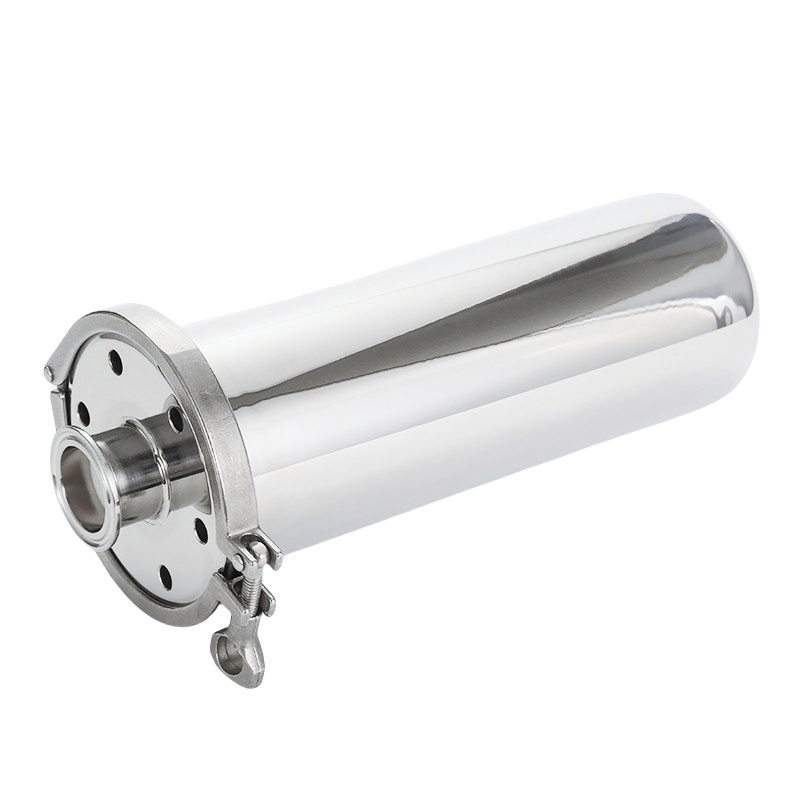

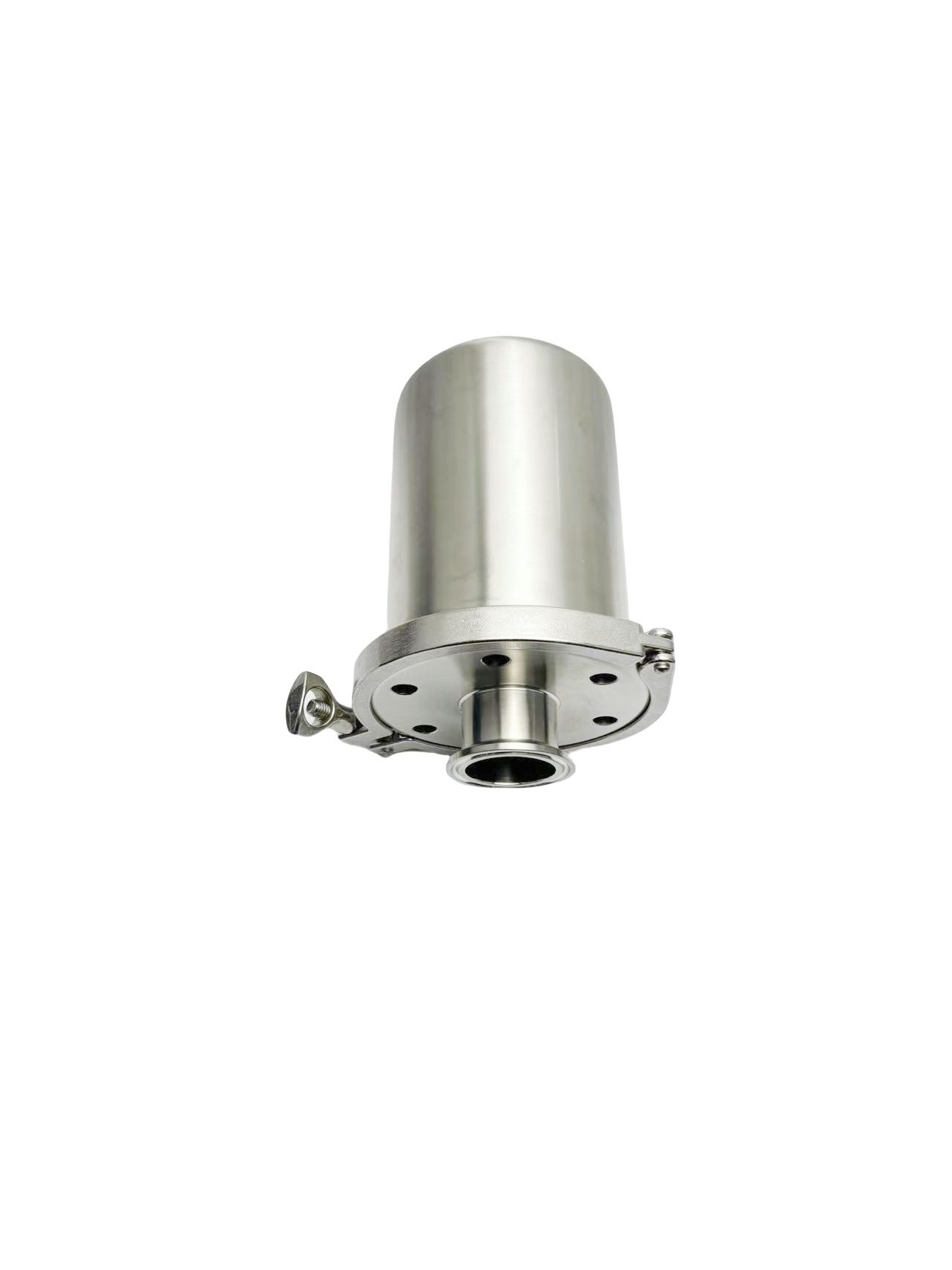

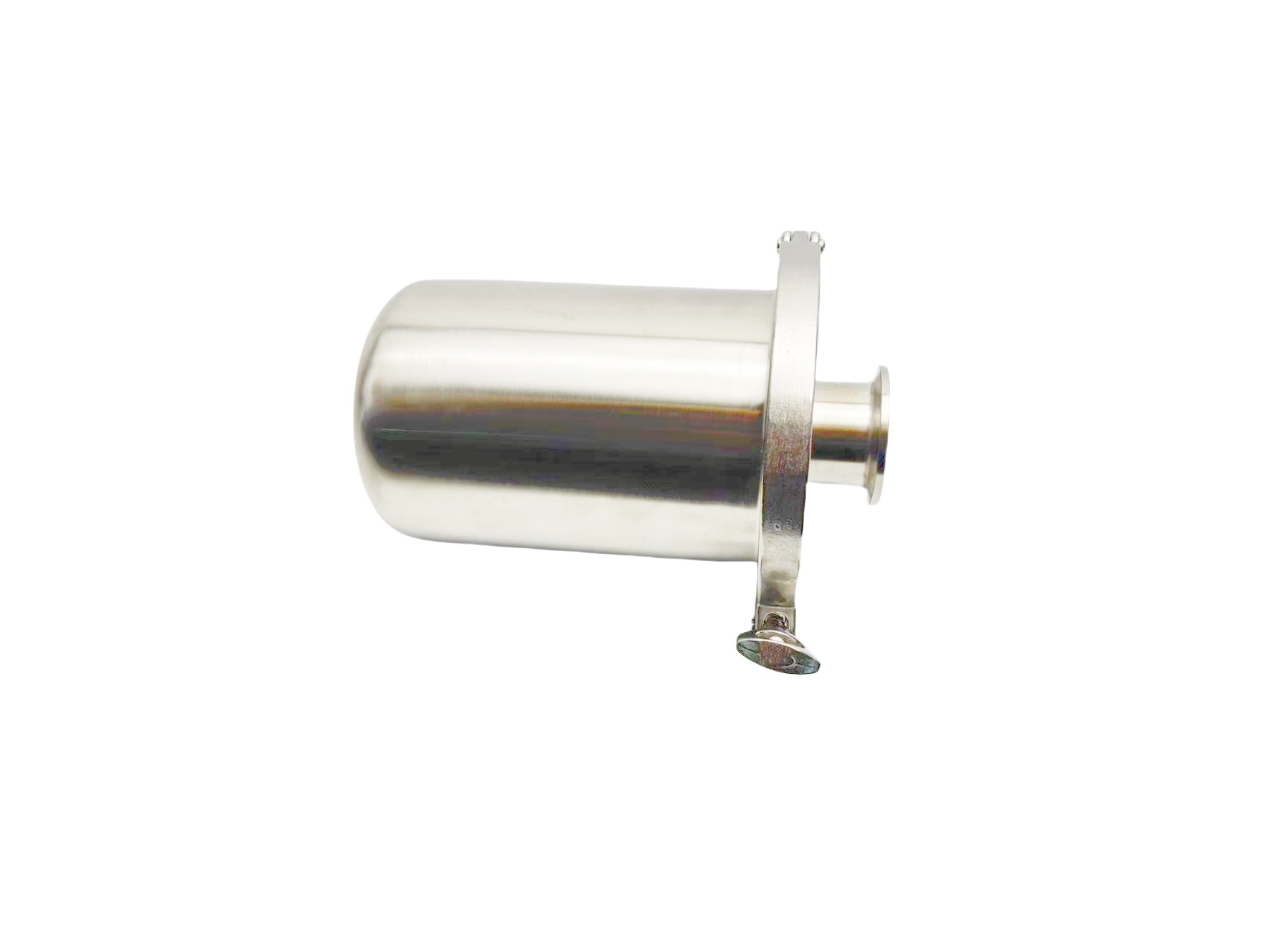

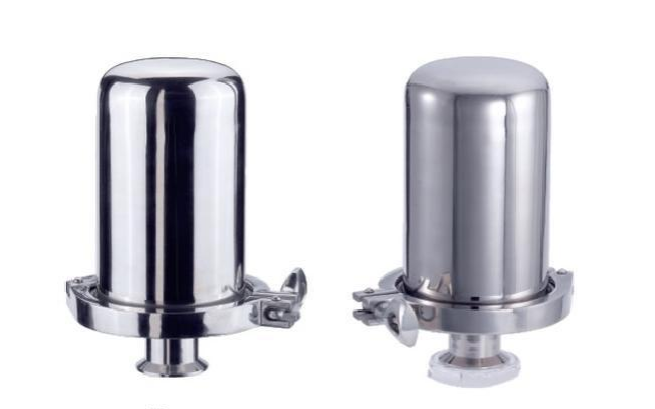

Stainless Steel Sanitary TC Air Breather Valve

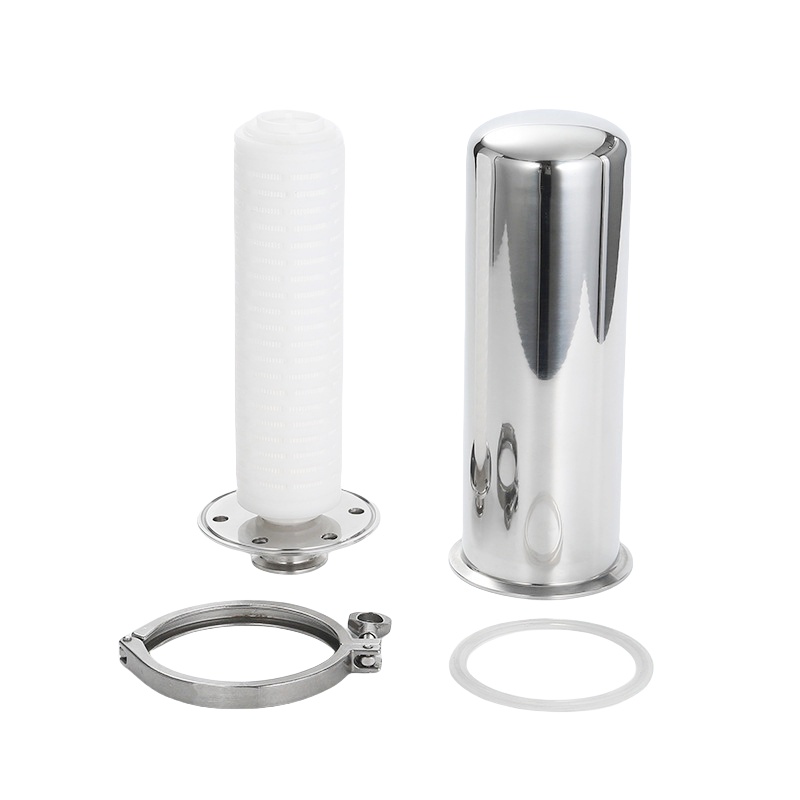

Tank Air breather is a sanitary grade stainless steel air breather, with a clamp quick installation design that is easy to disassemble and maintain. 0.22 μ m high-precision PP filter element efficiently intercepts bacteria and ensures a sterile environment inside the tank. Internal and external mirror polishing, no dead corners and easy to clean. Support customization of 2.5/5-inch and 222/226 interfaces, suitable for various fermentation tanks and tank breathing ports.

Specifications : 2.5 “, 5 “,10”

 Material : Stainless steel 304 material, built-in filter element, PP filter element (polypropylene), etc. The price of the filter element varies depending on the environmental medium requirements.

Process: Internal and external mirror polishing, bright and clean,

Connection Method : Clamp quick installation connection

Application Scope: Used for filtering air breathing in tank.

Function: It can effectively reduce the pressure inside the tank pipeline and purify the air

Filter parameters:

Filter material: Polypropylene film (PP) filter cartridge,

Filter precision: 0.22um, 0.45um

Filter cartridge length: 2.5 inches, 5 inches

The filter interface methods include: 222 (flat mouth type), 226 (fin type)

Stainless steel shell parameters:

Inner surface: Ra0.2um

External surface: inner and outer mirror polishing treatment, matte treatment

Pressure range: ≤ 0.6Mpa

Filter cartridge: standard quick installation, flanged quick installation

Material: 304 stainless steel, 316L stainless steel

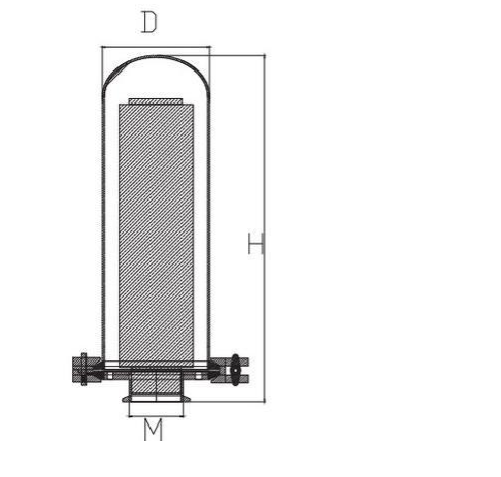

Size, height, wall thickness, and pressure can be customized according to customer requirements

       Basic configuration: Stainless steel shell+PP filter element (0.45 μ m, 222 interface)

       Upgraded configuration: PP filter element 0.22 μ m/226 interface/higher surface finish/customized size

      Optional options: PTFE hydrophobic filter element (resistant to high temperature steam), silicone sealing ring, pressure gauge interface
