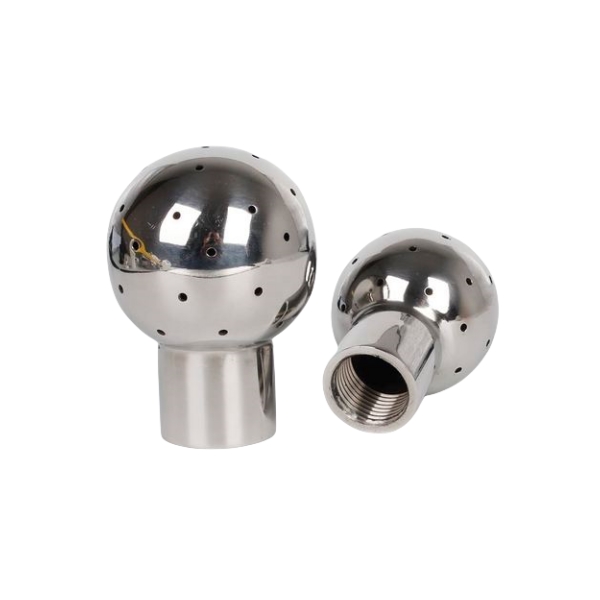

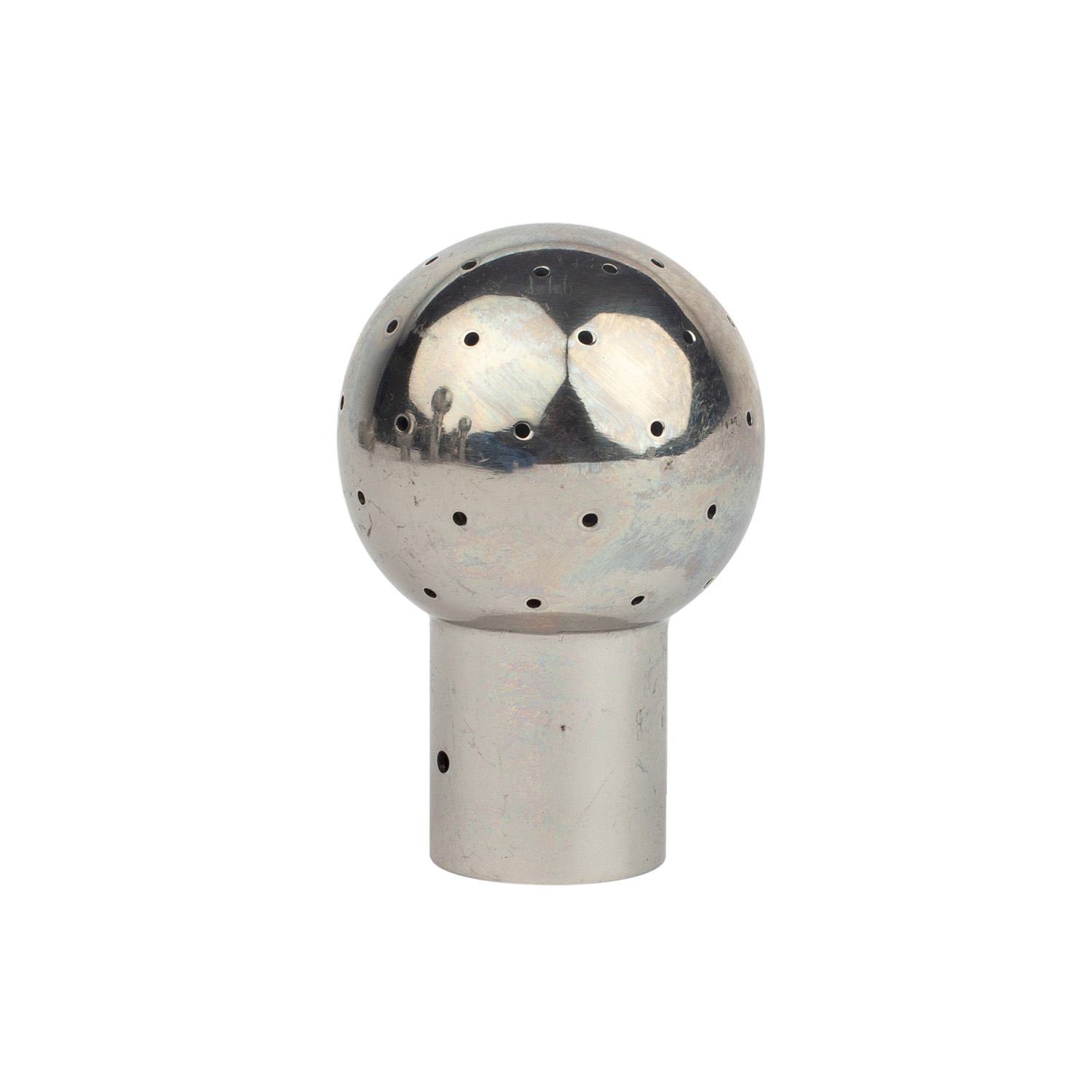

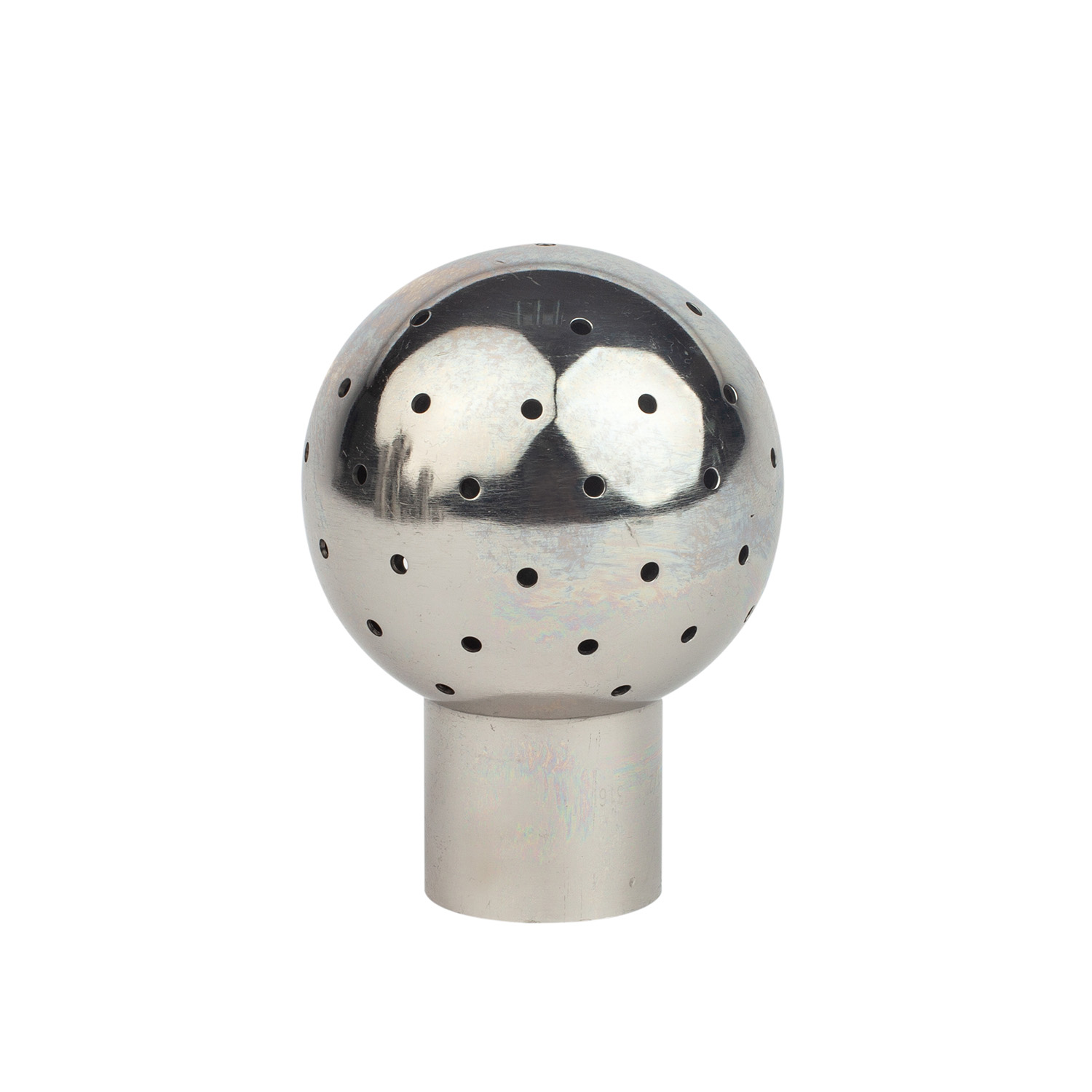

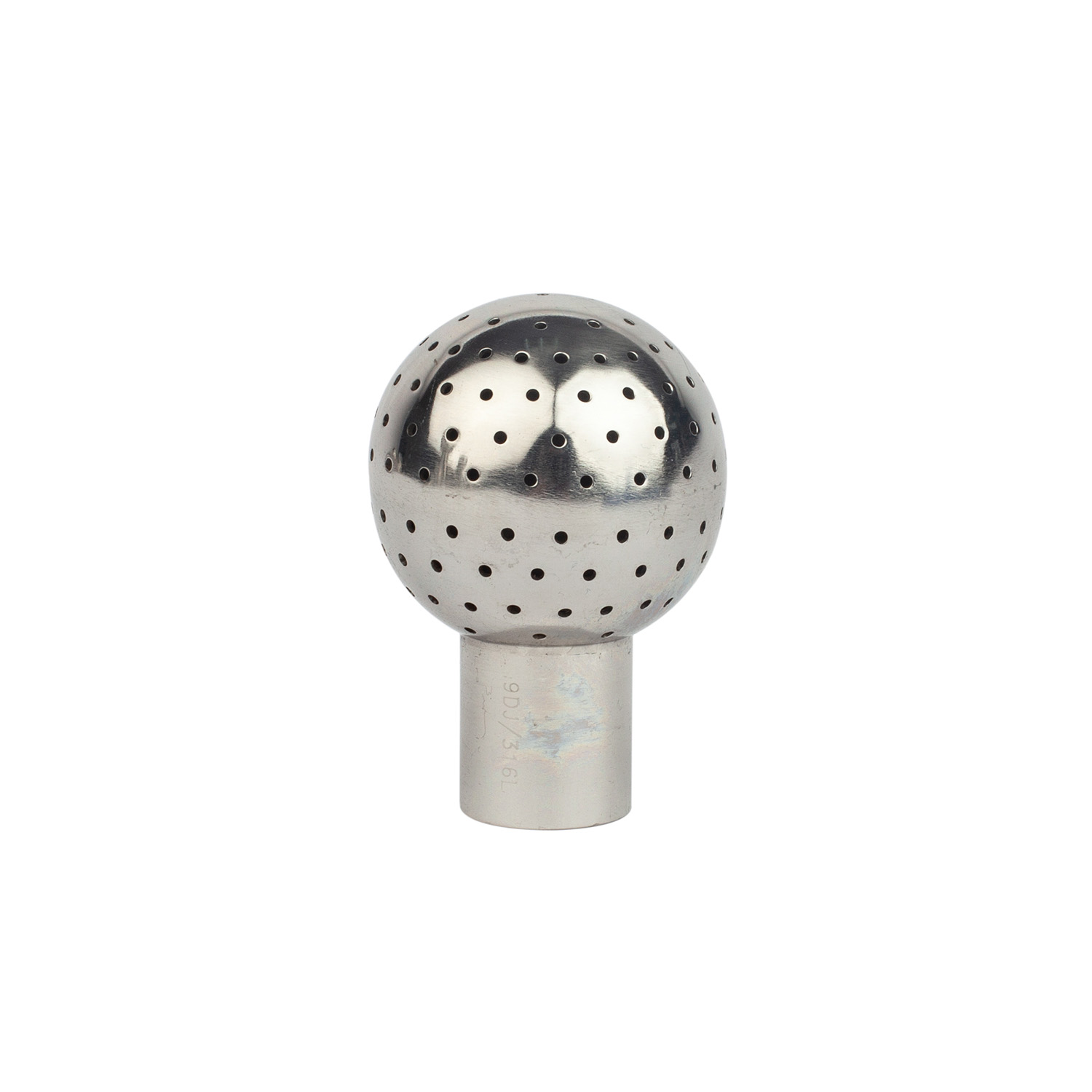

Stainless Steel Sanitary Polished Fixed Spray Ball for Tank

The stainless steel spray ball serves as a pivotal element in the cleaning and sanitation processes of industrial tanks and vessels, ensuring compliance with hygiene standards. This static spray ball is predominantly utilized in applications requiring high flow rates and low pressure to effectively sanitize tanks.

    Application

    sanitary fixed spray ball is designed for general CIP Applications.

    Materials

    Body Materials: AISI-304 or AISI-316L

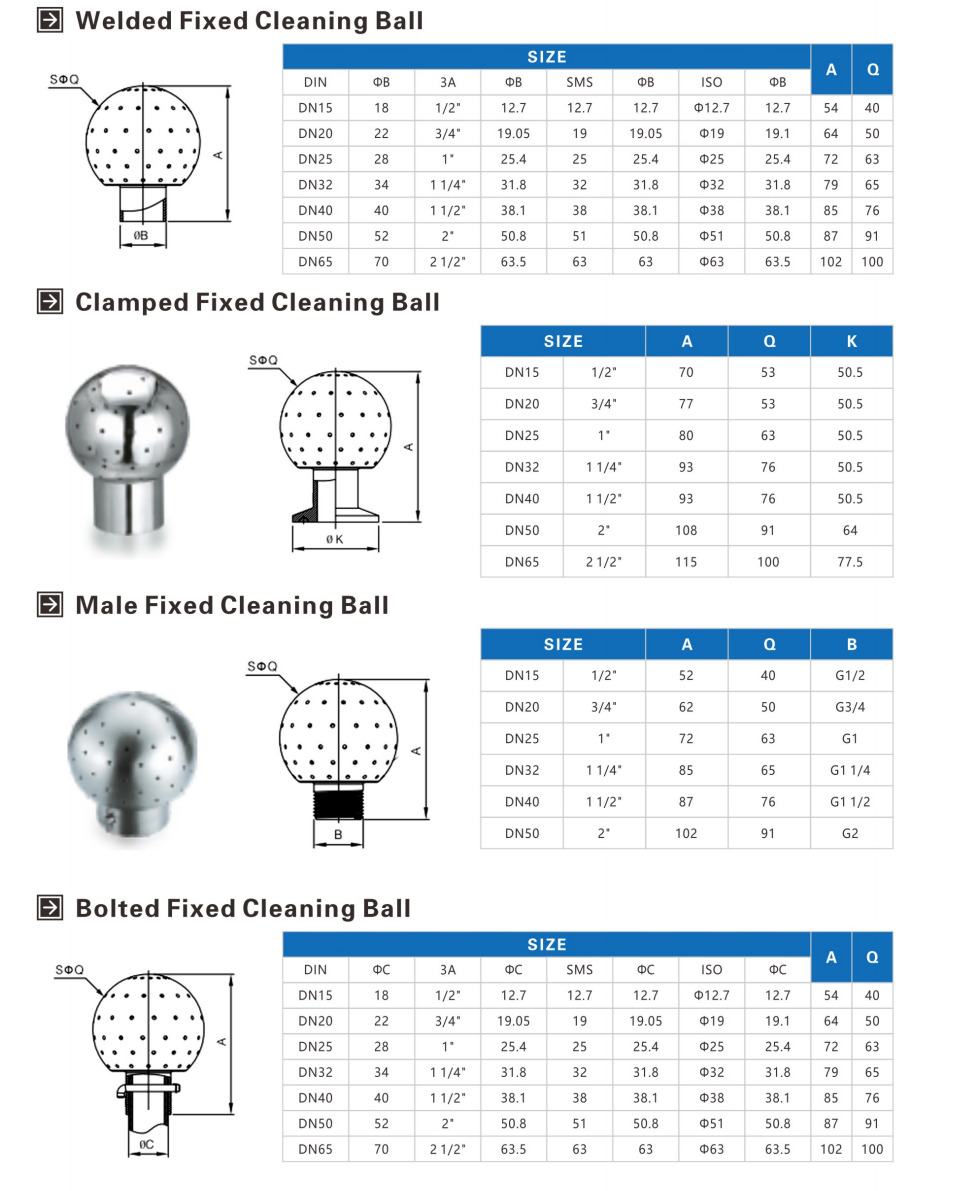

    Standard Design

    Available in size from 0.5"-2.5", DN15-DN65
    Standards: DIN, SMS, ISO / IDF
    End connections: butt-welded, clamp, thread, clip-on

    Technical Specification

    Max Temperature: 284℉ (140℃)
    Working Pressure: 14.5-50Psi (1-3.5Bar)
    Cleaning Radius: 3.2-10ft
    Finished: mirroir or stain
    Stainless Steel Sanitary Polished Fixed Spray Ball for Tank
