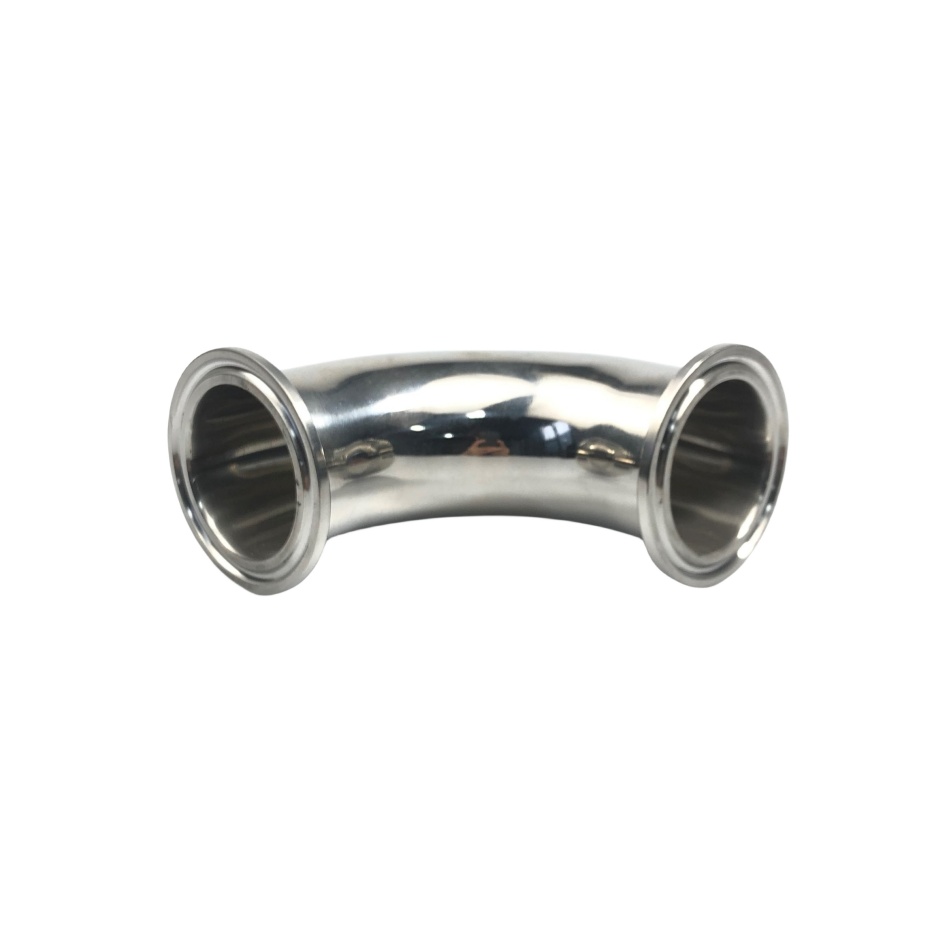

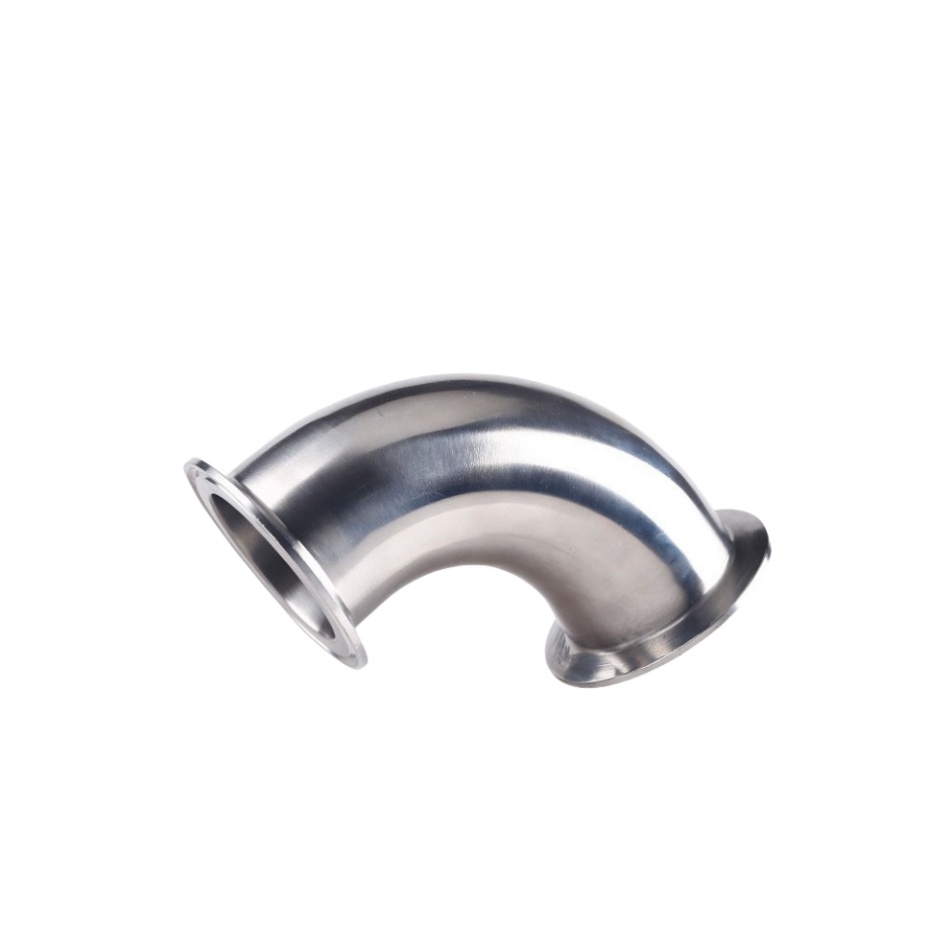

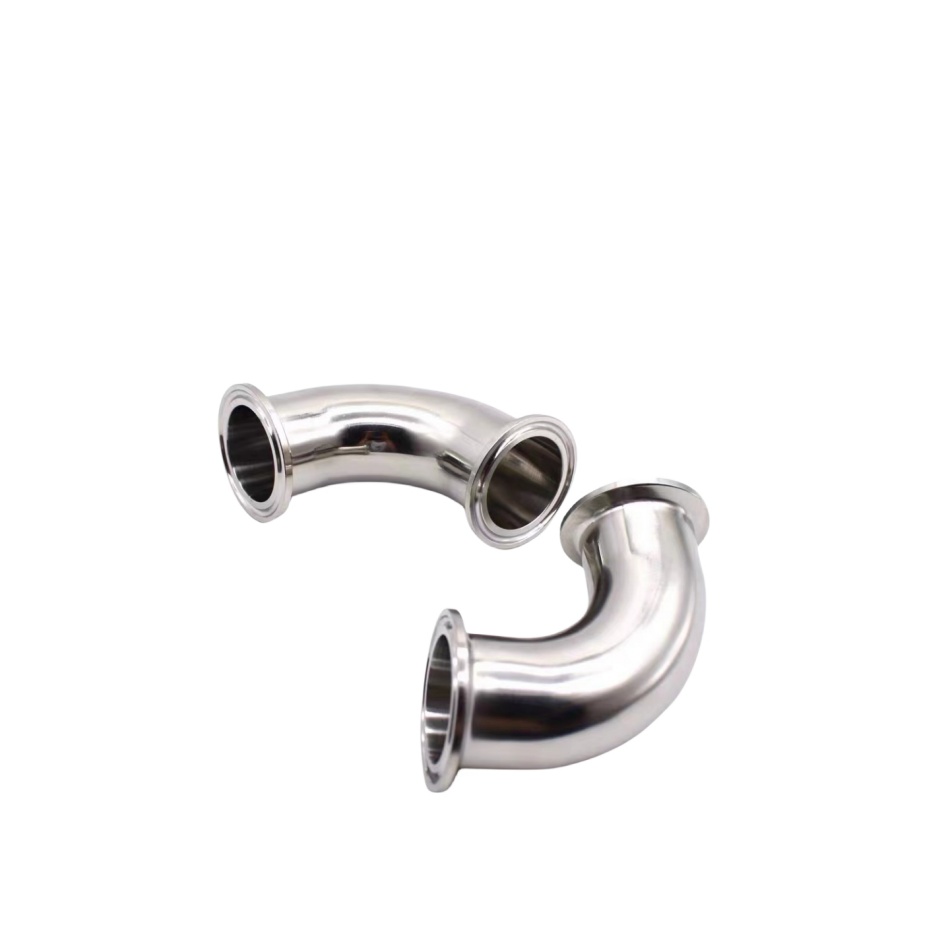

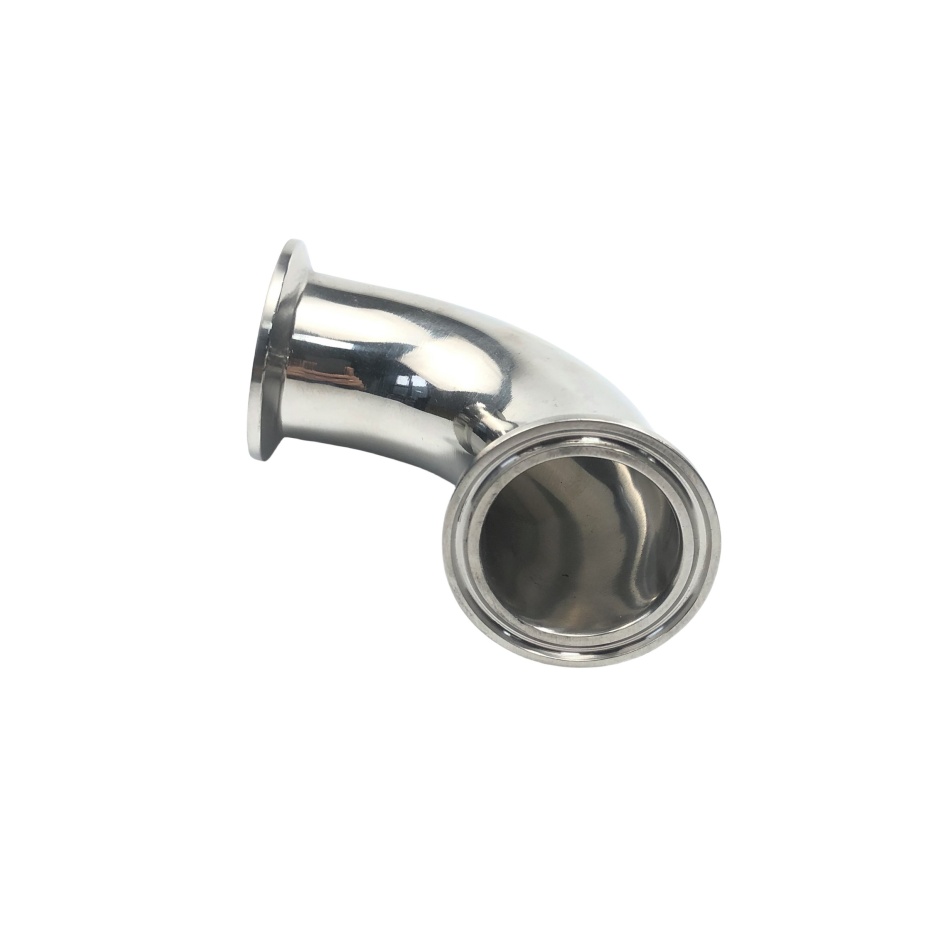

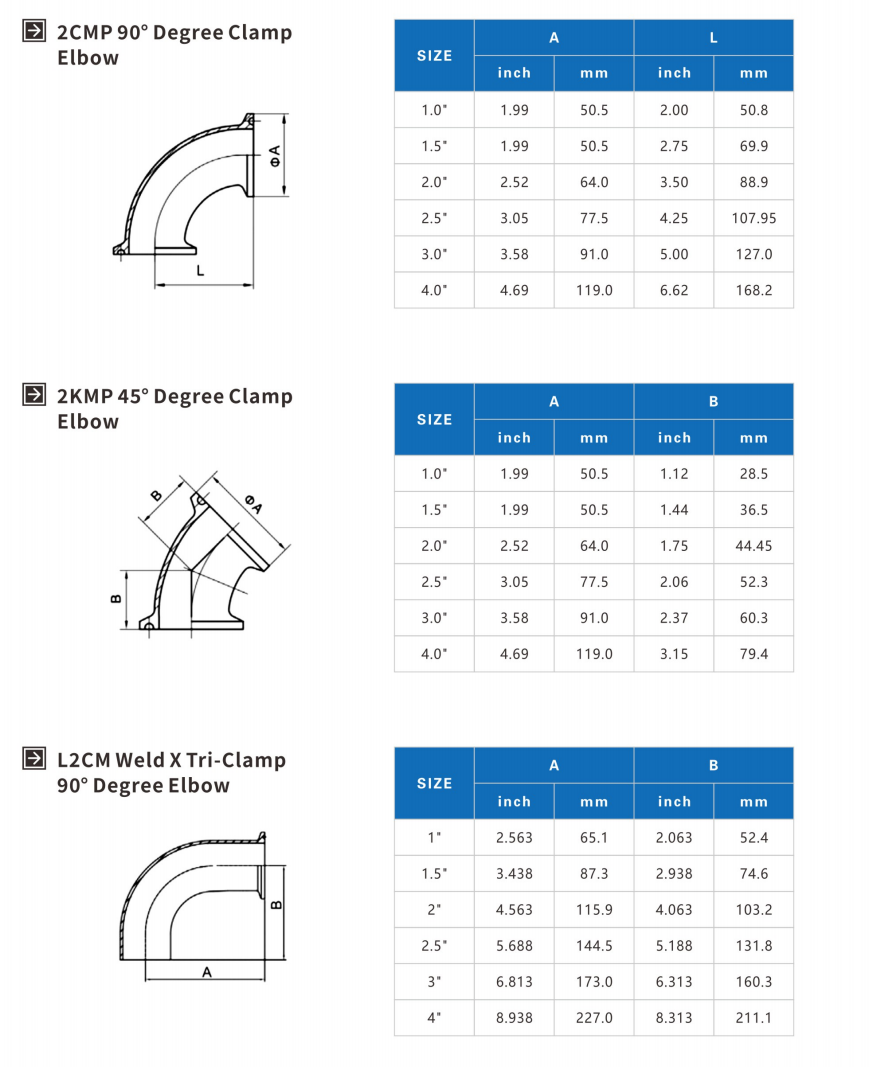

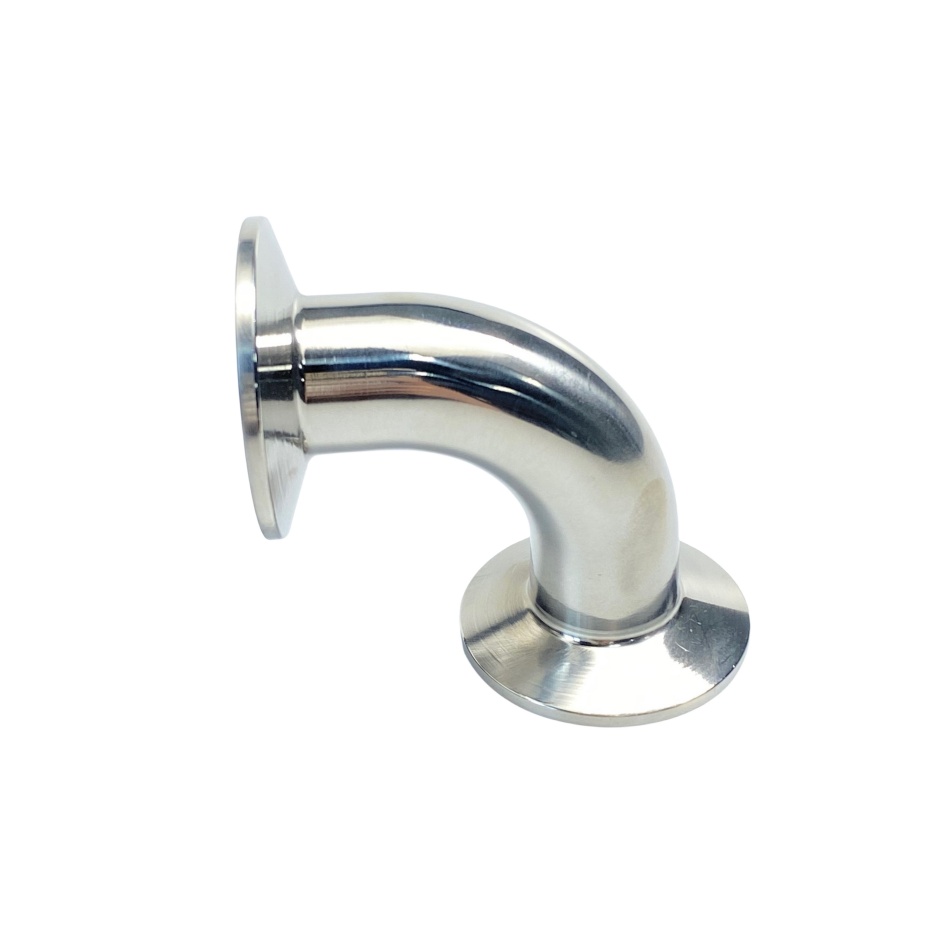

Stainless Steel Sanitary Grade DIN11851 SMS-2CMP 90D Clamped Pipe Bend
Application
Stainless steel elbow is a kind of pipe fittings, connecting with two pipes, changing the direction of the flowing direction. Normally there are 3 common angles, 45degree, 90degree, 180degree, but there are aslo some elbows are which can be 60degree, 70degree as per the requirement from the pipeline. These are extensively utilized in industries such as food processing, dairy, brewing, and pharmaceuticals.
Material
Body: AISI 304 or AISI 316L
Standard Design
Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
Raw material standard:ASTM A-269,A-270
Size available: 1/2"-8" or DN10-DN200
Connection:Welded end,Tri-clamp,Male
Features
The sizes fit for stainless steel sanitary tubing and piping dimensions
Max. operating pressure rating of 10bar for small sizes
Chemical components carrying in the materials meet the requirement from hygienic and sanitary industry
The elbows with straight end is designed for capacity of orbital welding
Easy for welding free from rust and corros
