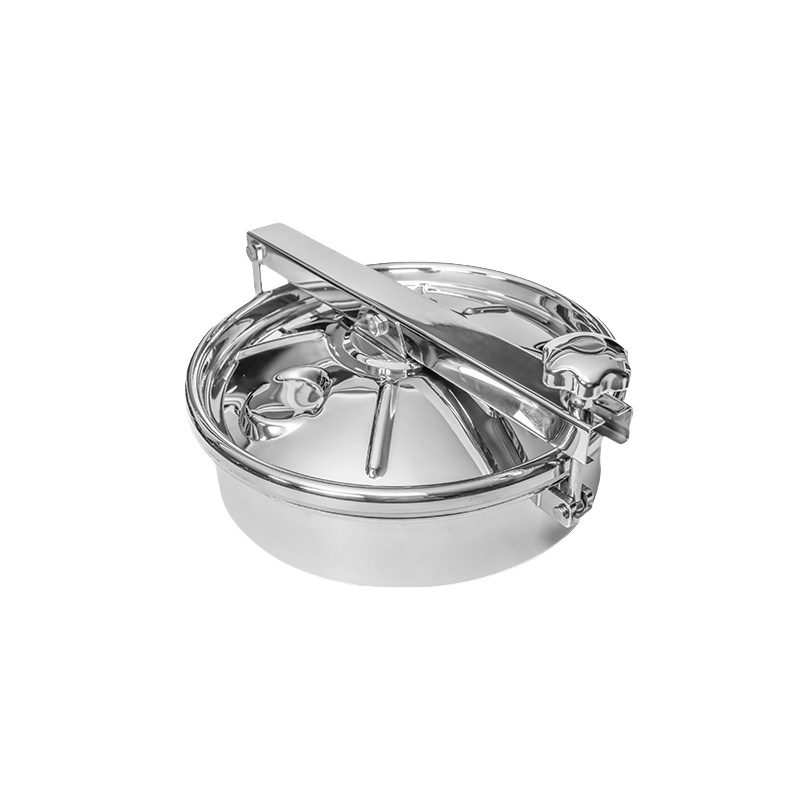

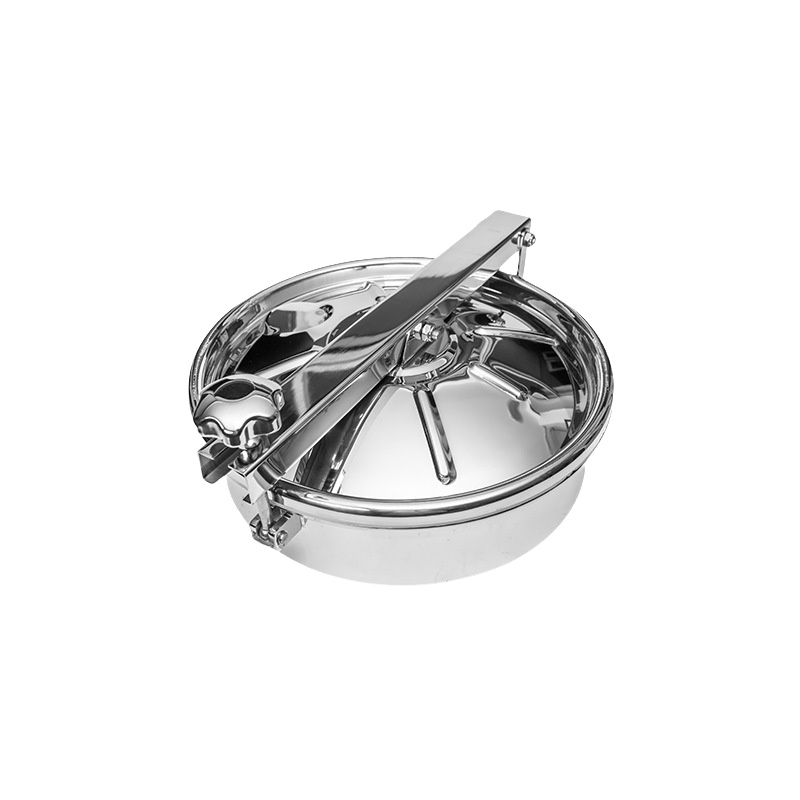

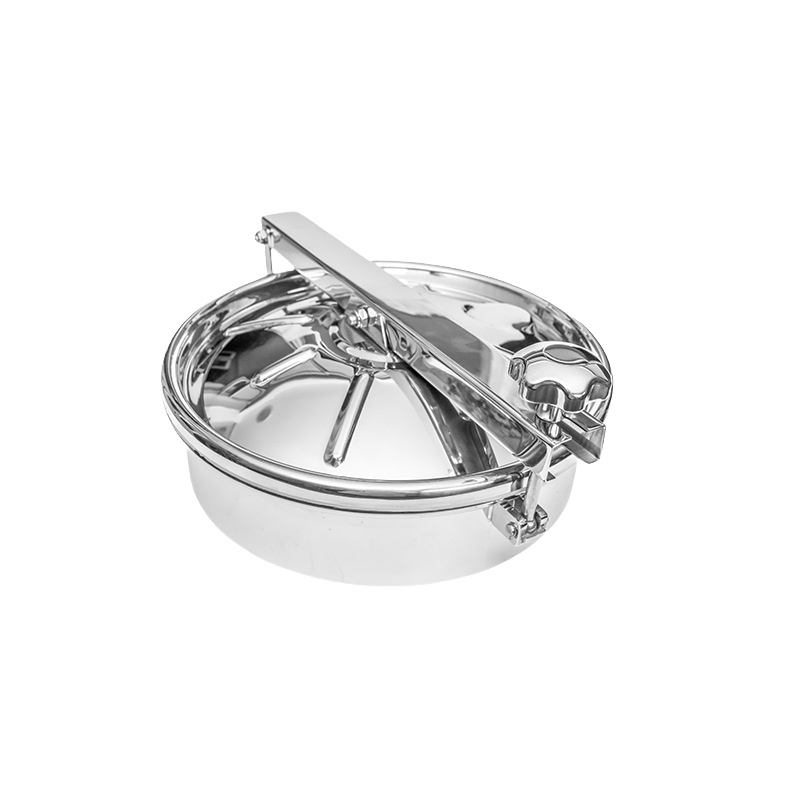

Stainless Steel Sanitary Food Grade Round Outward Non Pressure Round Tank Manway Manhole Cover with EPDM Gasket

Non-pressure manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access to the interior of the tank required.

    Contact us
    product details

    Materials

    Body Materials: AISI-304 or AISI-316L
    Handwheel: Nylon or SS304
    Gasket Material:Silicon, EPDM, FRM
    Manhole seat and gasket  comply with FDA 21CFR177.2600

    Standard Design

    Available in size from 200mm to 600mm
    Standard height: 100mm, or specific height upon requirement
    Standard thickness: 3mm
    Outward Opening
    Self-sealing double lip seal to prevent fluids spraying out.

    Technical Specification

    Max. pressure: no pressure
    Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon
    Surface treatment: mirror inside, stain or mirror outside

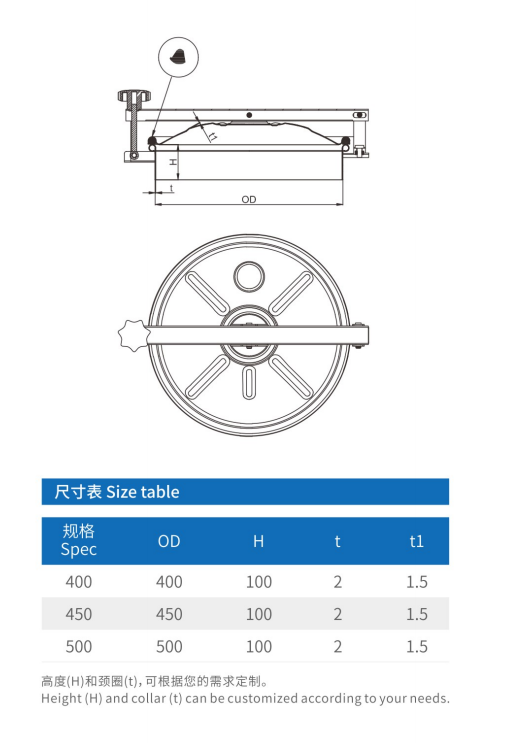

    Non-Pressure Manhole Cover
