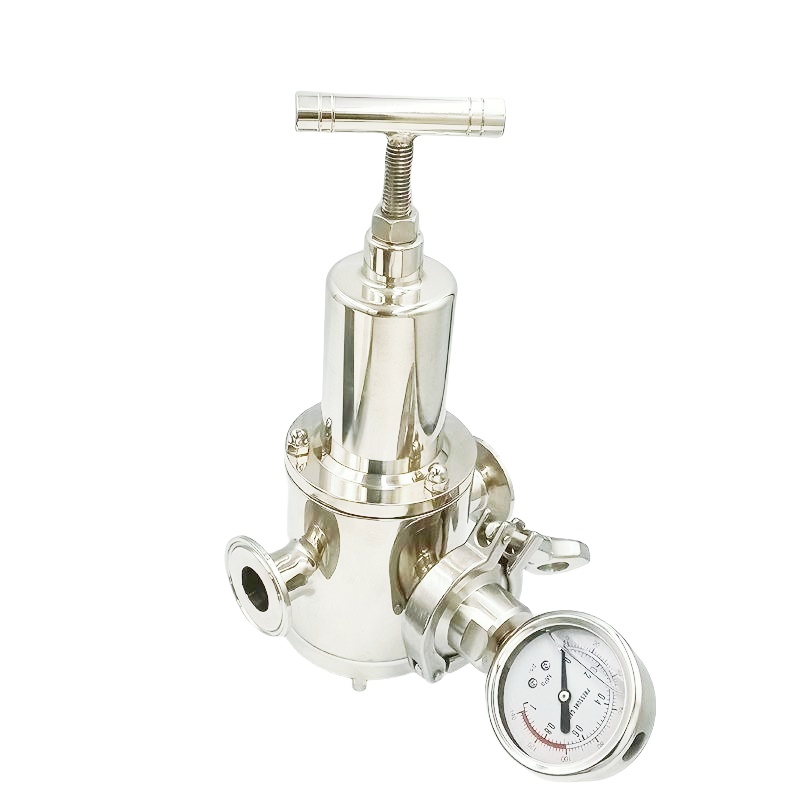

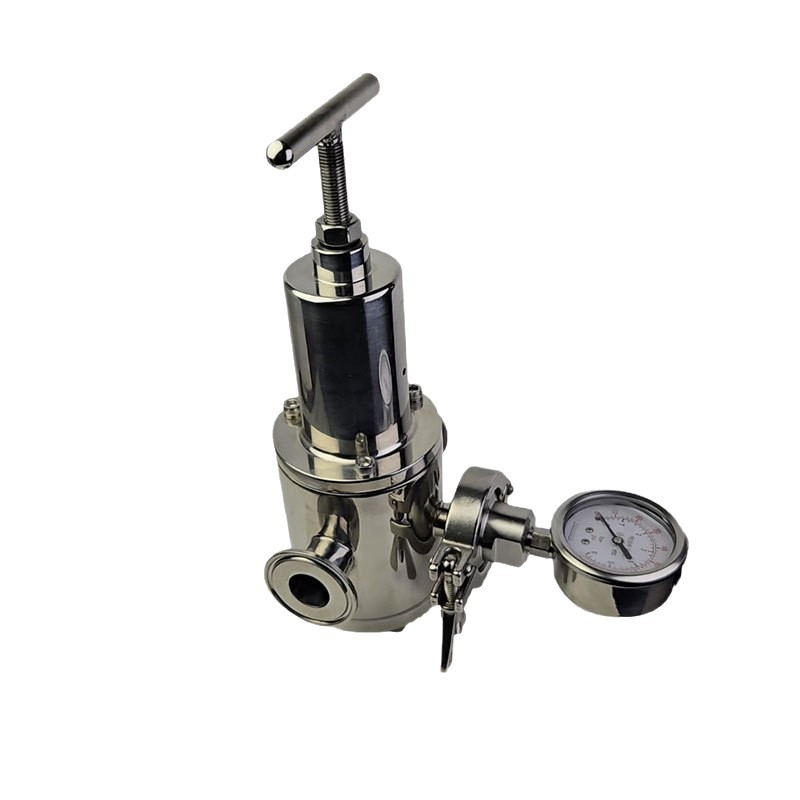

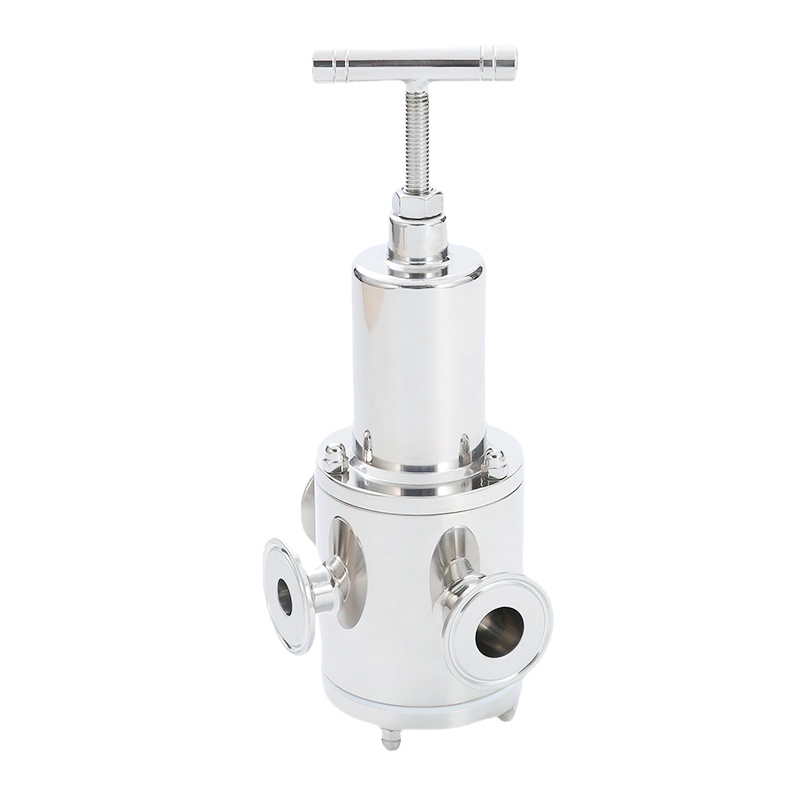

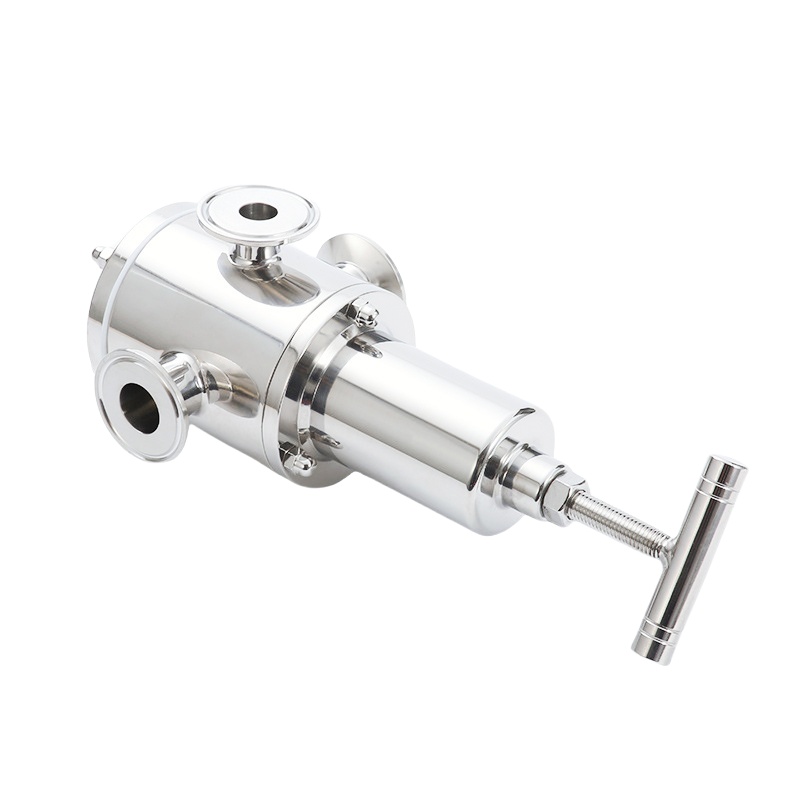

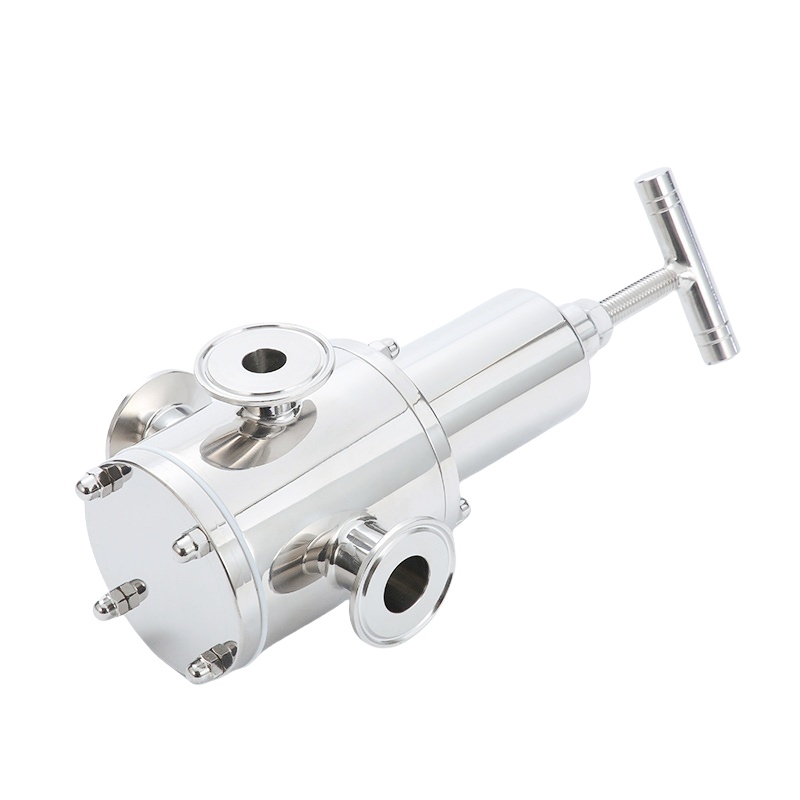

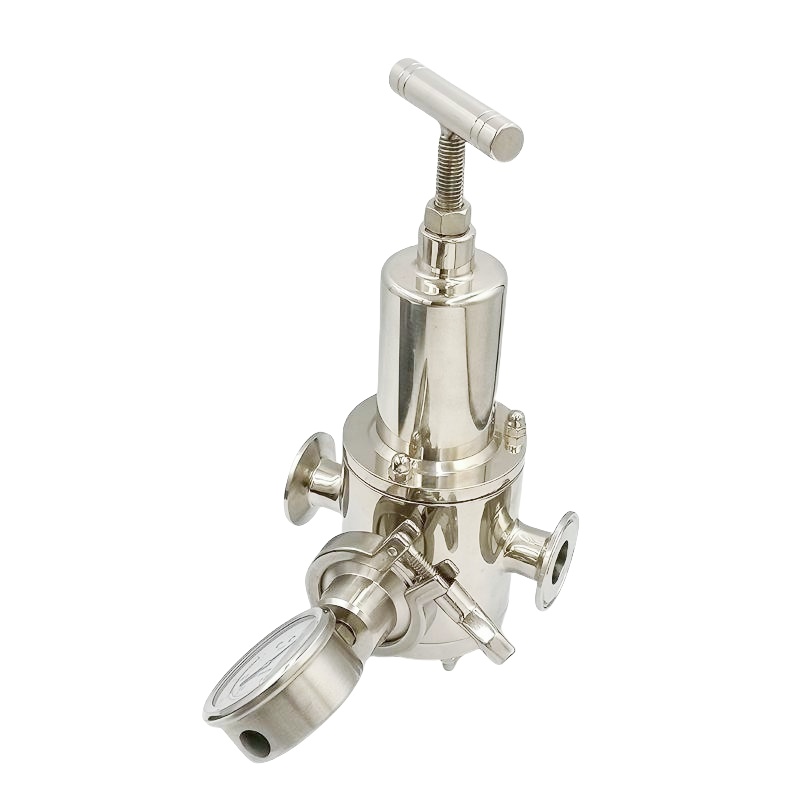

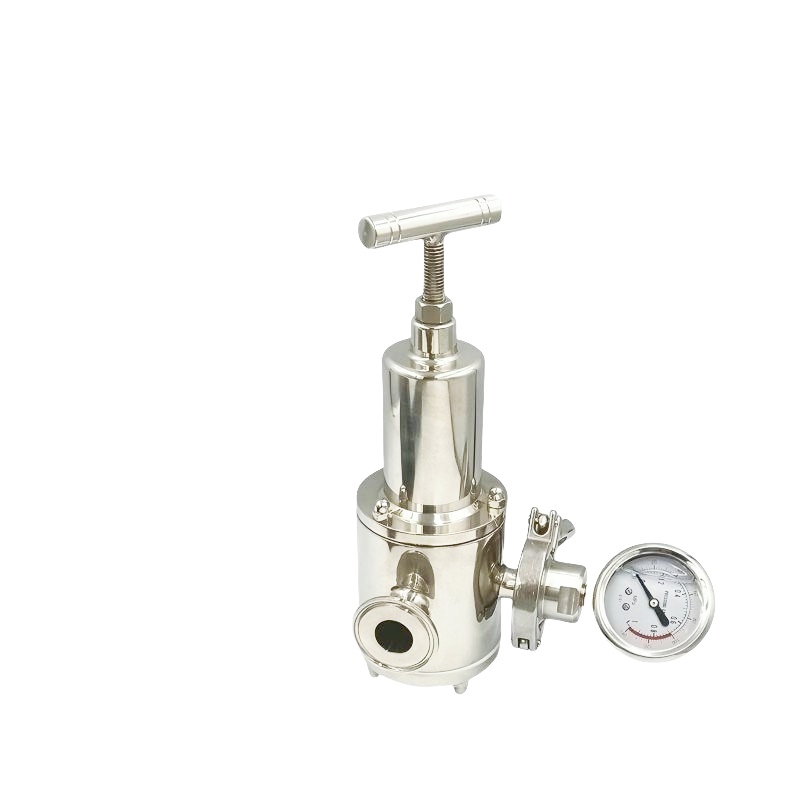

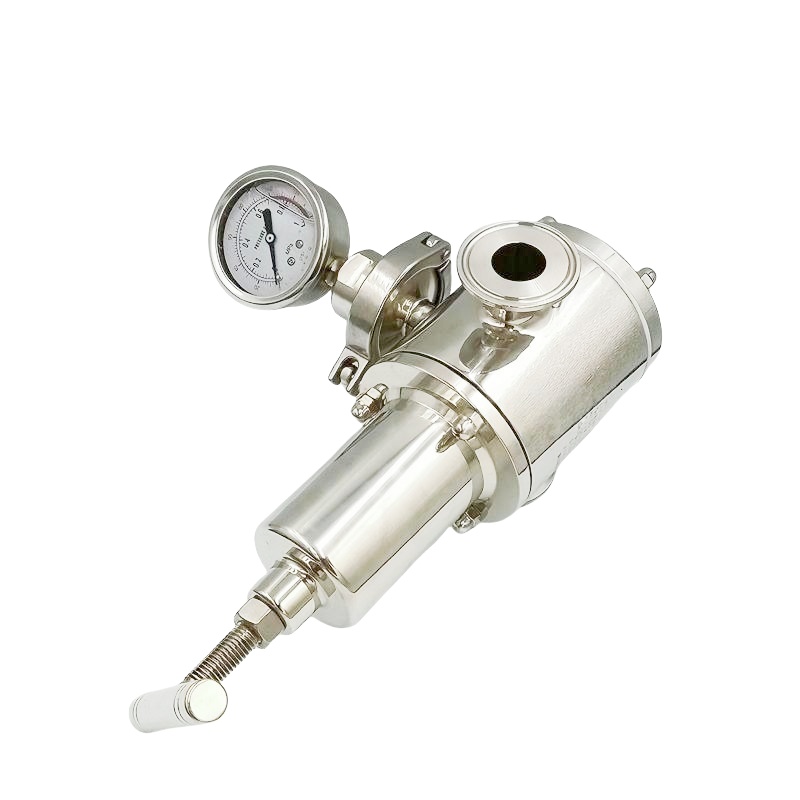

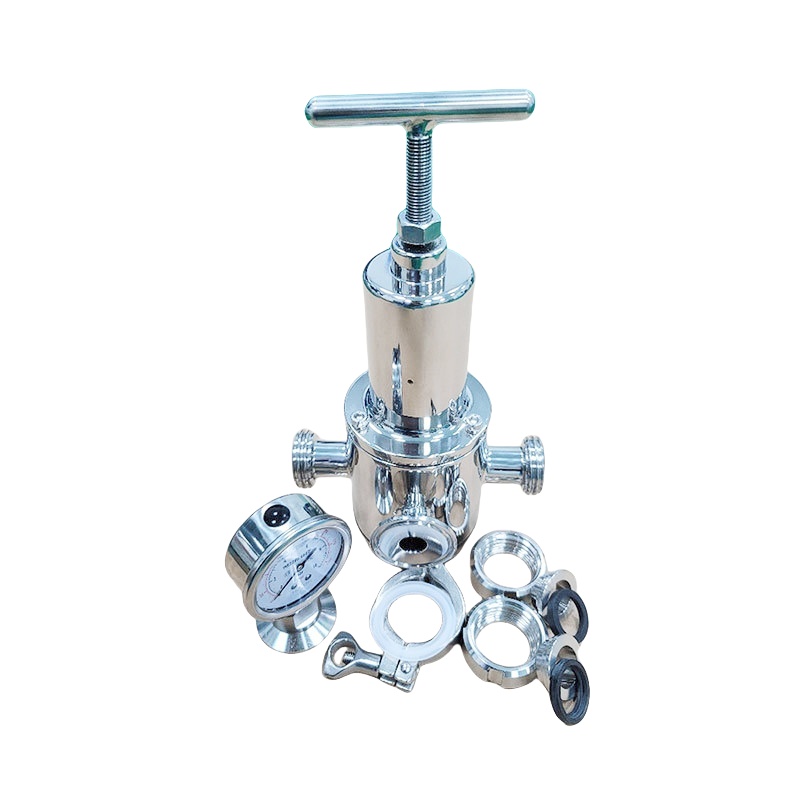

Stainless Steel Sanitary Clamped Pressure Reducing Valve for Water System
Features
The core features are as follows:
1. The lower valve body is made of 316L round steel CNC precision machining, and the medium does not contact the 304 component, which has a long service life, easy maintenance, and occupies the least space.
2. Diverse connection possibilities: flanges, clamps, DIN or ANSI flanges, welded pipe interfaces, no need for adapters and connectors.
3. Excellent standard surface finish, easy to clean.
4. Screw connection for higher pressure resistance.
5.316L double-layer corrugated tube, precise adjustment, longer lifespan, and higher pressure resistance.
6. T-shaped adjustment handle/plum blossom shaped adjustment handle, easy and convenient to adjust pressure. 7. Adjust the valve core to regulate the pressure after the valve without being affected by the pressure before the valve.
8. High adjustment accuracy.
9. PTFE sealing gasket, physiologically harmless, can be used for steam up to 165 ℃.
Applications
Functions and Applications Equipped with precise flow/pressure regulation function, it can achieve rapid response within 0.1 seconds and control of flow fluctuations within ± 1%, suitable for pneumatic or manual operation;
Widely used in fields with extremely high hygiene and safety requirements, such as pharmaceuticals (aseptic filling, fermentation broth ratio), food (juice concentration, beer fermentation), biotechnology (cell culture, vaccine production), etc.
Specifications
|
Size |
DN15 ~ DN80(1/2 "~ 3") |
|
Connection ends: |
Butt welded.tri clamped,threaded,flanged |
|
Inlet Max Pressure: |
10BAR |
|
Outlet pressure Range: |
0.5 ~ 8Bar |
|
Max temp |
165 °C |
|
Kvs |
2-70m3/h |
