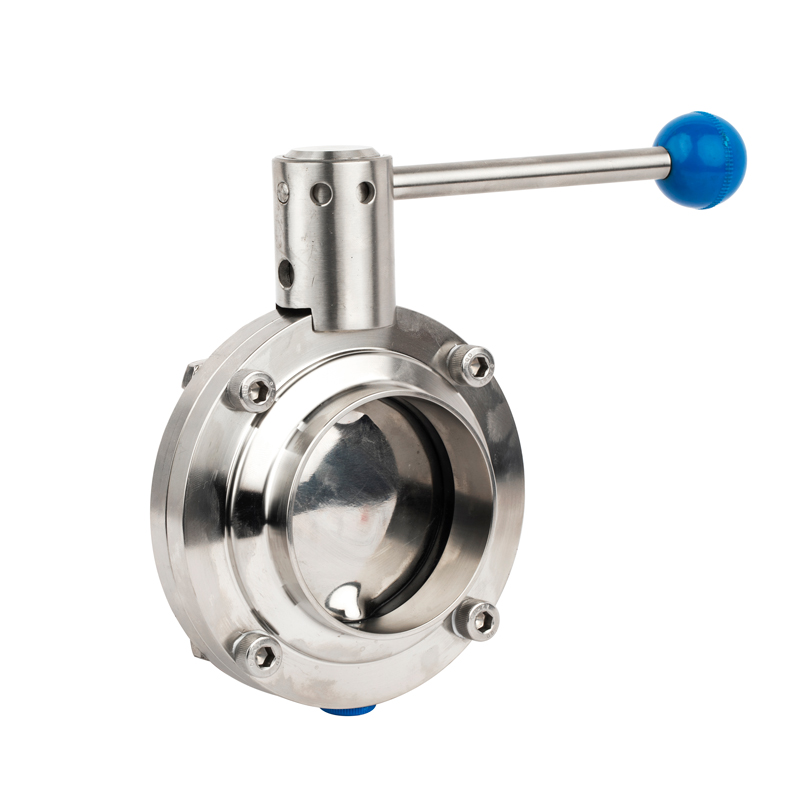

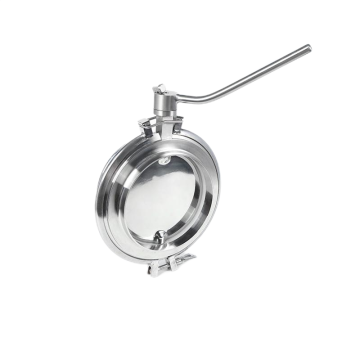

Stainless Steel Manual Butterfly Sanitary Valve With Multi-Position Handle

The BV Series butterfly valves are engineered to meet the stringent requirements of various industries, ensuring optimal performance and reliability in critical applications. This versatile valve is particularly suitable for industries such as food and beverage where hygiene and safety are critical. In the dairy industry, it facilitates the smooth flow of products while adhering to strict hygiene standards.

product details

Application

BV series butterfly valve is a type of flow control device, used to make a fluid start or stop flowing through a section of pipe. It is well applied to stainless steel pipe systems for food,beverage, dairy, brewing, pharmaceuatical, bio-pharmaceuatical and chemical industries.

In the brewing world, the BV range ensures precise control of the brewing process, contributing to the consistency and quality of the final product. The pharmaceutical and biopharmaceutical industries benefit from its ability to maintain sterile conditions and prevent contamination during manufacturing processes. Additionally, in the chemical sector, the valve is designed to handle a wide range of corrosive substances, providing durability and longevity even in the most challenging environments.

With its rugged construction and innovative design, the BV Series Butterfly Valve not only improves operating efficiency but also minimizes maintenance requirements, making it a cost-effective solution for industries that demand both performance and reliability. Its adaptability to different applications and compliance with industry standards further solidifies its position as the first choice for engineers and operators.

Materials

Body Materials: AISI-304 or AISI-316L

Gasket Material:Silicon, EPDM, VITON, NBR Valve seat and gasket comply with FDA 21CFR177.2600

Standard Design

Standard Available: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.

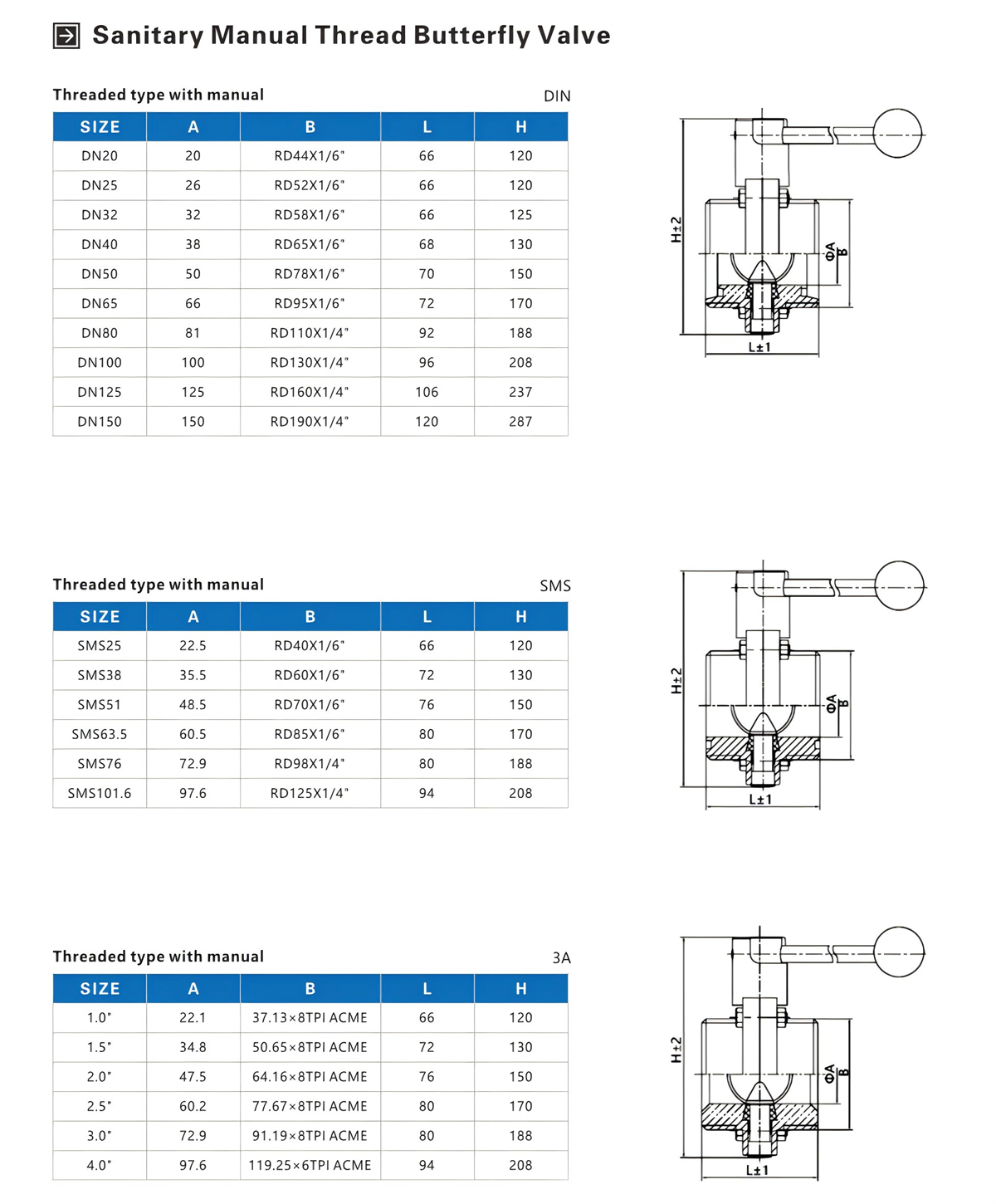

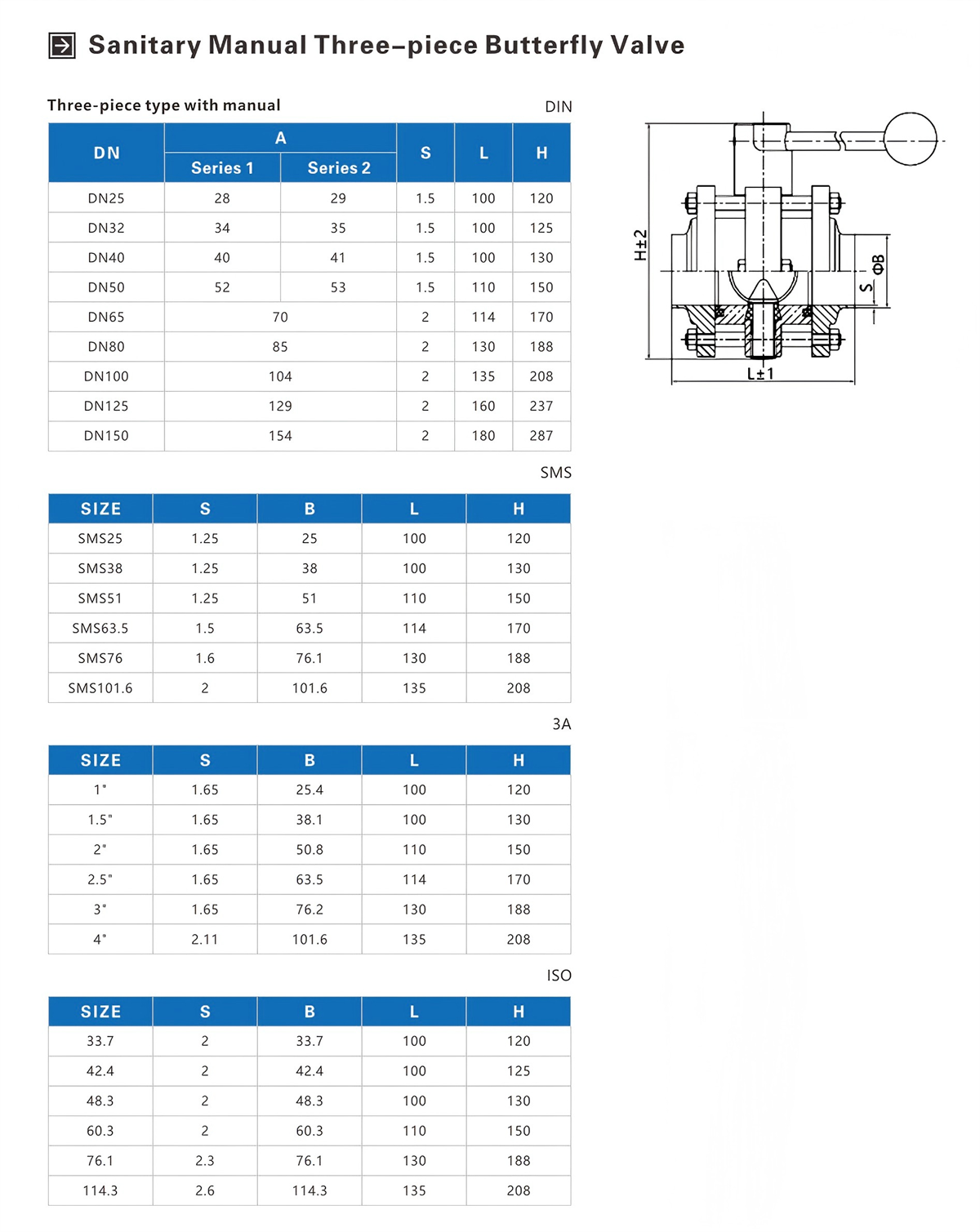

Available in sizes from DN15 / 1/2" to DN250 / 10"

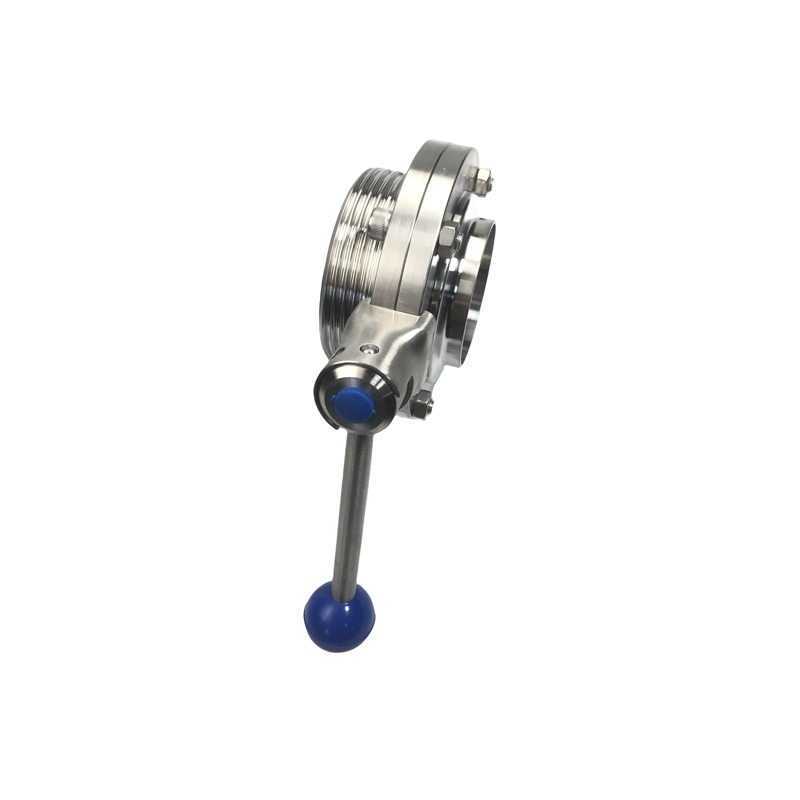

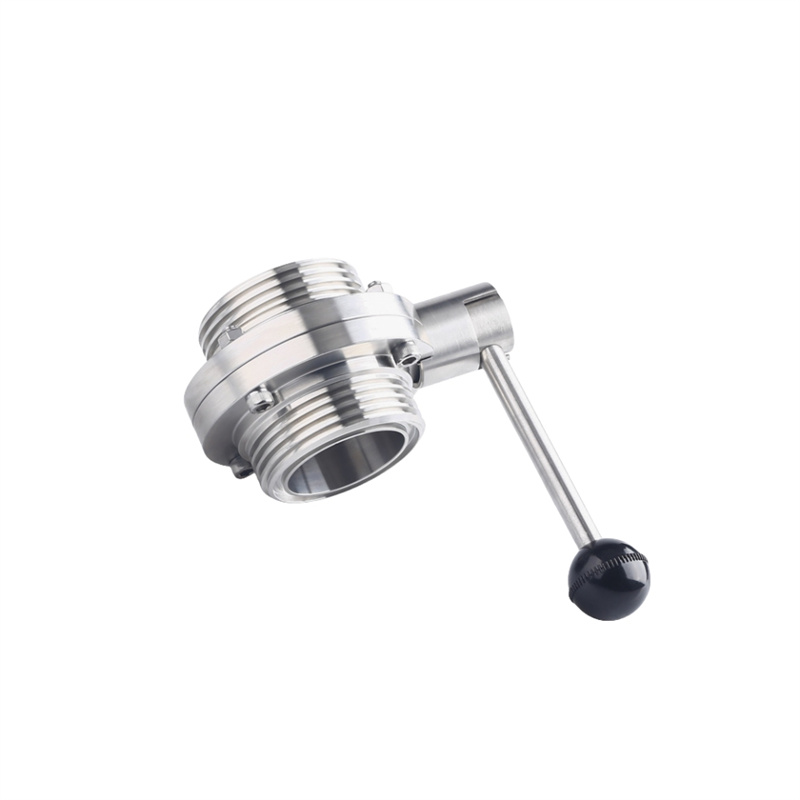

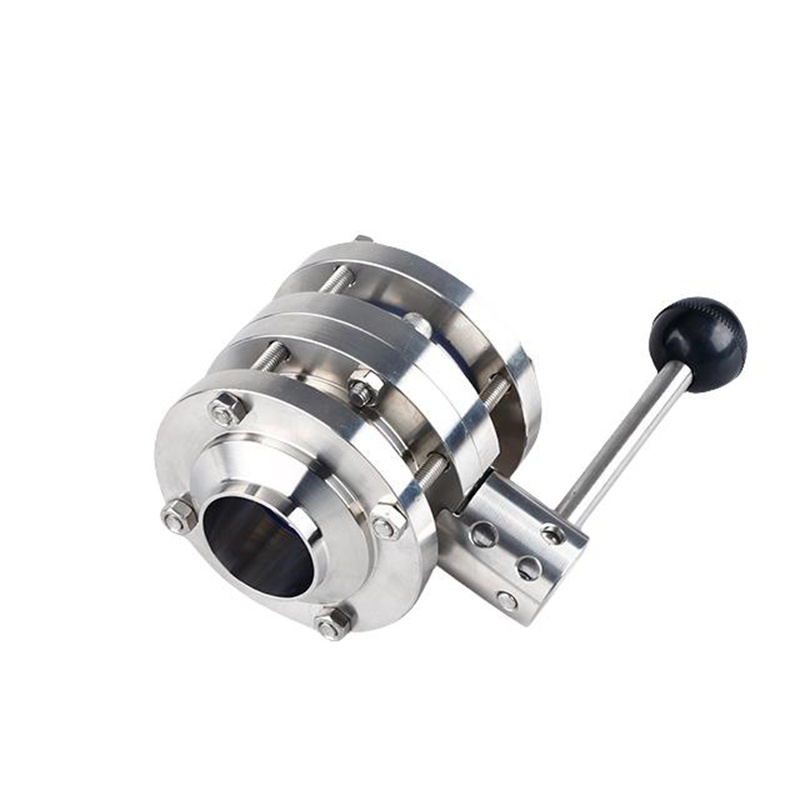

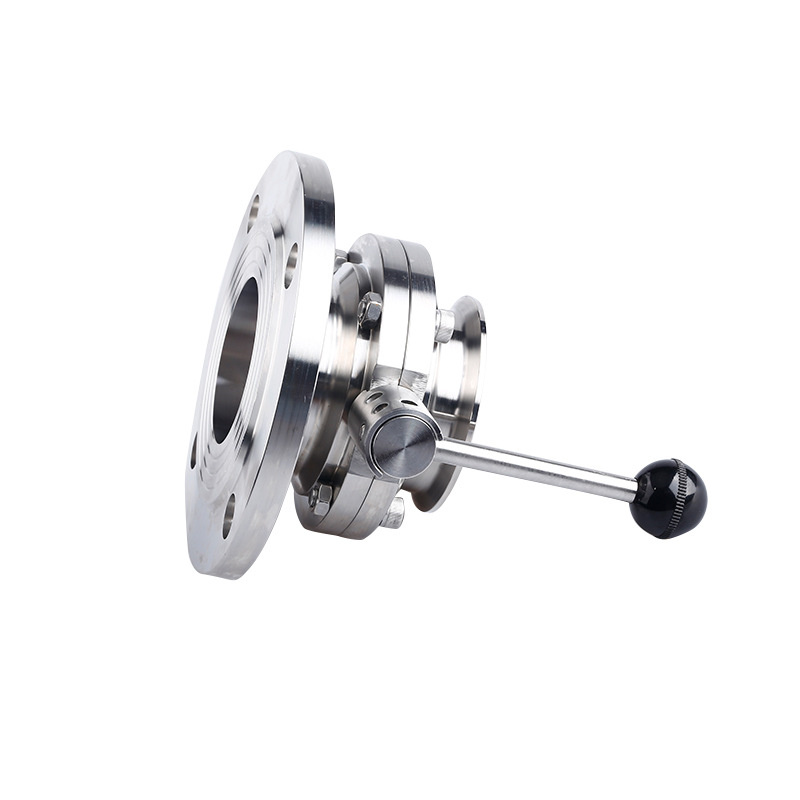

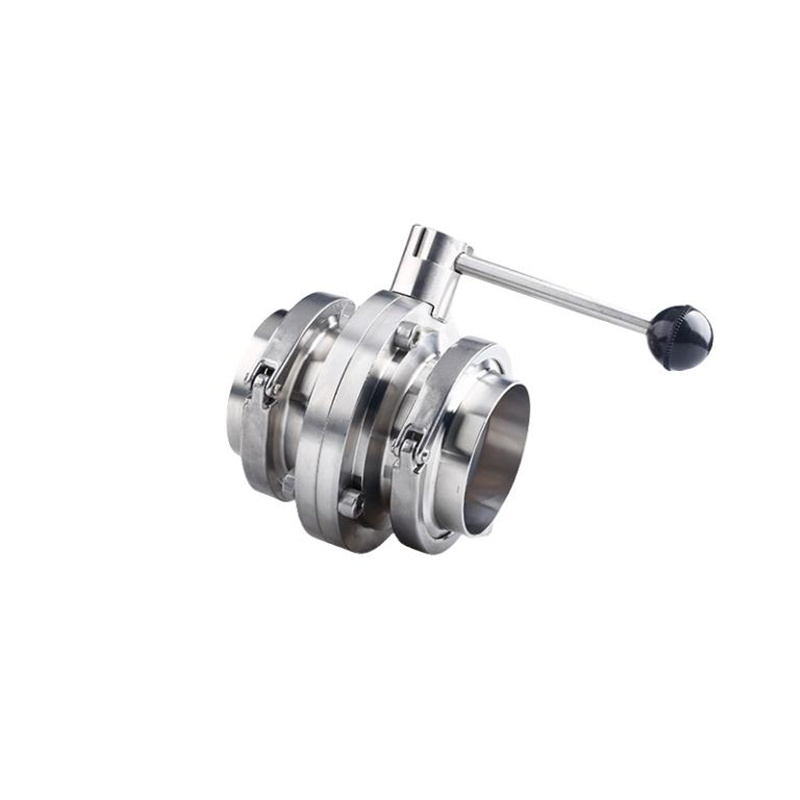

End connection: Butt-weld, Clamp, Male, Nut, Liner or Flange or others upon request.

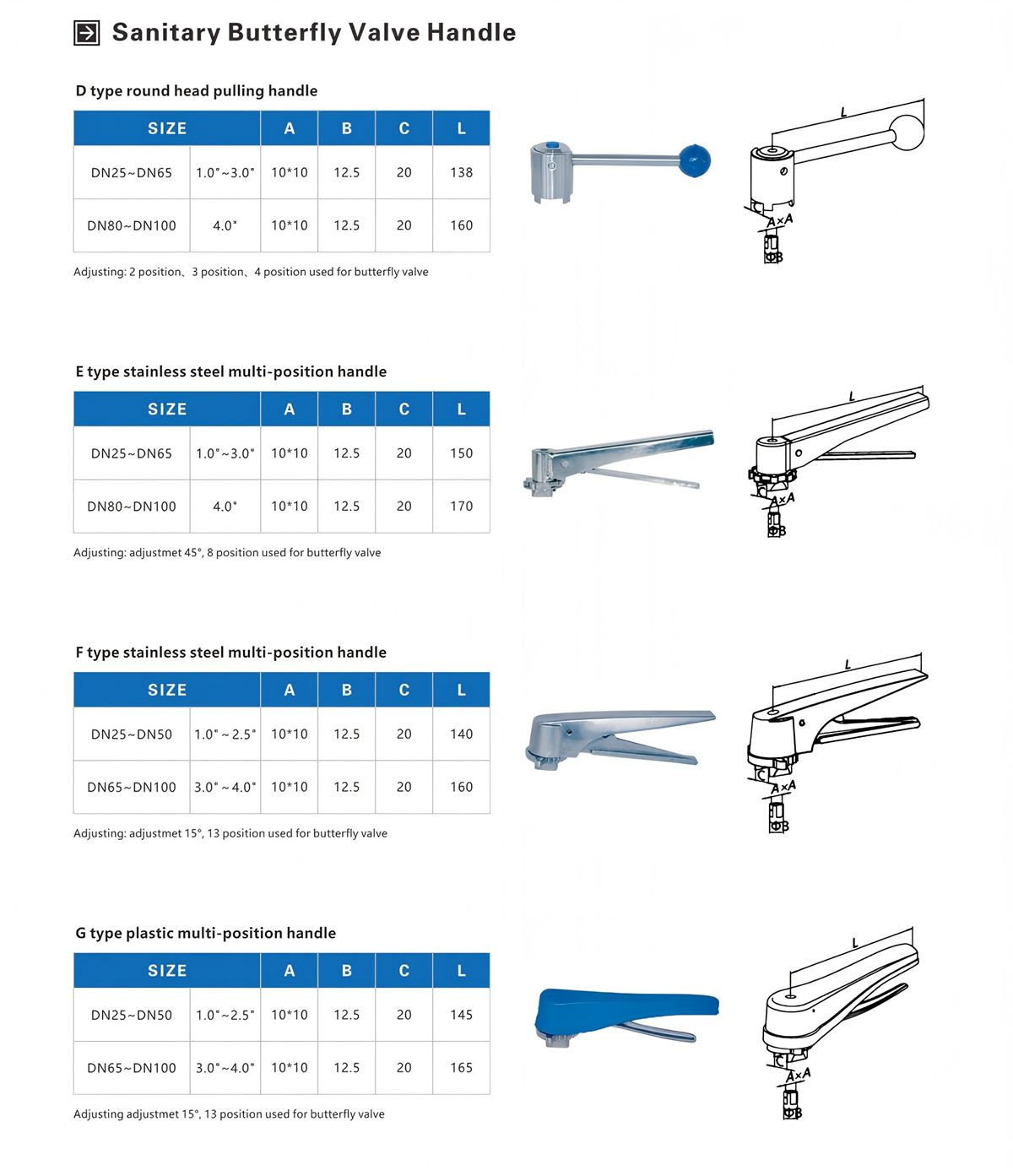

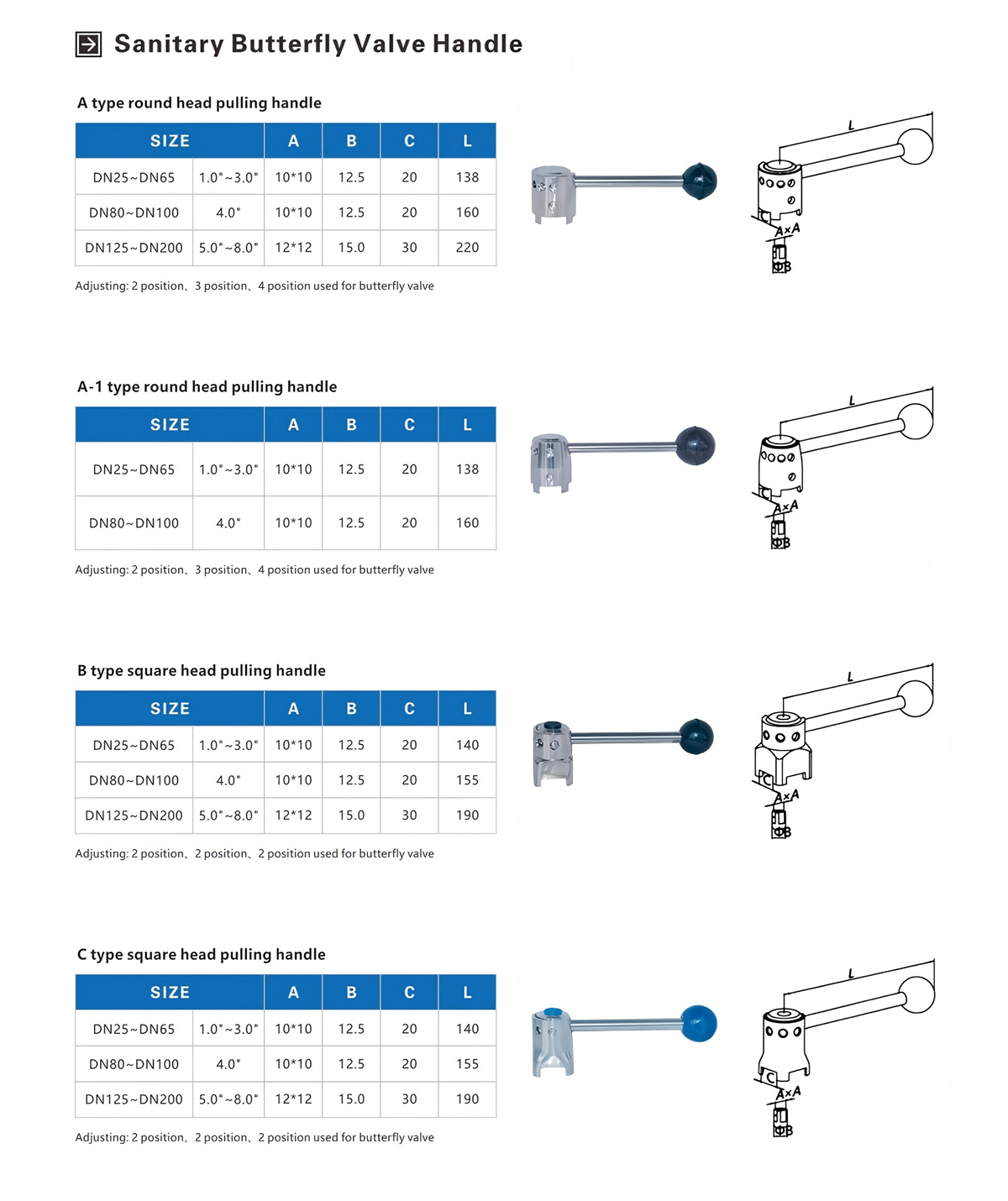

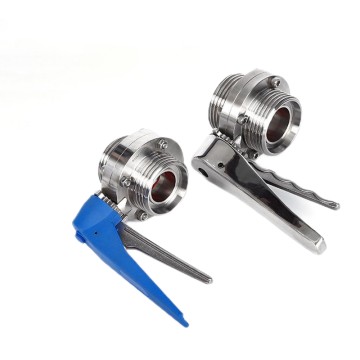

Handle: plastic pull handle (2-4 positions) or plastic/stainless steel handle (12 positions)

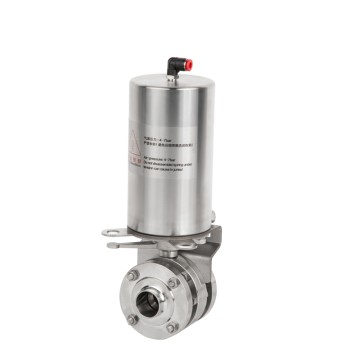

Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.

Control: position sensor, C-top controller, C-top controller (AS-I)

Manual handle, pneumatic actuator and electric actuator are interchangeable.

Technical Specification

Max. pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150

Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)

Supply pressure for air actuator: 70 ~ 115psi

Technical data sheet
Steel material	Product steel parts	AISI 316L / 304 forged (1.4306 / 1.4404)	Provided with material inspection report
	Other steel parts	AISI 304
Seal material	Standard	EPDM	All seal materials comply with FDA 21CFR117.2600
	Options	VMQ / FPM
Pressure	Working pressure	≤10bar (145psi)
	Supply pressure for air actuator	5 ~ 8bar (70 ~ 116psi)
Temperature	Working temperature	EPDM: 14 ~ 248°F (-10 ~ 120°C) VMQ: -58 ~ 356°F (-50 ~ +180°C) FPM: -22 ~ 446°F (-30 ~ +230°C) Other materials are available upon request
	Sterilization temperature	302°F (150°C, Max. 20 min)
Surface treatment	Inside surface treatment	Ra 16 ~ 32µin (0.4 ~ 0.8µm)
	Outside surface treatment	Ra32 ~ 64µin (0.8 ~ 1.6µm)

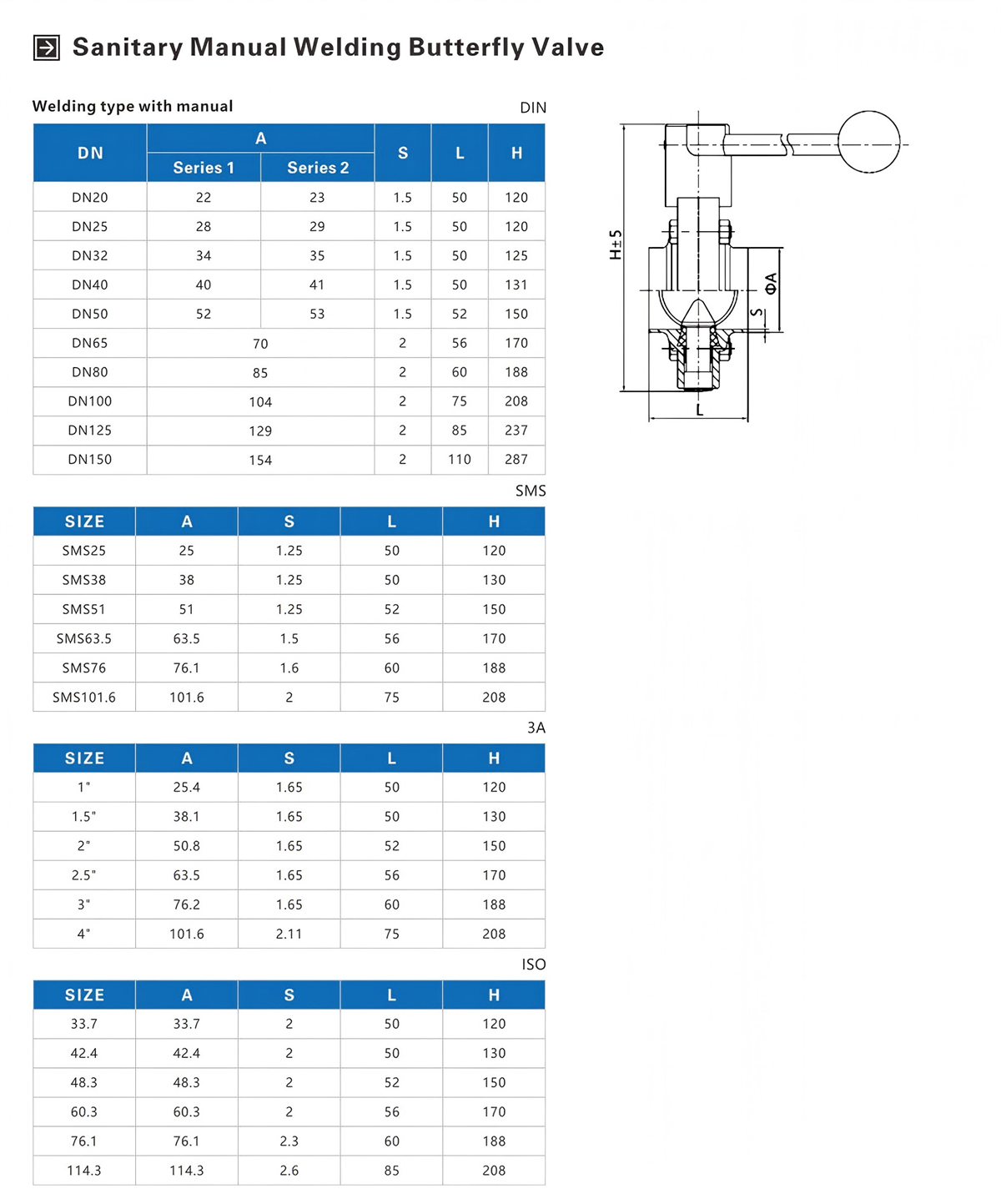

Connection	The welding diameter	Welding ends: DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series, etc.
	End connections: butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.
