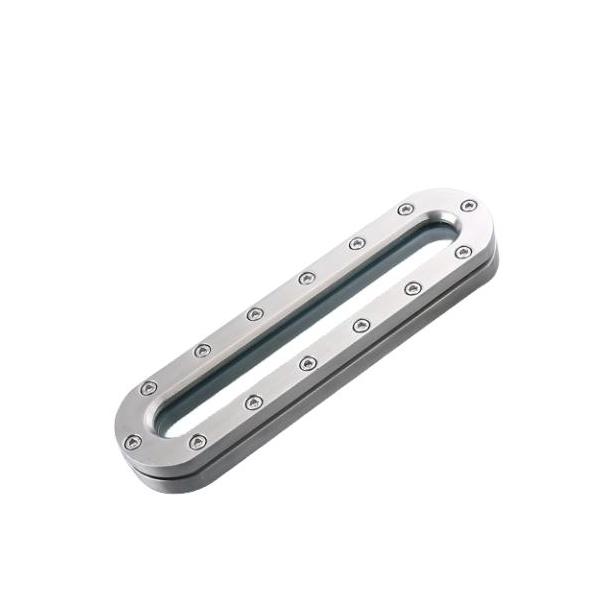

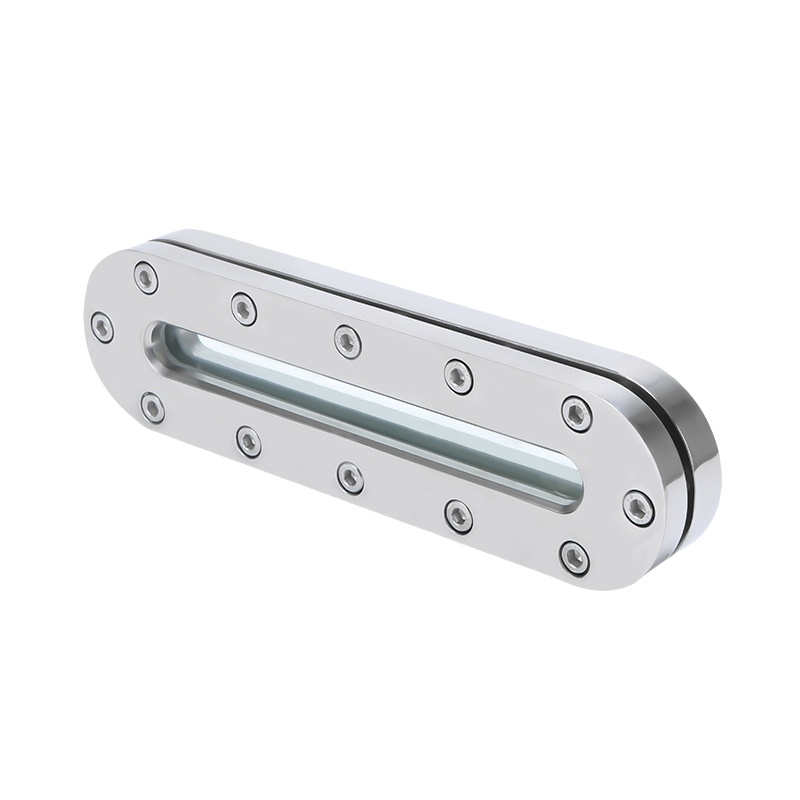

Stainless Steel Elongated Ellipse/Obround Sight Glass with Level Indicator
Application
To display the surface of a liquid, the sightglass is designed for integration into attachments for tanks, vessels, and silos. The base frame is welded directly onto or into the vessel wall. Subsequently, the sightglass plate, along with two seals, is securely fastened by the cover frame and a set of fastening bolts.
Materials
Body Materials: AISI-304 or AISI-316L
Tempered glass
Gasket Material:Silicon, EPDM, FRM
Seat and gasket comply with FDA 21CFR177.2600
Standard Design
Wide range of sizes
· High Pressure versions up to 25 Bar
· Low profile, clean-line design with counter-sunk bolts
· Radius base flange available for flush fit with vessel interior
Available in size from 1"-4", DN25-DN100 or others upon requirement
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: butt-welded, sanitary clamp, or others upon request
Technical Specification
Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon
Surface treatment: CNC machining
