Stainless Steel 316 Sanitary Pharmaceutical Water Machinery 3 Way Tri Clamped U Type Diaphragm Valve
Application
The WJ series sanitary diaphragm valve adopts a U-shaped design and is specially built for applications in the food, beverage, dairy, brewing and pharmaceutical industries. This valve provides excellent flow control capabilities to meet a variety of process needs. Its unique U-shaped structure not only ensures smooth flow of fluid, but also effectively prevents the formation of dead corners, reducing the difficulty of cleaning and maintenance. WJ series valves are suitable for switch operations and can operate stably in high-pressure and high-temperature environments to ensure the safety and reliability of the production process. Whether in key links of the production line or in daily fluid management, WJ series sanitary diaphragm valves can provide excellent performance and flexible applications, becoming the ideal choice for users in various industries. Its high-quality materials and precision workmanship ensure the valve's durability and hygiene, complying with strict industry standards.
Materials
Body: AISI-316L
Membrane: EPDM+PTFE or EDPM
The seal materials adhere to the FDA 177.2600 standard. Leveraging proprietary technology, the diaphragm is crafted from a blend of EPDM and PTFE, secured in place with stainless steel bolts. The sealing component that comes into contact with the medium is made of PTFE, which boasts excellent cold resistance, down to -13°F (-25°C), outstanding heat resistance up to 482°F (+250°C), and is resistant to most chemicals. Additionally, it provides superior abrasion resistance against medium flow.
Standard Design
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: butt-welded, sanitary clamp, or others upon request
Body type: T-type tee, U type tee, Mini type, tank bottom type, etc.

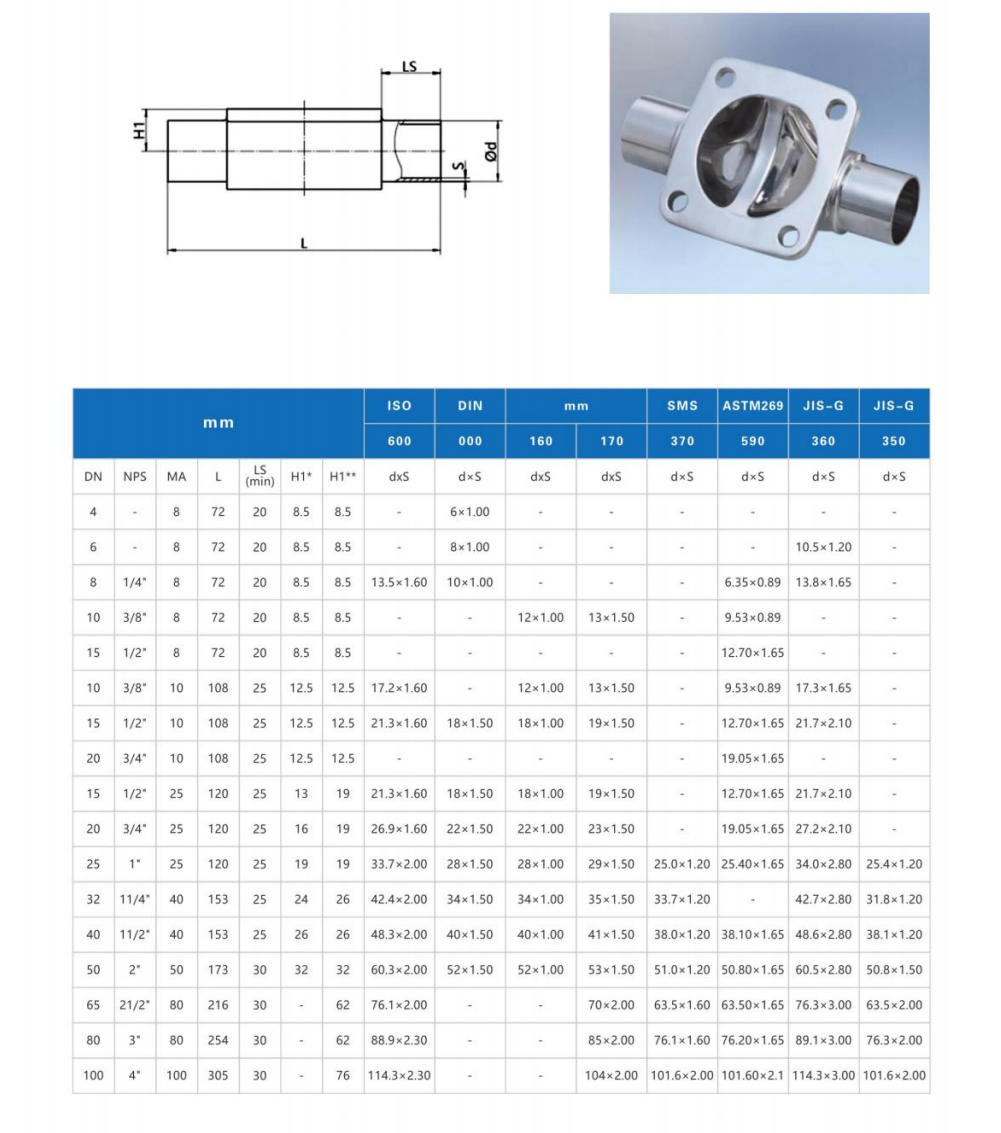

Technical Specification
Max. working pressure: 147psi (10bar)
Temperature range: 14 ~ 248℉ (-10 ~ 120℃)), EPDM
Inside polishing: Ra 16-32& micro;in (0.4 ~ 0.8µm)
