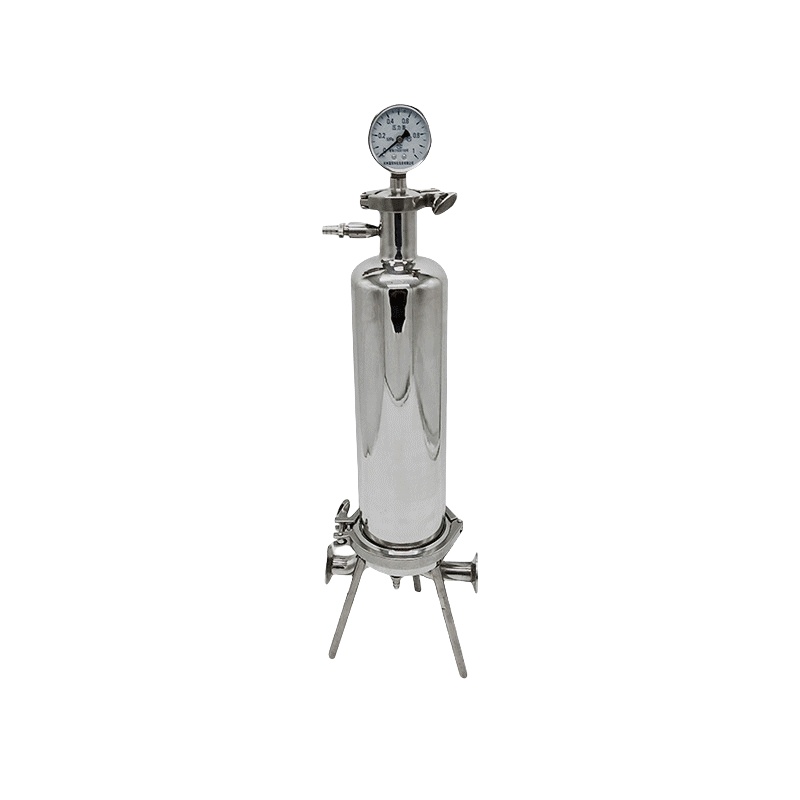

SS316 SS304 Stainless Steel Magnetic Single Multi Cartridge Water Filter Housing 10 20 30 40 Inch
Application
The sanitary filter housing is meticulously engineered for applications in the sanitary, pharmaceutical, biological, biotechnological, food, and beverage industries. It is crafted from either stainless steel grade 304 or 316L, featuring a seamless design that eliminates crevices. This housing is specifically designed to withstand hot water, chemical, and steam sterilization processes. It is perfectly suited for use with a wide range of filter cartridges, from those used for clarification to those with sterilizing grade membranes. Additionally, it is well-suited for environments that necessitate Cleaning-In-Place (CIP) and Sterilization-In-Place (SIP) procedures, ensuring a high standard of cleanliness and sterility.
Materials
Cartridge housing material :SS304/SS316L
Clamp :SS304
Tri clamp Gasket:Silicon per FDA 177.2600
Venting (optional):SS304/SS316L
Draining (optional) :SS304/SS316L
Standard Design
T type Design
High-quality and crevice free construction
Tri-Clamp Closure
Sanitary process, vent & drain connections
Cartridges in 222/Fin or 226/Fin configurations
Single cartridge
Length of filter cartridges: 10", 20", 30", 40"
Technical Specification
Temperature range: -10°C to 120°C(Silicon)
Working Pressure: 8 bar up to 40 °C
Steam Sterilization :121°C/ 30 min
