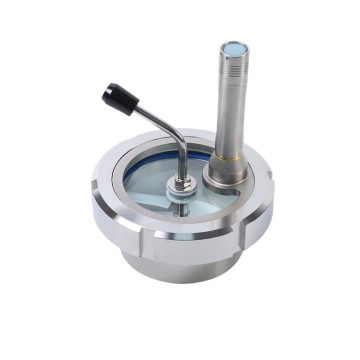

Sight Glass with Light Indicator
Materials
Body Materials: AISI-304 or AISI-316L
Tempered glass
Gasket Material:Silicon, EPDM, FRM
Seat and gasket comply with FDA 21CFR177.2600
Standard Design
Available in size from 1"-4", DN25-DN150 or others upon requirement
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: butt-welded, sanitary clamp, or others upon request
Technical Specification
Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon
Surface treatment: CNC machining
