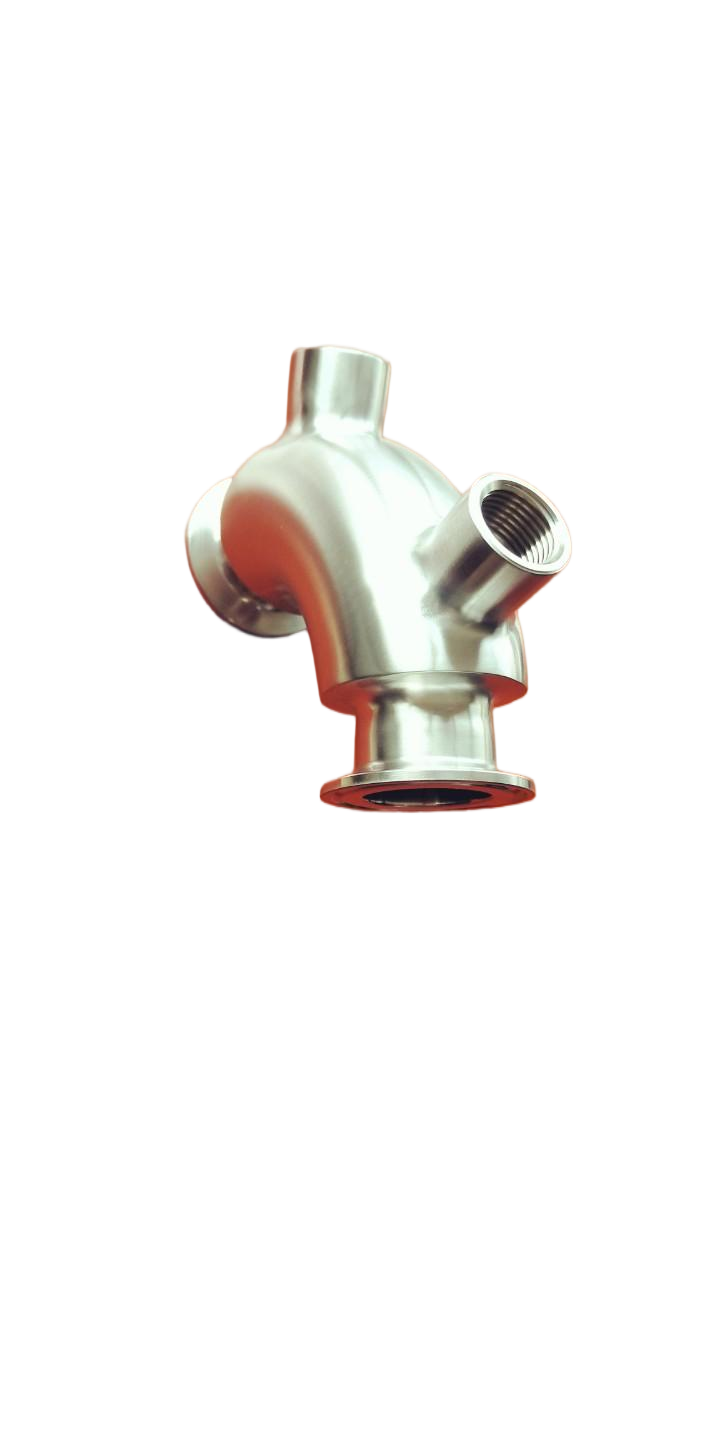

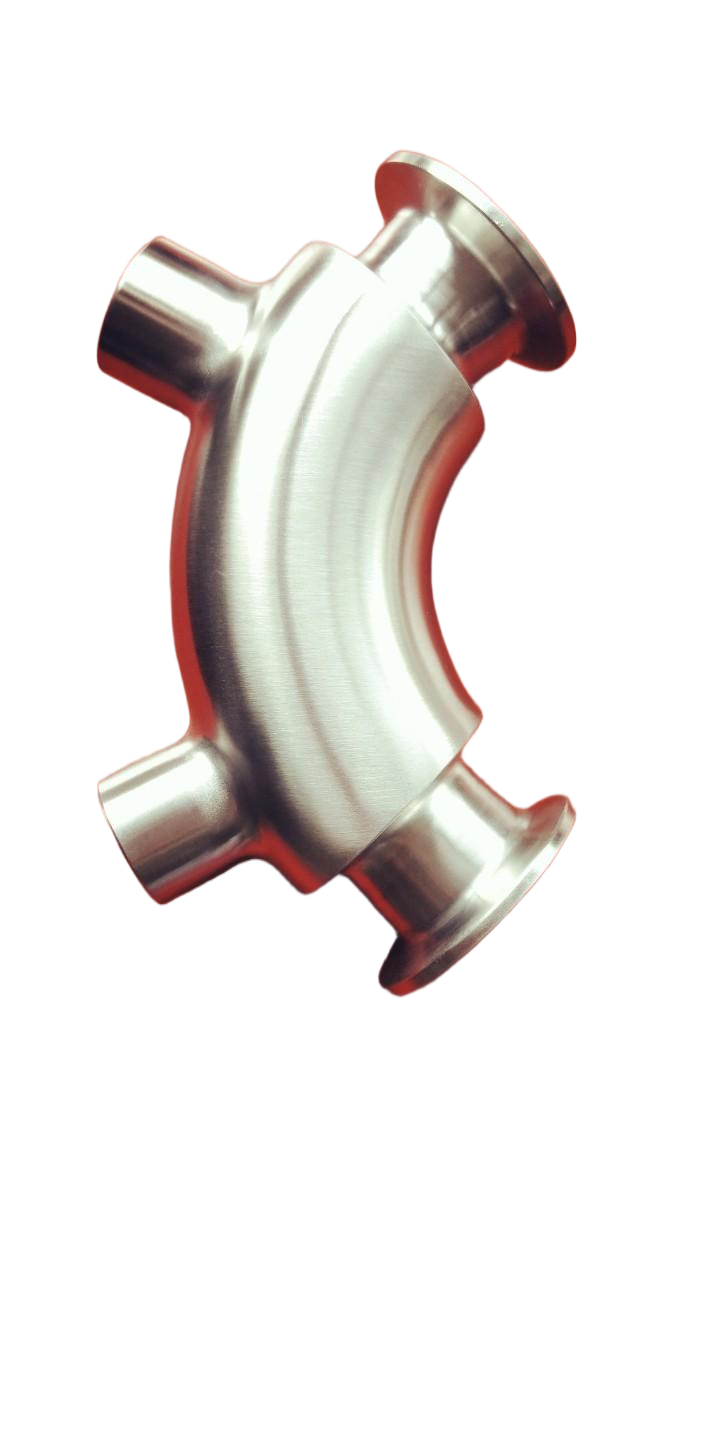

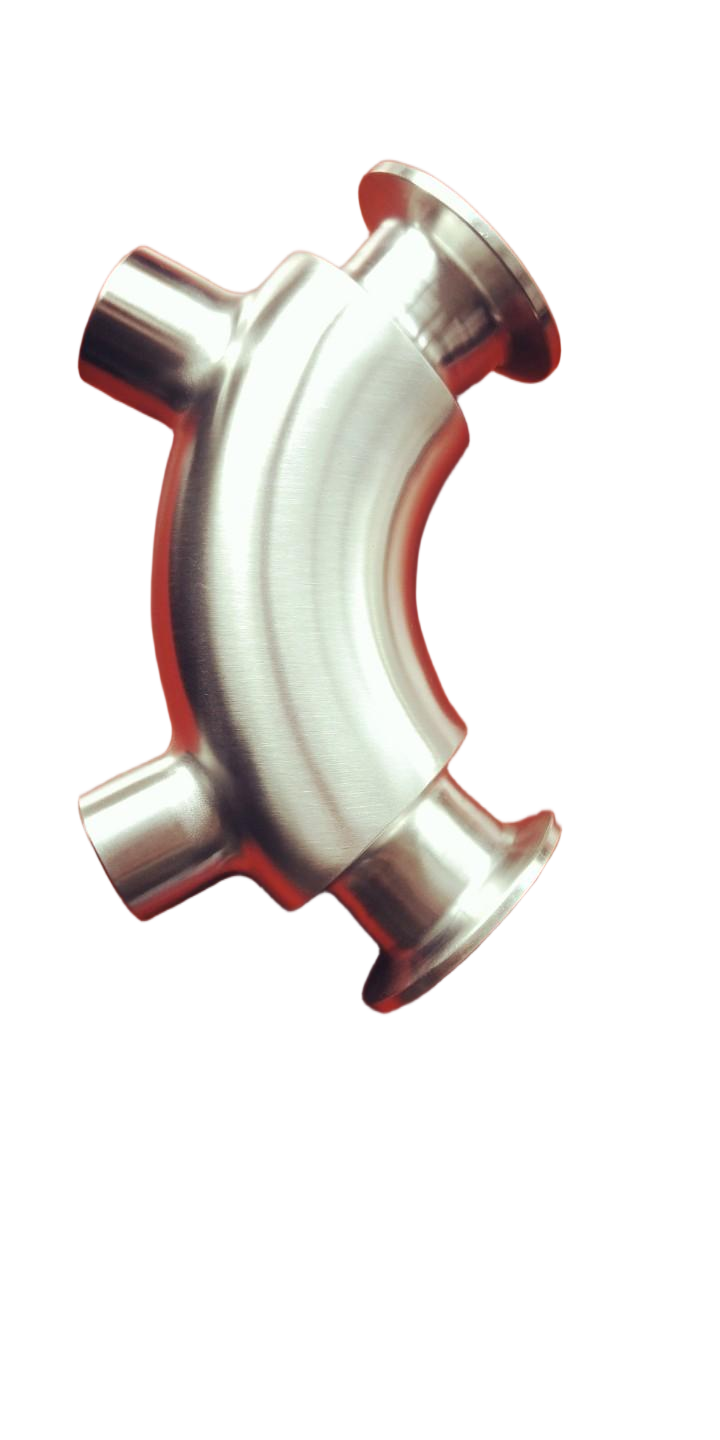

Sanitary Stainless Steel Heating Jacketed Tri Clover Elbow
Features
The Fully Jacketed Triclamp/Tri Clover 90-degree bend extends outward to the end, adding extra length to the fitting.
Manufactured from stainless steel with a high-polish finish on both the interior and exterior, it features two female National Pipe Taper (FNPT) ports on the outer jacket.
Designed to circulate fluid through the outer jacket, it can either condense or heat the internal vapors or liquids.
The design incorporates an insulated jacket housing for optimal heat transfer.
This fitting can protect media prone to solidification, such as chocolate, margarine, or other similar substances that maintain liquid flow.
Specifications
Materials: AISI-304 or AISI-316L

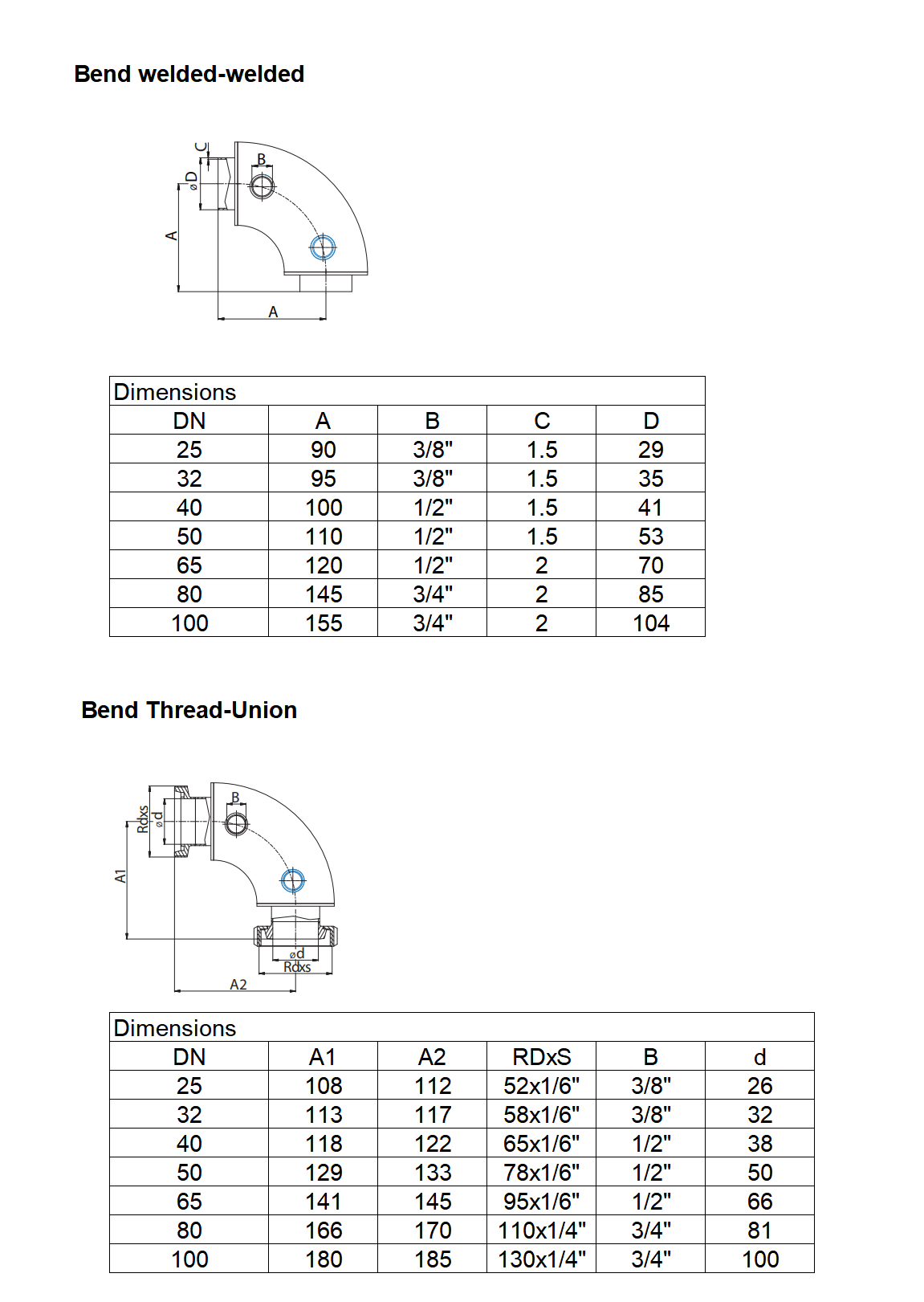

Standard Design
Specifications：DN25-DN100，1"-4"
Material: ASTM304/316L,1.4301/1.4404
Connection mode：Clamp,threaded,flanged
Standards:DIN11850 SMS ISO IDF DS BS4825 AS1528
Inner Surface: Mechanical Polishing Ra 0.4μm,0.8μm；
Outer Surface：Ra 0.8μm
