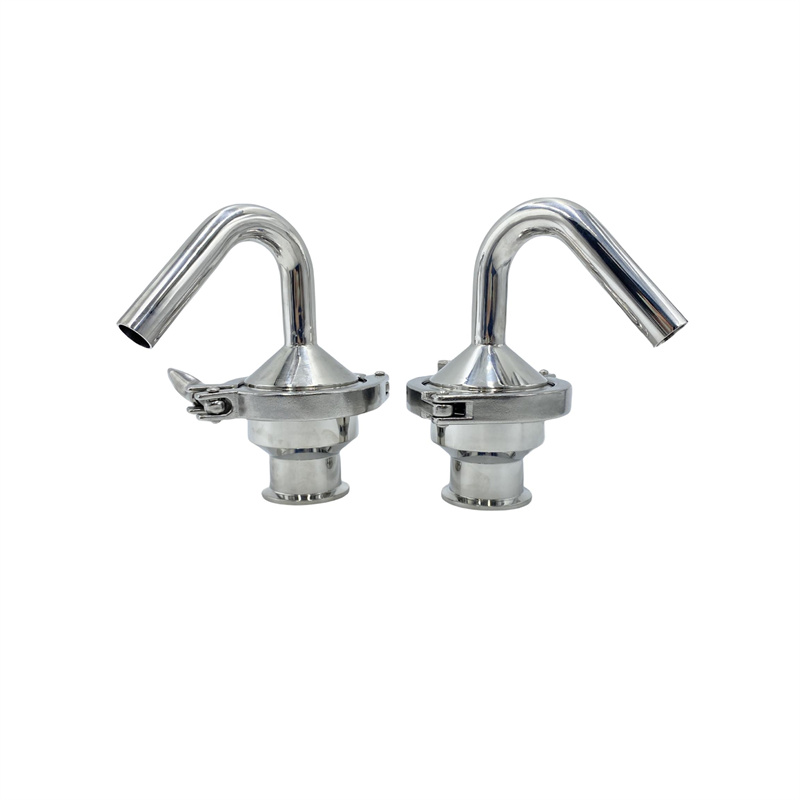

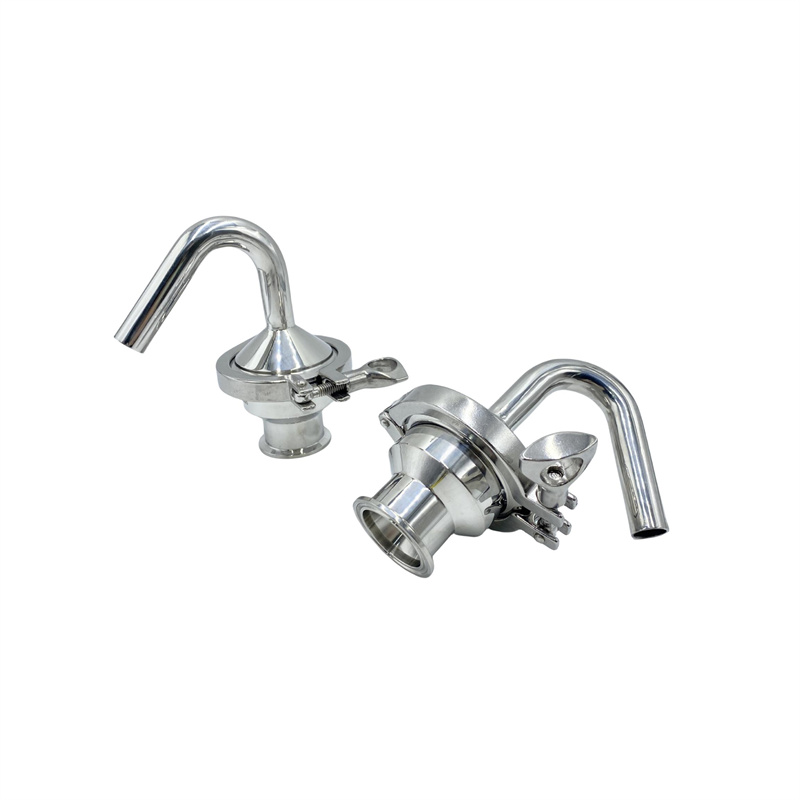

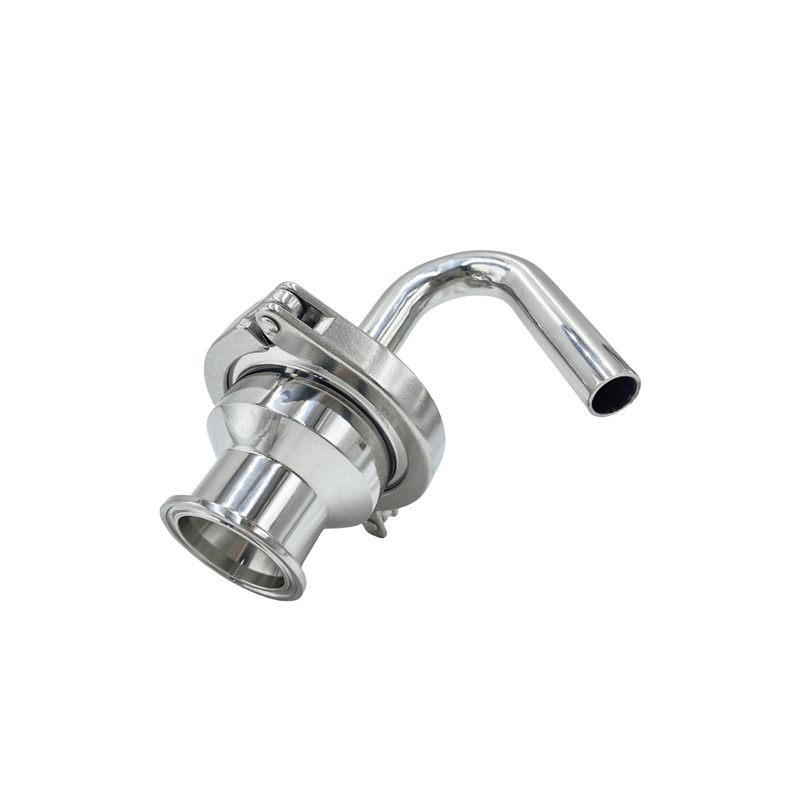

Sanitary Food Grade SS304 Threading Regulating Vent Valve Weld Air Pressure Release Valve
Applications
This air purge valve is a two-seat design with a free-moving plastic ball. The plastic ball has a lower density than water and can effectively seal the upper and lower valve seats according to different pressure conditions. Designed for vertical installation, the valve is suitable for use on the top of pipes, vessels or at the inlet of a pump, effectively removing air when required.
In liquid delivery systems, the presence of air may cause air blockage, affect the normal flow of fluid, and may even cause equipment damage. Through its unique design, this air exhaust valve ensures that the air in the system can be discharged in time during the liquid flow process to maintain efficient operation of the system. The valve's double-seat structure not only improves sealing performance, but also enhances durability, ensuring stable operation under various working conditions.
The lightweight design of the plastic ball allows the valve to respond quickly when pressure changes, ensuring the sealing effect while reducing the complexity of operation. Whether in industrial pipelines, chemical containers, or at the water inlet of water pumps, this air exhaust valve can provide reliable air exhaust solutions to help users maintain the normal operation of equipment.
With its innovative two-seat design and efficient air discharge capability, this air exhaust valve has become an indispensable component in the liquid delivery system, ensuring the safety and efficiency of the system. Whether it is installation or maintenance, users can enjoy a convenient and efficient experience.

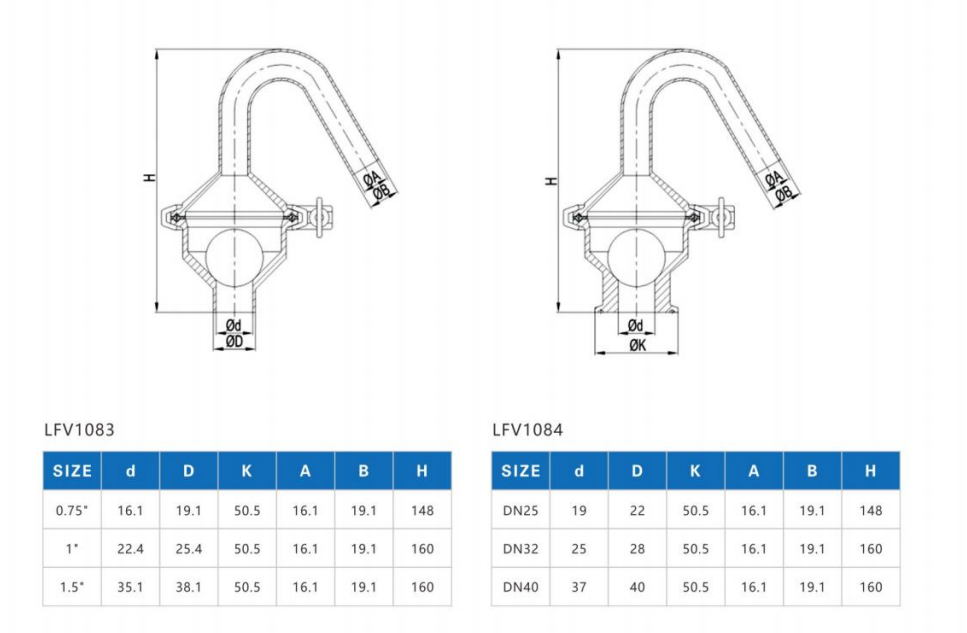

Technical Data
Upper and lower valve seats:SS 304
Valve ball:Polypropylene
Sealing ring :EPDM
Size: 1.5" or DN40
Working Pressue: 10Bar
Max.temperature:90 degree ( due to the plastic ball of the valve)
Valve ball density :0.906kg/dm3
