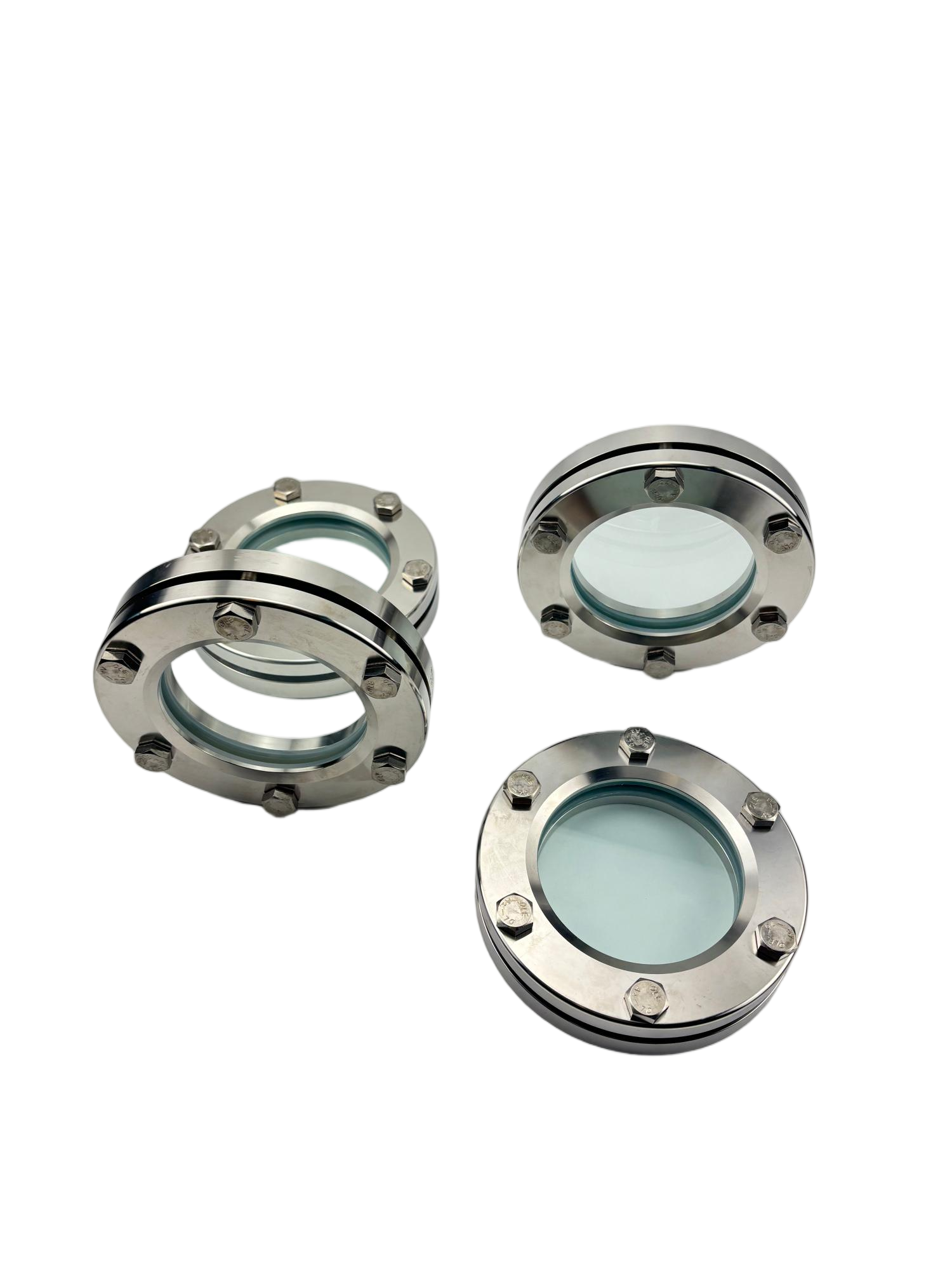

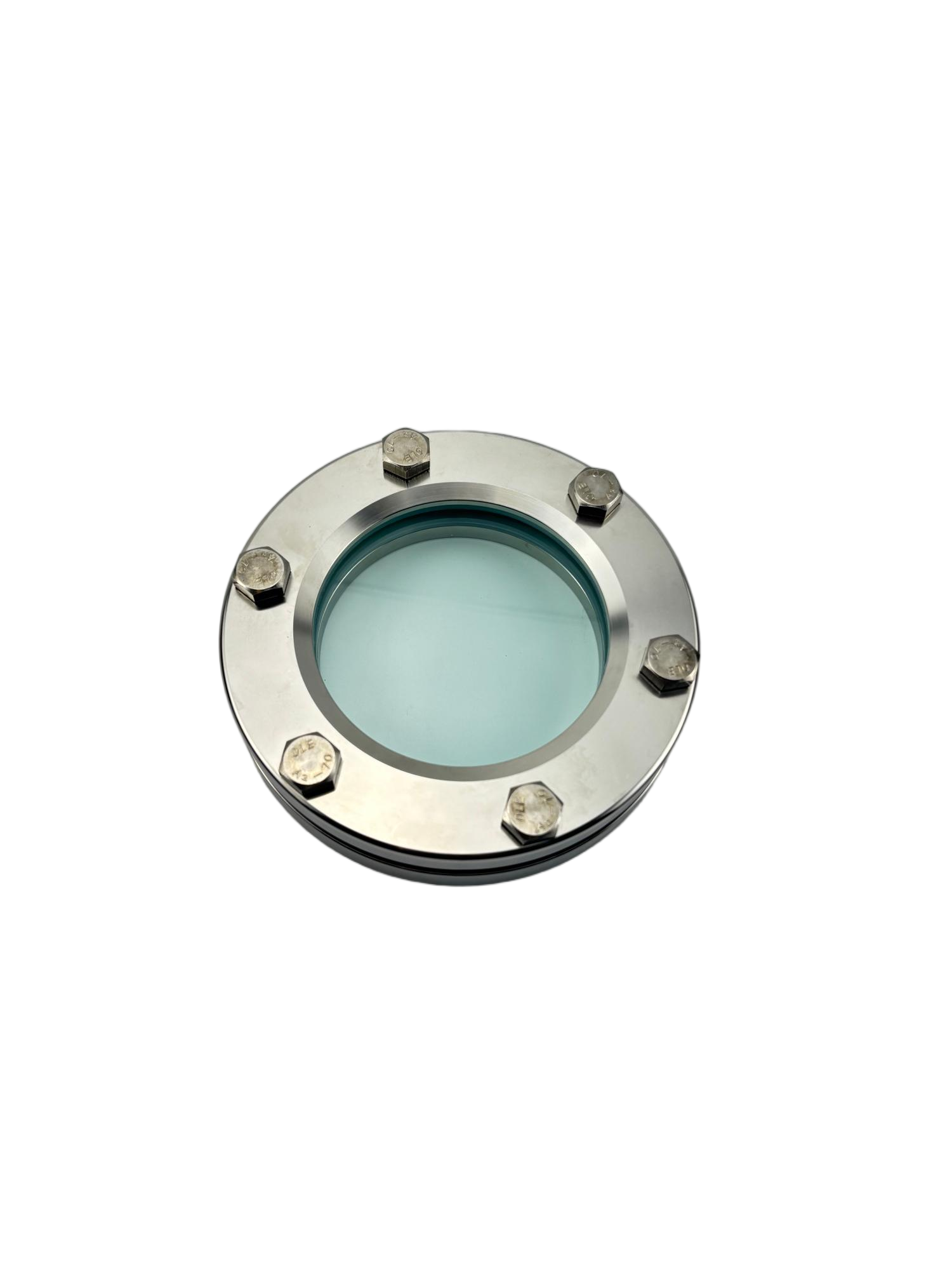

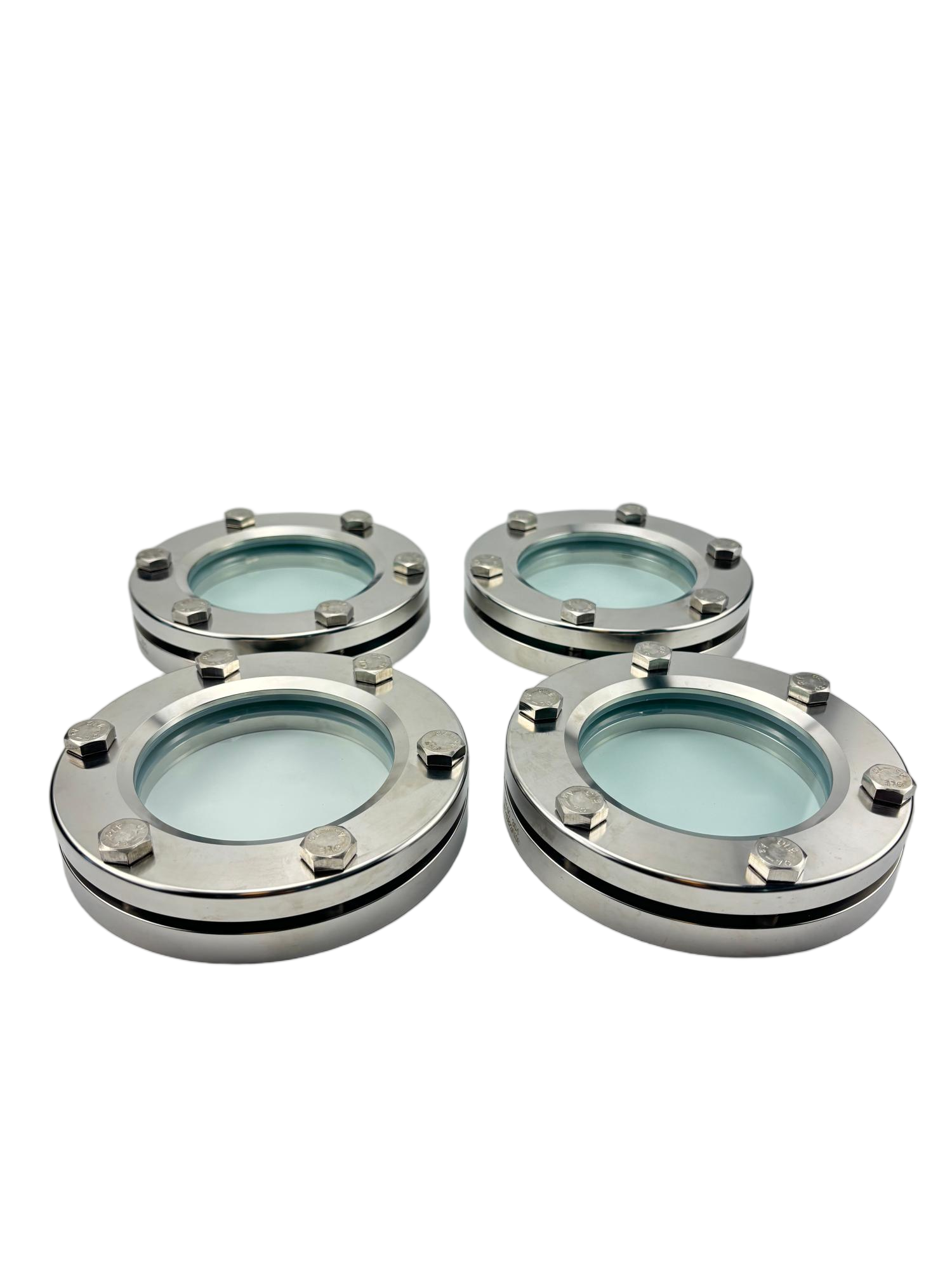

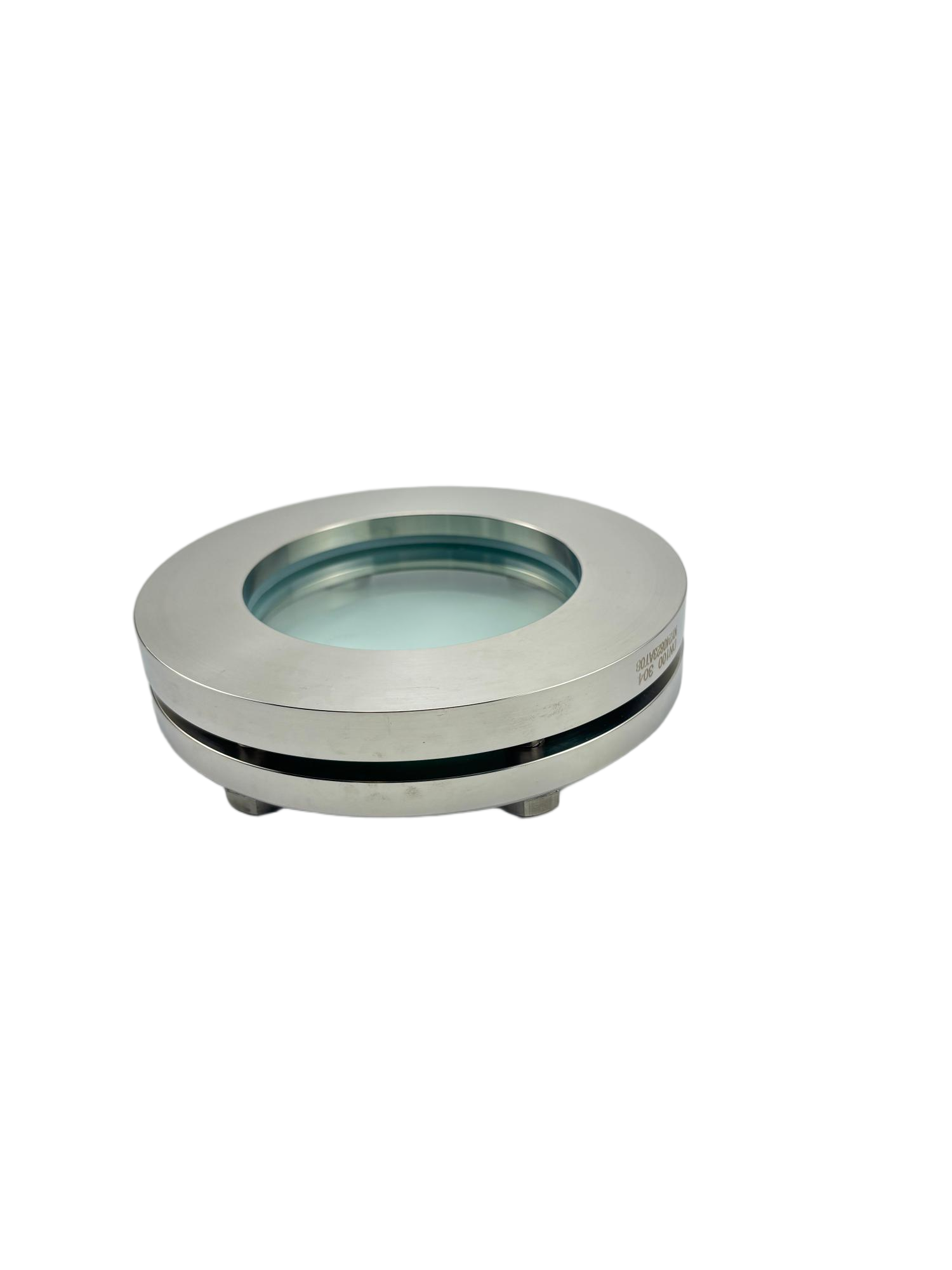

Sanitary Flange Sight Glass
Features
Application
Flange type sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc. For it is convenient to view the condition of equipment running state and system work state.
Materials
· Body Materials: AISI-304 or AISI-316L
Tempered glass
Gasket Material:Silicon, EPDM, FRM
Seat and gasket comply with FDA 21CFR177.2600
Standard Design
Available in size from 1"-4", DN25-DN150 or others upon requirement
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: butt-welded, sanitary clamp, or others upon request
Technical Specification
· Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon
· Surface treatment: CNC machining
|
Size |
1” to 6” |
|
End connections |
Sanitary clamp, butt-weld, i-line or others on request. |
|
Guard |
polycarbonate guard (protects from being broken or damaged) |
|
Seal material |
PTFE, silicone,EPDM |
|
Studs and Nuts |
AISI 304 |
|
Flange |
AISI304, AISI 316L |
|
Pressure |
- up to 10 bar |
|
Temperature |
- up to 250 F. |

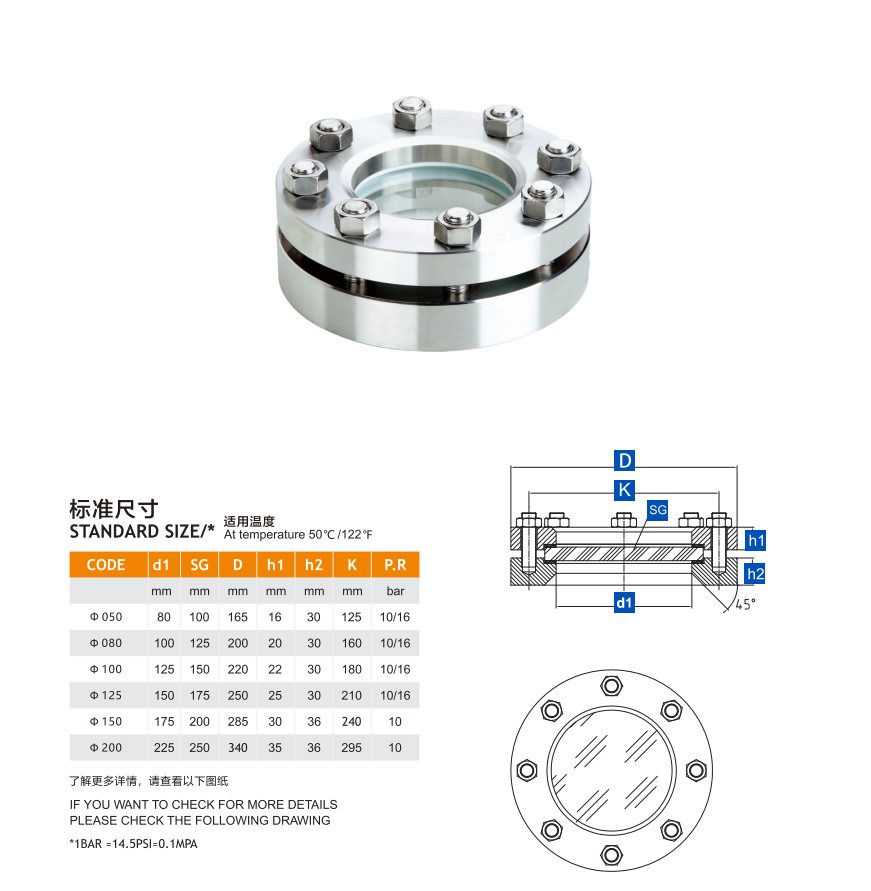

Specifications
