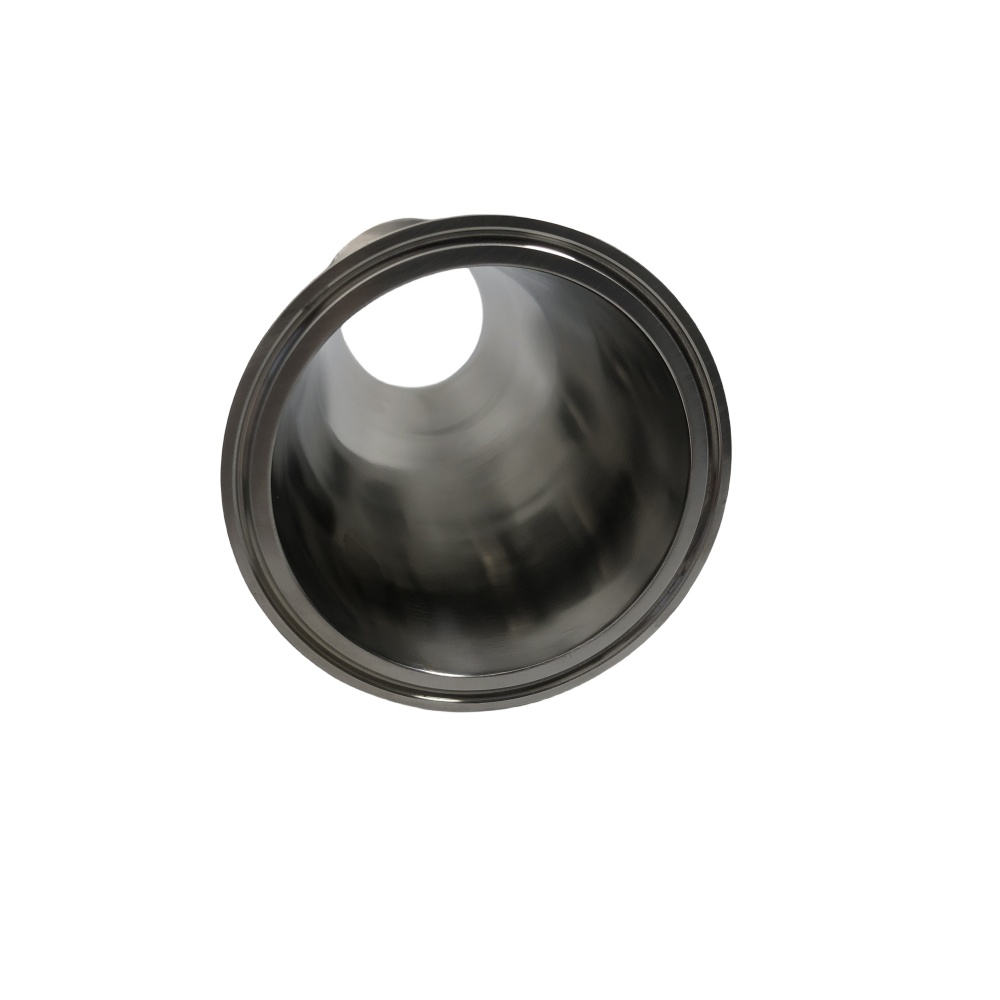

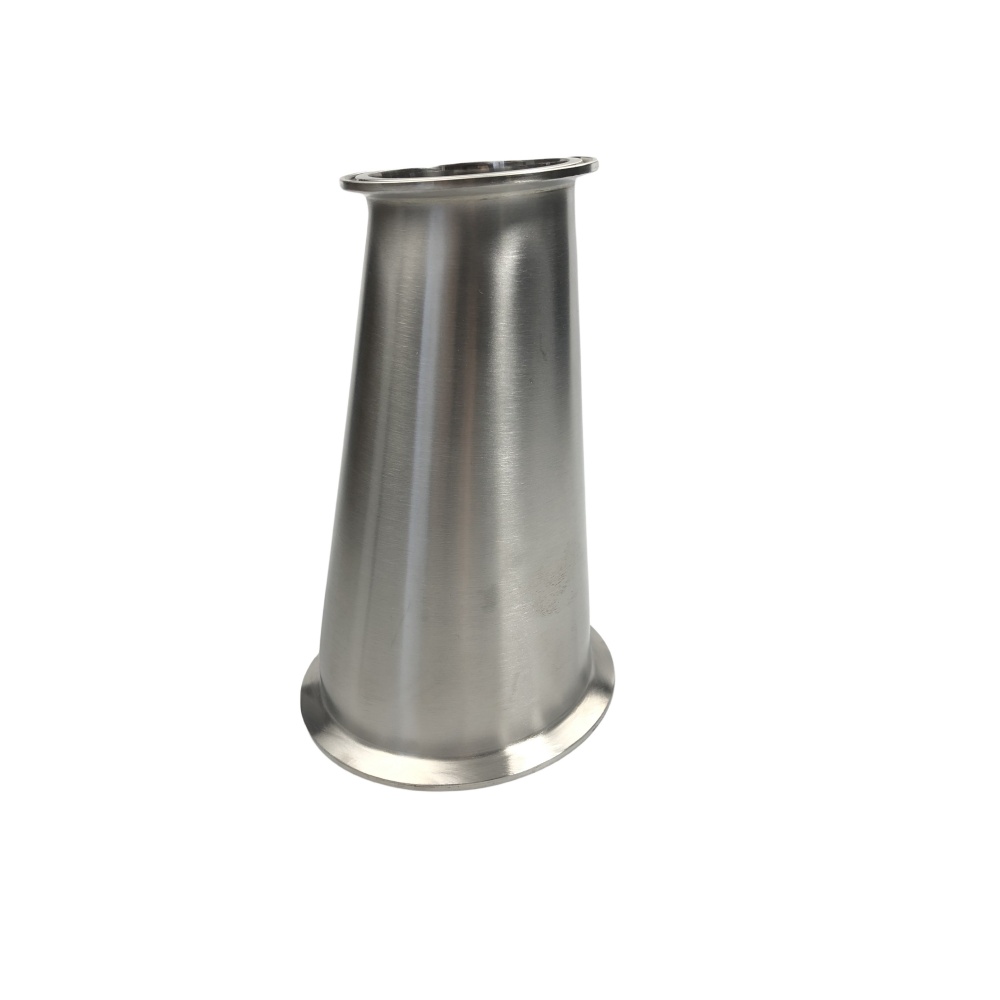

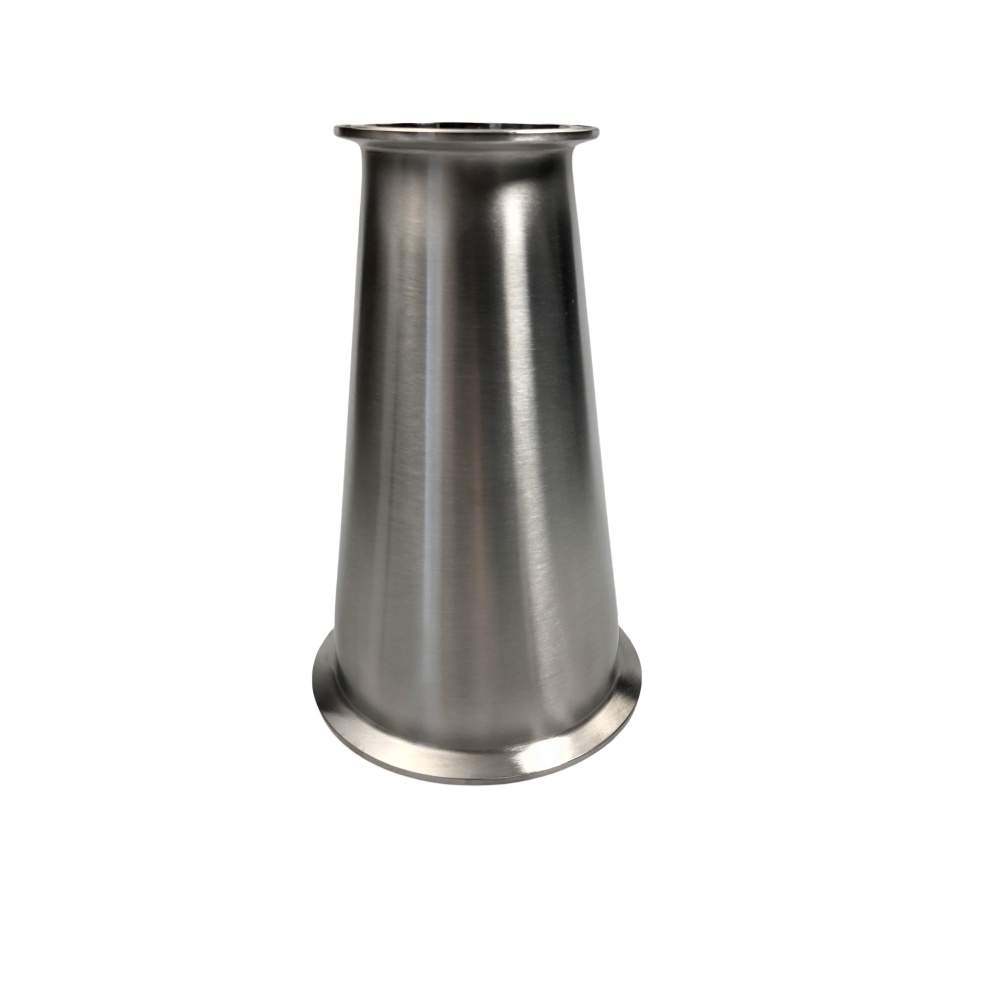

Sanitary Clamp Fittings - eccentric Reducer
Application
Eccentric reducers are a critical component in sanitary clamp fittings, designed to ensure smooth transitions between different pipe sizes while preventing fluid buildup. Perfect for horizontal pipeline applications, these reducers are made from high-quality stainless steel (304 or 316L) to meet stringent hygiene standards. Widely used in industries such as food and beverage, pharmaceuticals, and biotechnology, they provide reliable performance, easy installation with tri-clamp connections, and superior resistance to corrosion.
Material Options
• 316L Stainless Steel
• Optional 304 Stainless Steel for less aggressive applications.
Design Features
• Eccentric Body: Maintains uninterrupted flow and eliminates pooling in horizontal piping systems.
• Tri-Clamp Connections: Standard clamp ferrules for quick assembly/disassembly.
• Compact Length: Ensures a space-efficient solution for tight systems.
Certifications
• 3A Sanitary Standards for food-grade applications.
• ASME BPE Compliance for biopharmaceutical processes.
• Optional compliance with ISO/DIN Standards for export.
Surface Finishes
• Interior: Ra ≤ 0.8 μm (standard for hygienic applications).
• Exterior: Matte or polished finish for aesthetic or functional requirements.
Pressure Rating
• Designed for sanitary systems up to 150 PSI (based on size).
Temperature Resistance
• Capable of withstanding CIP/SIP (Clean-in-Place and Steam-in-Place) processes at temperatures up to 150°C (302°F).
