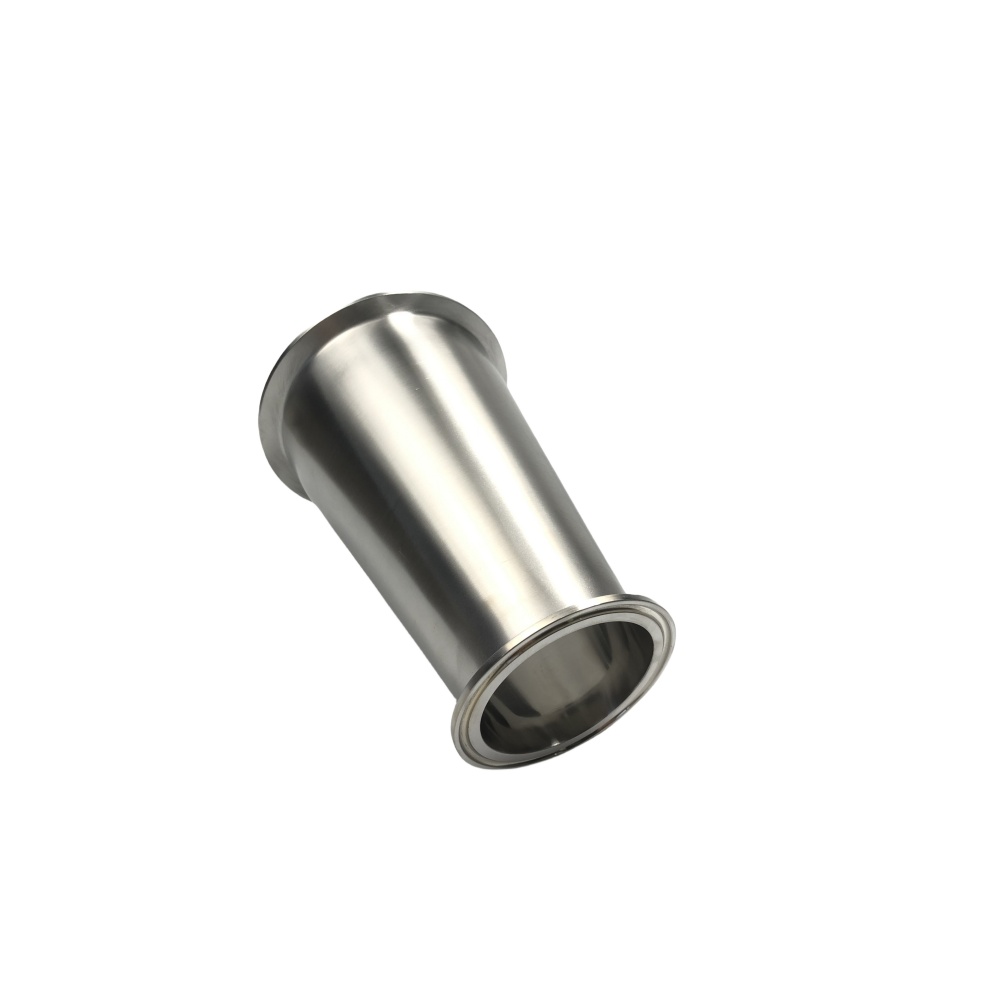

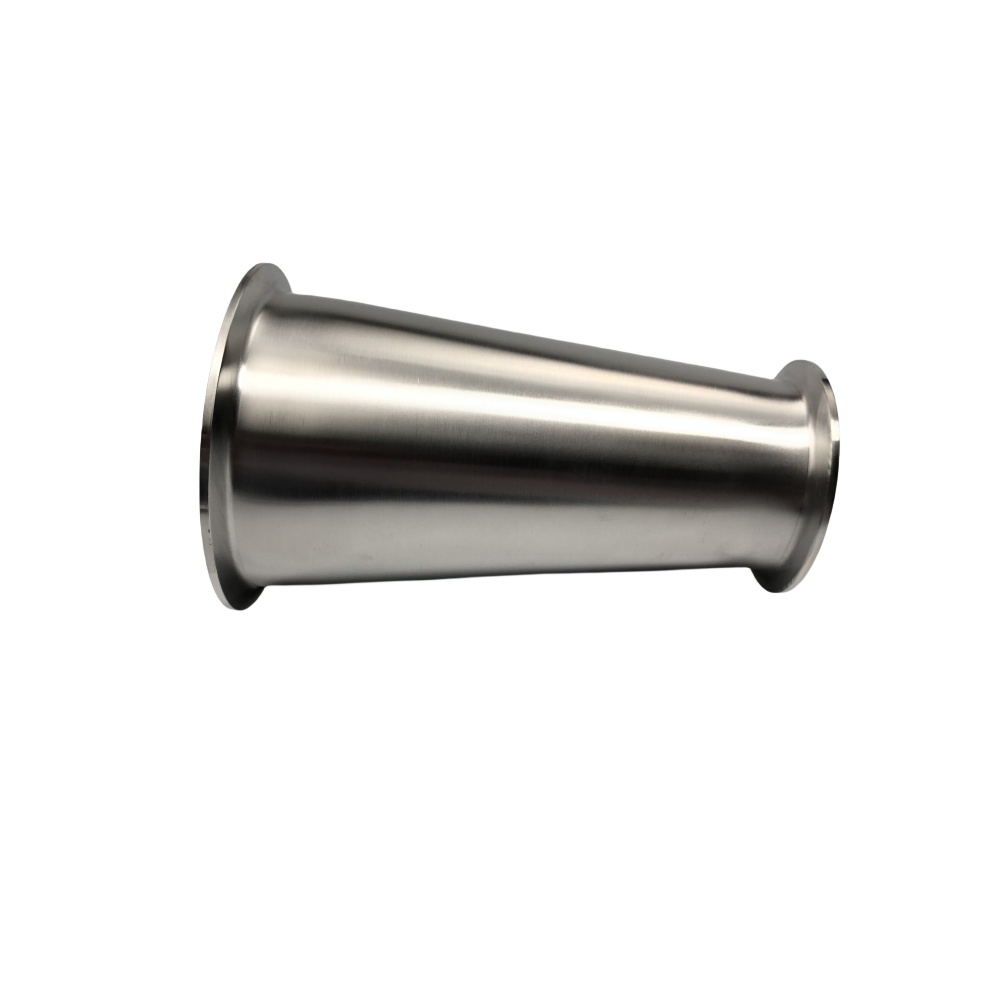

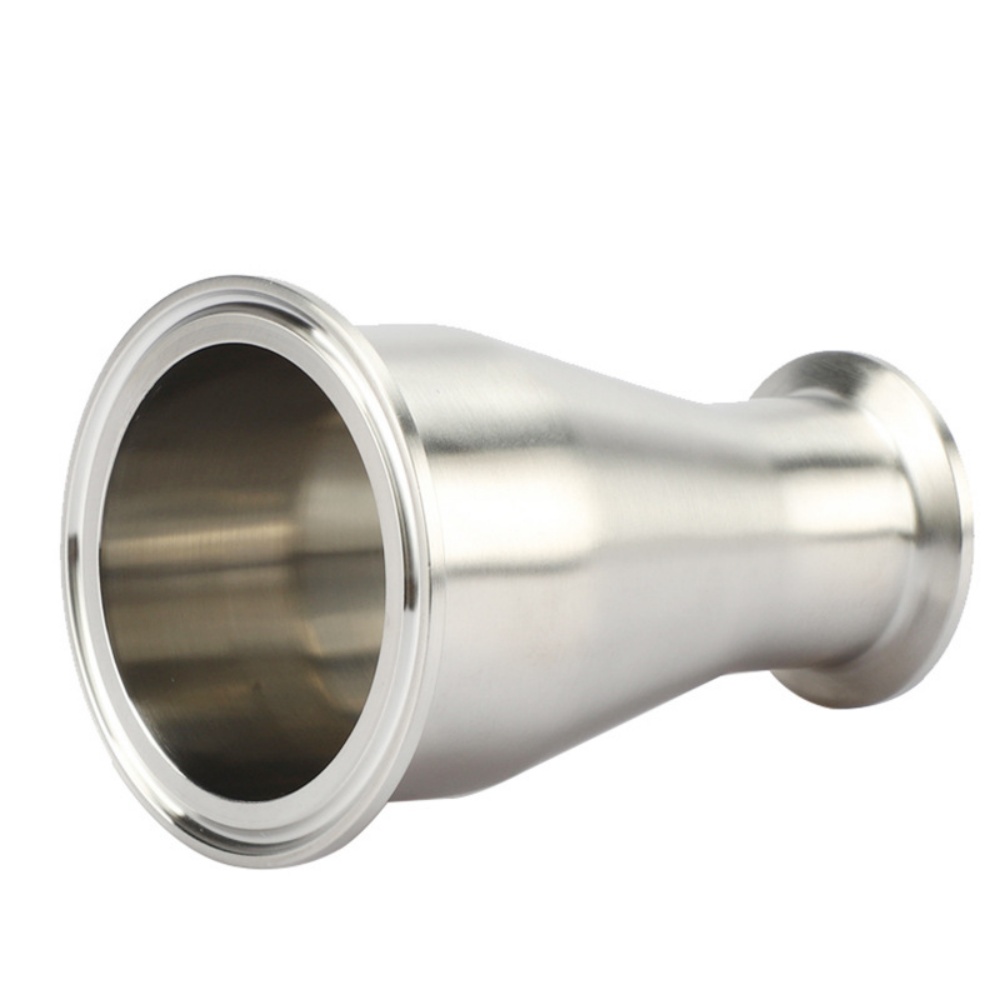

Sanitary Clamp Fittings - concentric Reducer
Application
Stainless steel concentric clamp reducers allow for the connection of tubing of various sizes. Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. Available in 304 and 316L stainless steel alloys, making it durable and sanitary. Tri-Clamp style connections offer a quick and easy way to disassemble line processing for access to process media and cleaning solutions. The product is 3A certified for sanitary-grade line processing equipment in the food and beverage industry.
Material
Body: AISI 304 or AISI 316L
Name: |
Tri-Clover elbow reducer |
Sizes: |
3/4'' * 1'' - 4'' * 3'' |
MOQ: |
50 pcs |
Certificates: |
CE, ISO9001:2015 |
Standard: |
3A, ISO, DIN, SMS, RJT, IDF, BS, JIS |
Material: |
Stainless Steel 304 / 316L |
Working pressure: |
250 PSI |
Application: |
Widely used in beverage, dairy, food, pharmacy, beer, biomedical cosmetics and other industries. |
Advantage: |
Corrosion resistance, health, prevent liquid retention, leak proof, safe and reliable use |
Features
The sizes fit for stainless steel sanitary tubing and piping dimensions
Max. operating pressure rating of 10bar for small sizes
Chemical components carrying in the materials meet the requirement from hygienic and sanitary industry
The elbows with straight end is designed for capacity of orbital welding
Easy for welding free from rust
