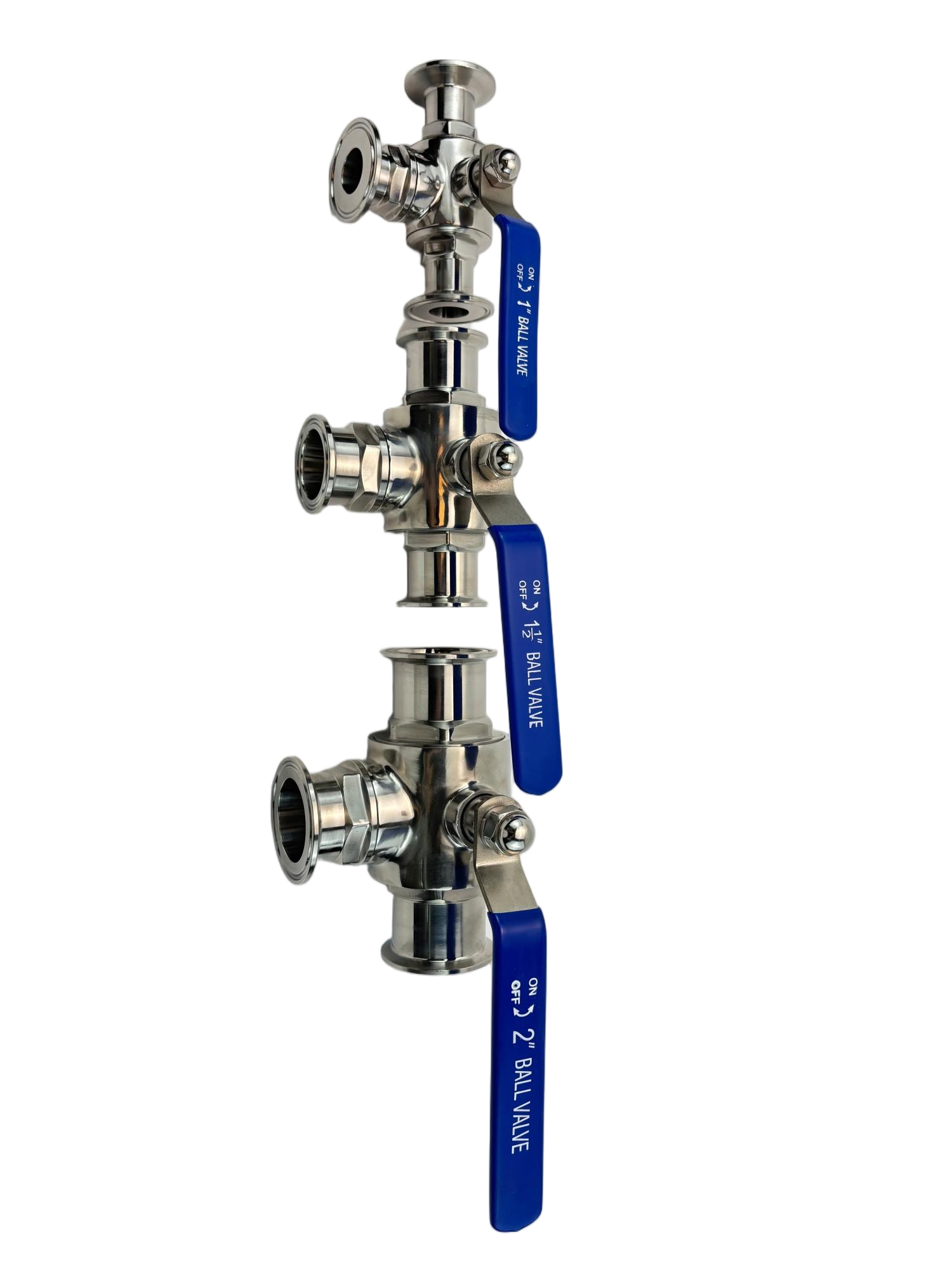

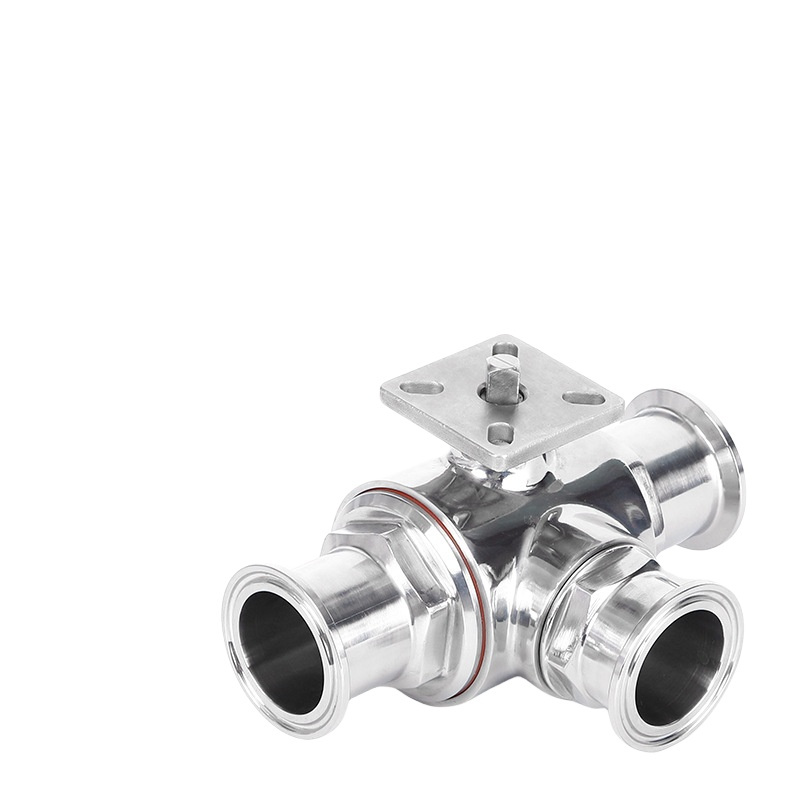

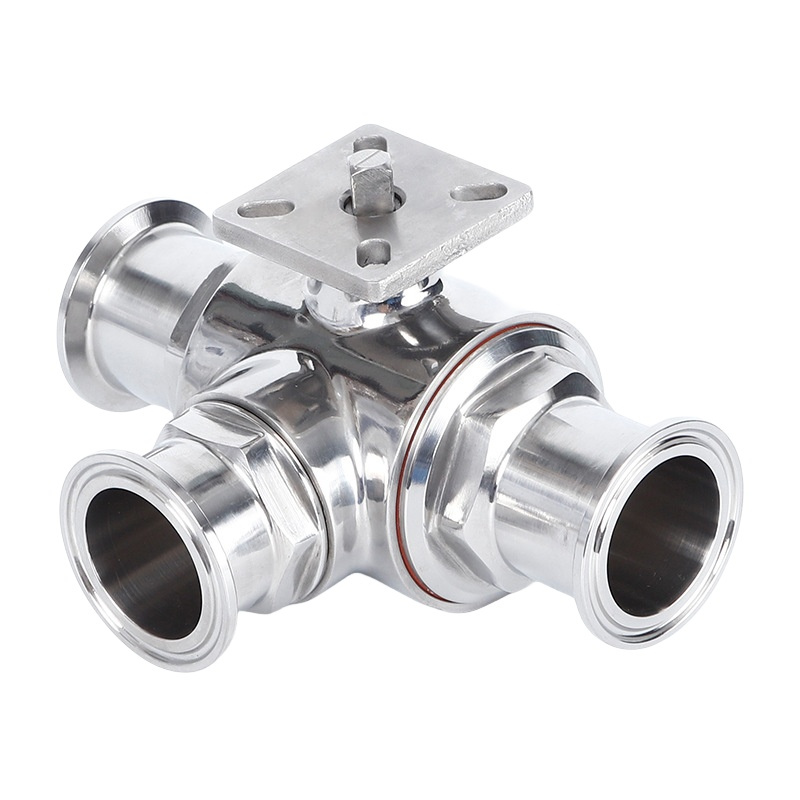

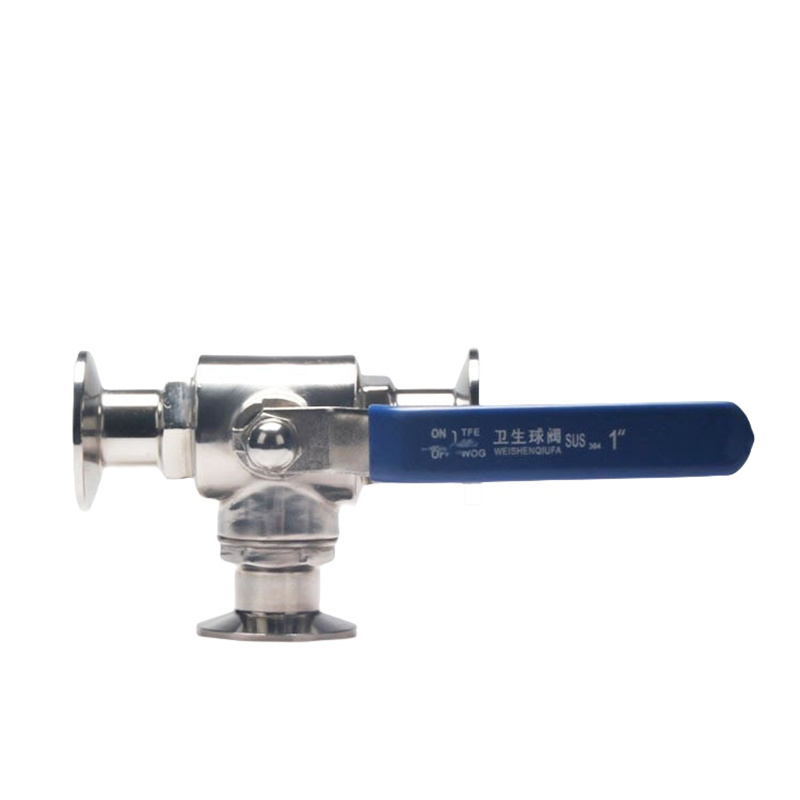

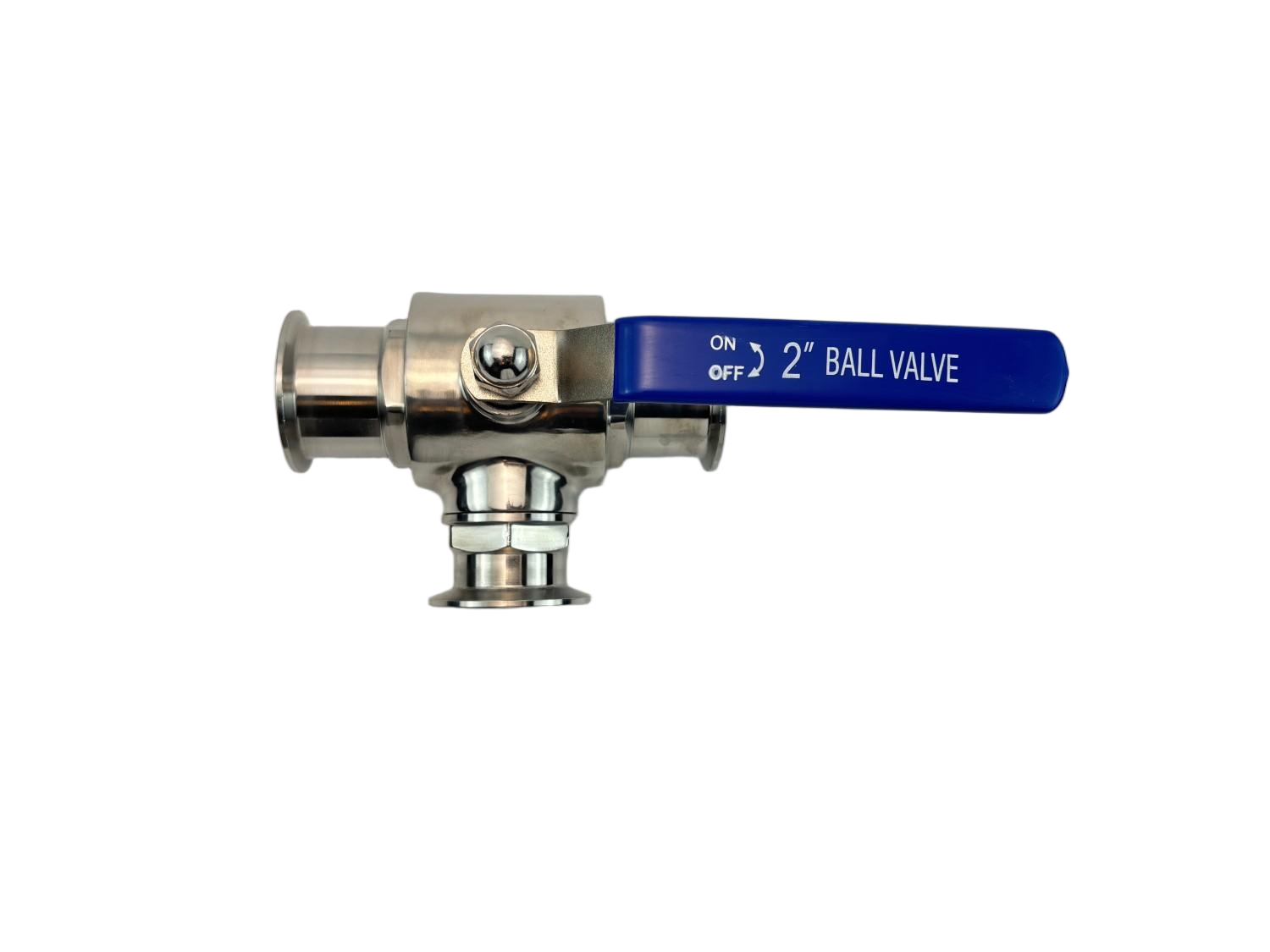

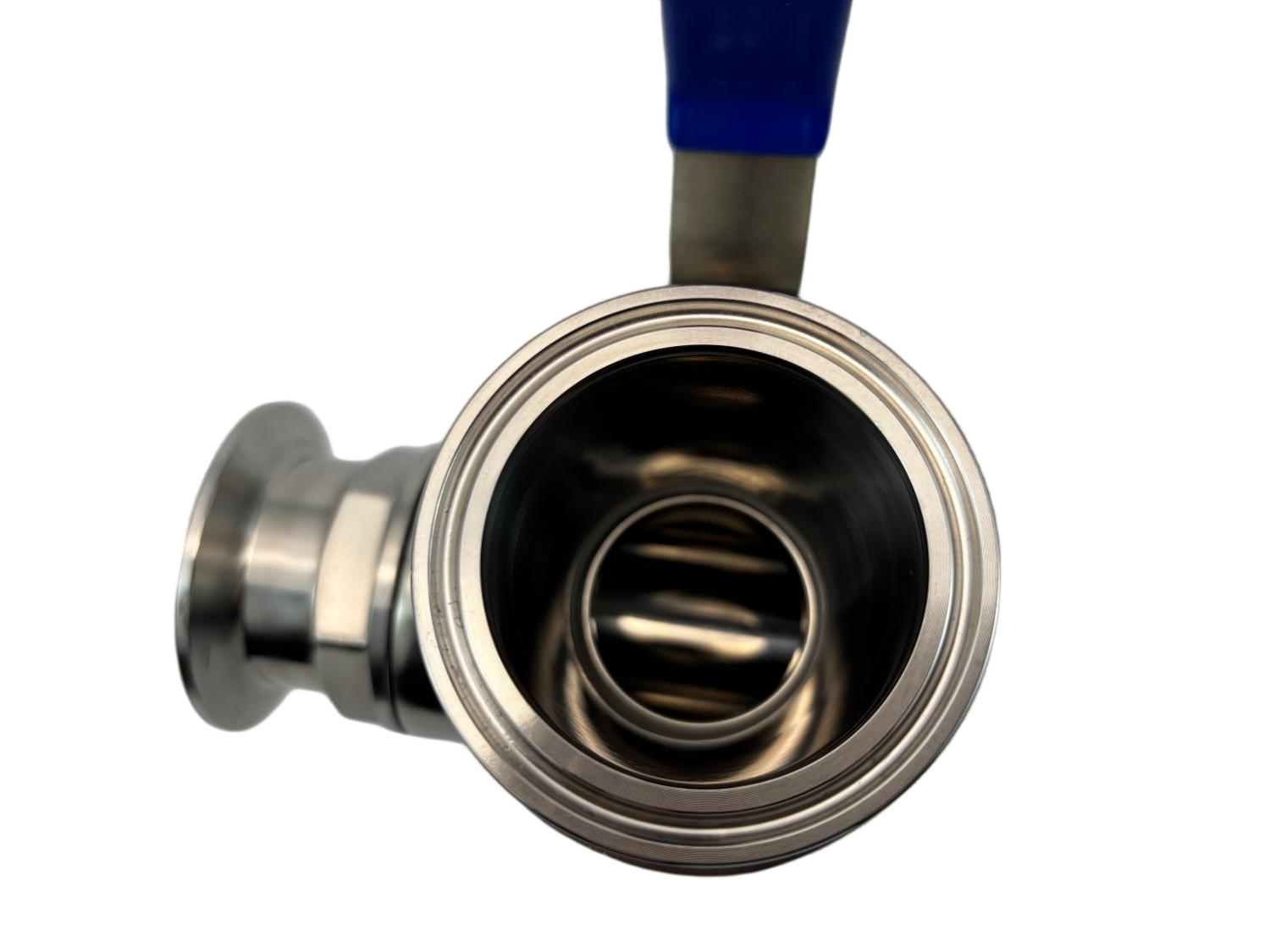

QF Sanitary Three Way Ball Valve
Application
The QF series ball valve is an efficient fluid control device. Whether it is manual operation or automatic control, these ball valves can be effectively used for material transmission and control. Designed to meet a variety of industrial needs, particularly in the food, beverage, pharmaceutical, cosmetics and chemical industries, the QF Series ball valves demonstrate exceptional performance and reliability.
In the food and beverage industry, QF series ball valves use materials that meet hygienic standards to ensure that fluids are not contaminated during transmission and keep products pure and safe. In the pharmaceutical and cosmetics industries, the precise control capabilities of ball valves enable them to meet stringent production requirements, ensuring quality and consistency in every batch. In addition, in the chemical industry, QF series ball valves can withstand high temperature and high pressure working environments, adapt to various corrosive media, and ensure the safety and efficiency of the production process.
Whether operated manually or automatically, QF series ball valves have excellent sealing performance and durability, and can maintain stable performance over a long period of use. Its simple structural design makes maintenance and replacement more convenient and reduces operating costs. In short, the QF series ball valve has become an ideal choice for fluid control in various industries with its excellent performance and wide applicability.
Materials
Valve body: SS304,SS316L
Valve seat: Encapsulated PTFE
Gasket:EPDM ,Silicone
Options: Three-way ball valve;T type,L T type ball core.
With/without purge ports for CIP/SIP
Design Features
Maintenance free operation
Compact and portable
Small operating torque
Valve seals and gaskets comply with FDA 177.2600
Manual handle, pneumatic actuator, electric actuator are interchangeable.
Technical Specification
Sizes available from DN50-DN65
Max. working pressure (PTFE): 10bar (147psi)
Temperature range (PTFE): -20 ~ 180℃
End connections:threaded
Surface treatment: Ra 16 ~ 32μin (0.4 ~ 0.8μm)
Supply pressure for air actuator: 70 ~ 115psi
