316L Stainless Steel + Electrolytic Polishing: Decoding the Clean Manufacturing Code of High-End U-Shaped Diaphragm Valves
This product, with its superior material foundation and exceptional surface treatment process, has become an indispensable "core" configuration in the fields of biopharmaceuticals, fine chemicals, and semiconductor cleanroom engineering.
Material Foundation: Why 316L?

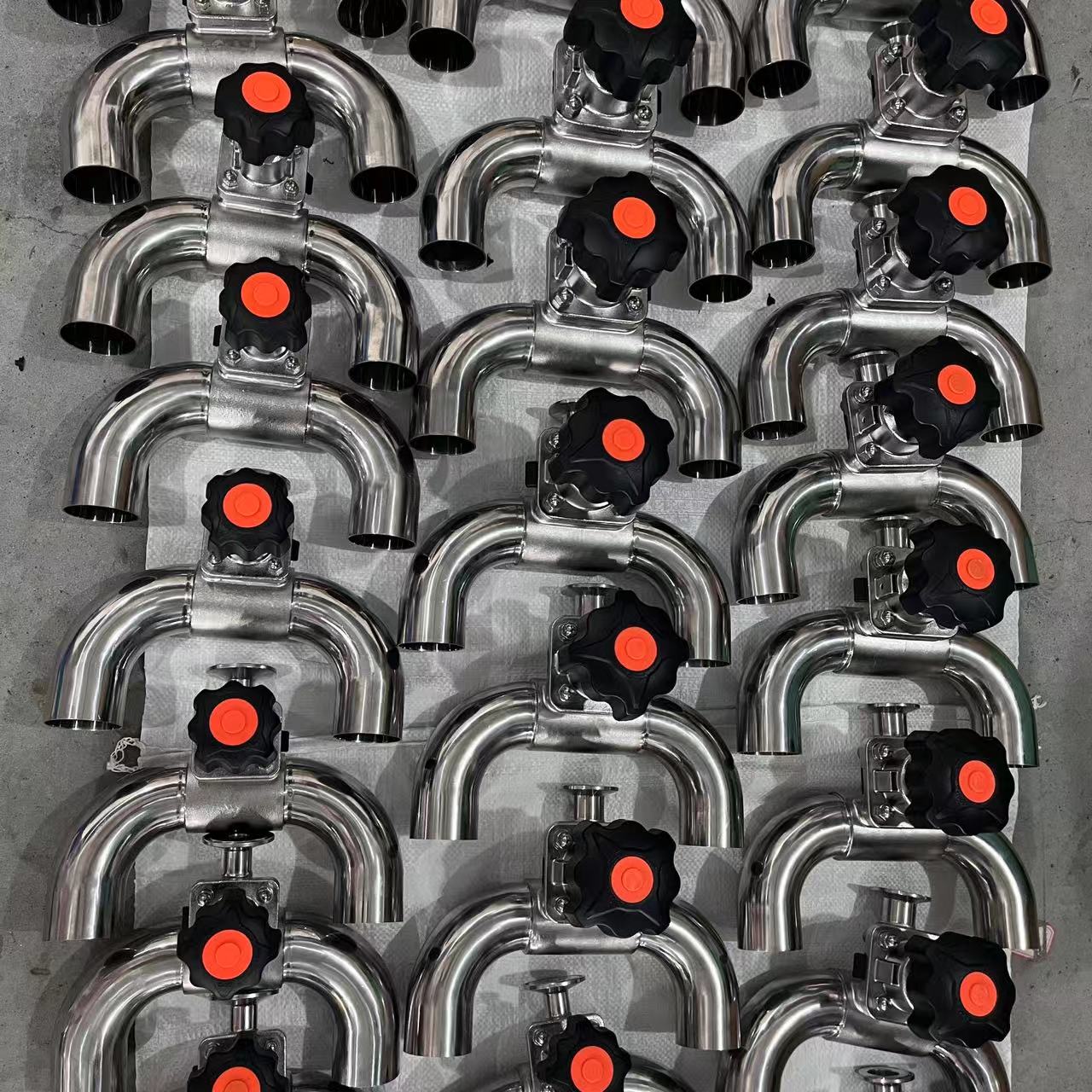

The solid texture of the pipe fittings in the image stems from their use of high-quality 316L ultra-low carbon stainless steel. As an upgraded version of austenitic stainless steel, 316L, due to the addition of molybdenum (Mo), exhibits exceptional resistance to pitting and crevice corrosion. Additionally, its extremely low carbon content (≤0.03%) effectively mitigates the risk of "intergranular corrosion" during welding.
This means that even under extreme operating conditions containing chlorides or high-temperature acids and alkalis, the valve can maintain structural stability without metal ion detachment due to corrosion, thereby avoiding "secondary contamination" of fluids. This is the core reason for its widespread application in vaccine production and water for injection (WFI) systems.
Craft Soul: "Mirror-like" Defense Enhanced by Electro-polishing
If 316L is the skeleton, then the electropolishing process endows it with a robust "immune system." As clearly visible in the image, the surface of the valve body exhibits an extremely reflective metallic luster. This is not merely mechanical polishing but rather a precise removal at the electrochemical micro-level.
Electrolytic polishing can reduce the surface roughness (Ra) of its inner wall to below 0.4μm or even 0.25μm. This ultra-smooth "mirror-like" effect holds two extremely significant implications:
- Ultimate ease of cleaning: Eliminates microscopic "dead corners" and burrs, allowing cleaning-in-place (CIP) and steam-in-place (SIP) solutions to effortlessly remove adhered residues and prevent biofilm formation.
- Corrosion Resistance Enhancement: During the electrolysis process, a dense passivation film forms on the metal surface, further improving the corrosion resistance limit of 316L stainless steel.
Function and Design: U-shaped Structure + Precision Diaphragm Control
Structurally, the valve features a U-shaped large elbow design, ingeniously addressing the need for 90-degree or 180-degree turns in confined pipeline spaces, thereby reducing "dead zones" and pressure losses in the pipeline system.
The side-mounted manual diaphragm valve assembly serves as the "heart" of control. The diaphragm design achieves complete physical isolation between the valve body actuator and the pipeline medium, ensuring fluid contact only with the highly polished 316L inner wall. The top-mounted black base with orange anti-slip knob not only stands out visually but also features a multi-rimmed gear design, guaranteeing stable grip force and precise torque control even in challenging environments such as wet conditions or when wearing gloves.
