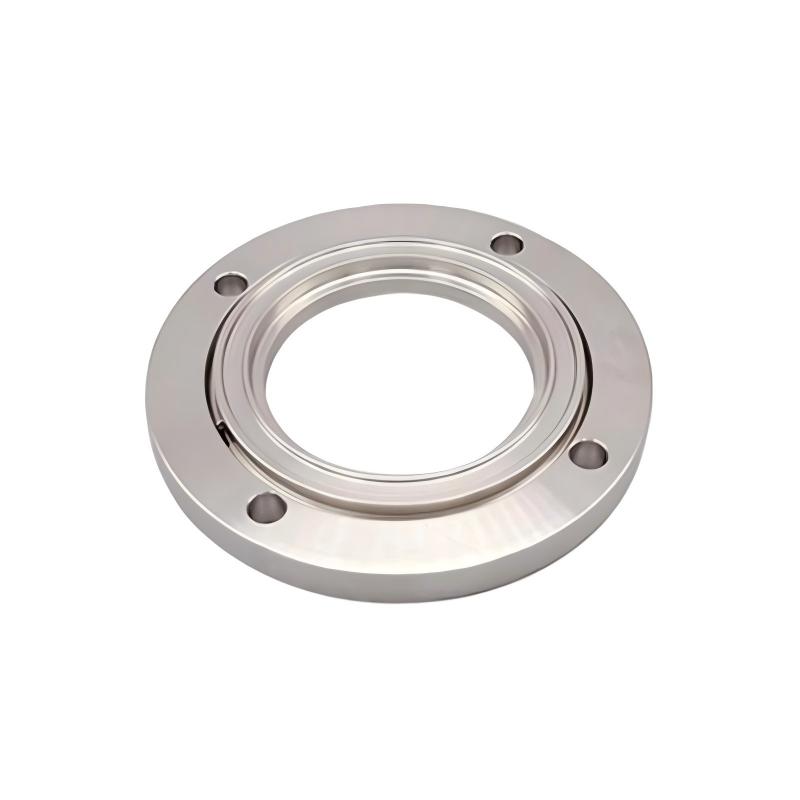

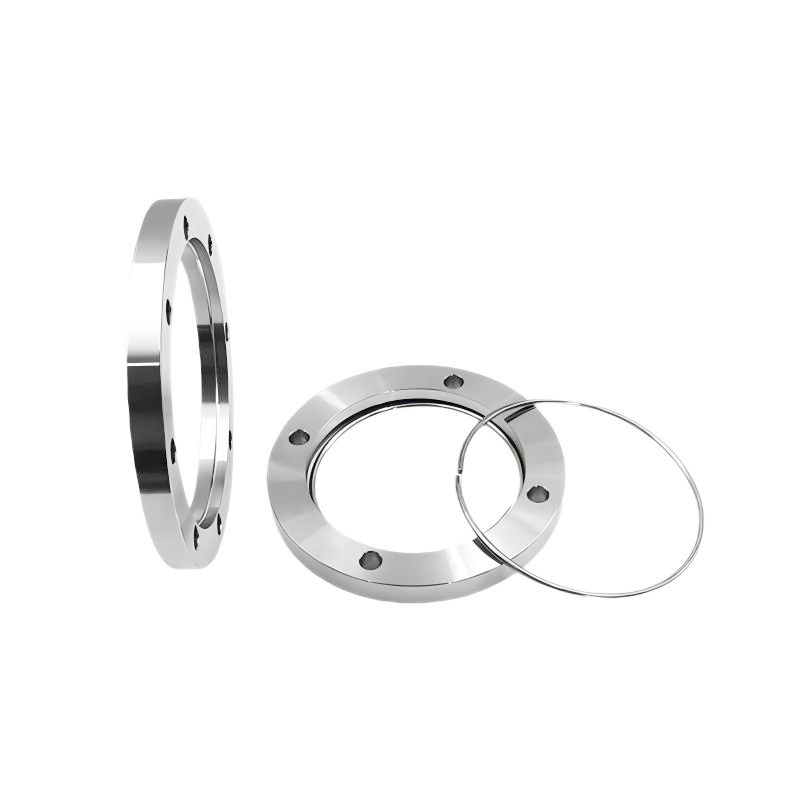

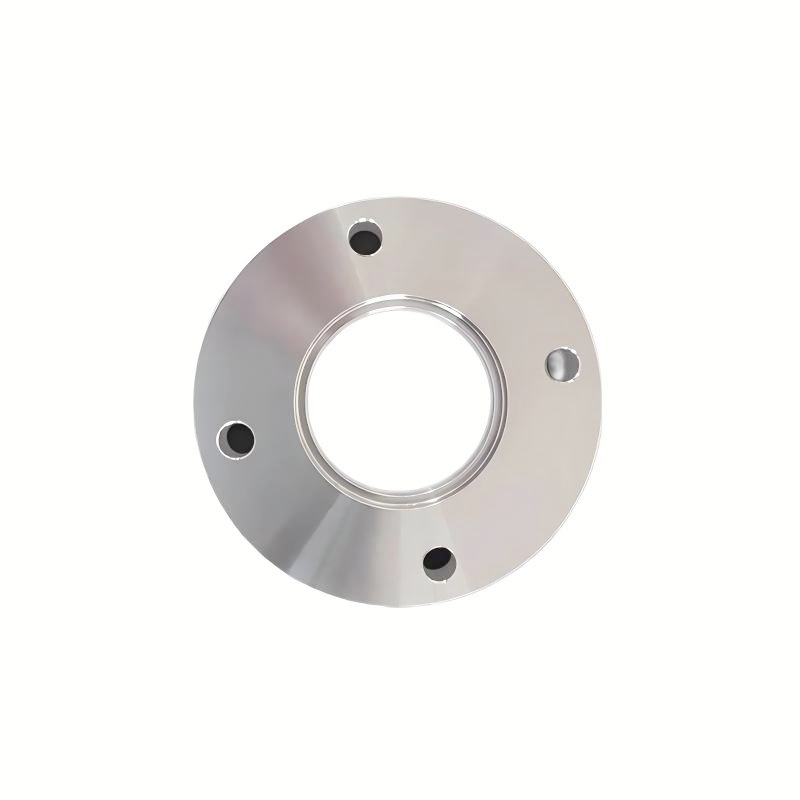

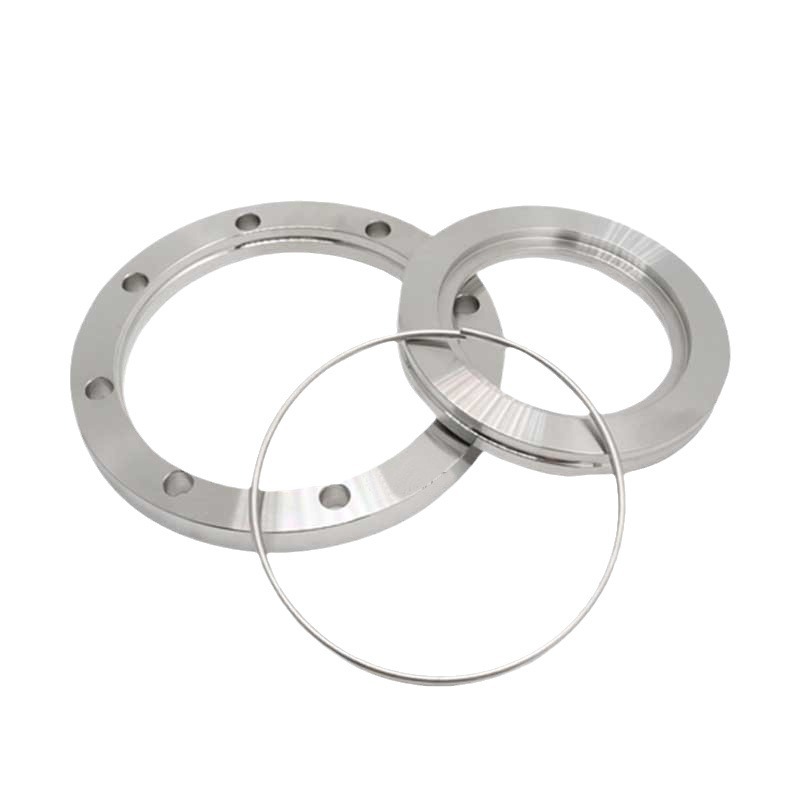

ISO Rotatable Bolt Ring Stainless Steel Pipe Flange
Features
The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.
Specifications
· Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
· Clamps:Aluminum or Stainless Steel 304
· O-Ring:FKM/NBR/EPDM
Size:KF10-KF50
Vacuum range
Elastomer seal: >= 1 x 10-8 Torr
Temperature range
Viton: -50°C to 200°C

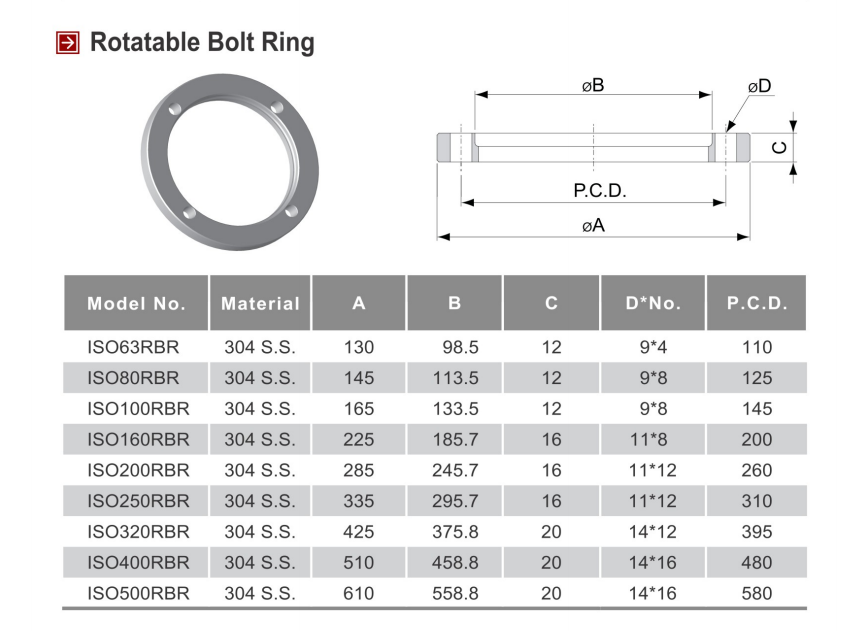

Rotatable Bolt Ring
*Material:SS304 SS316L
