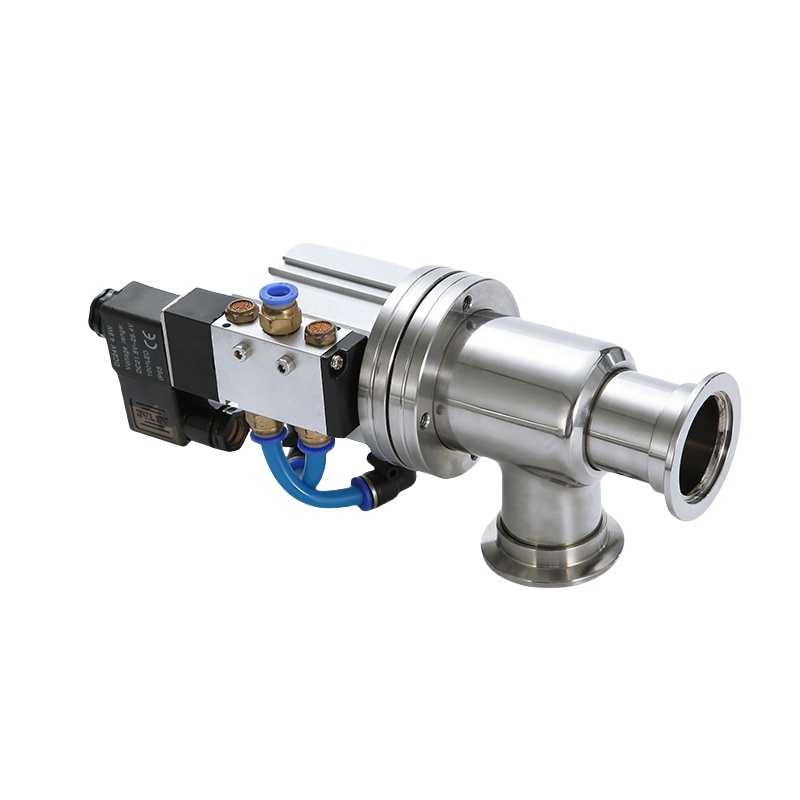

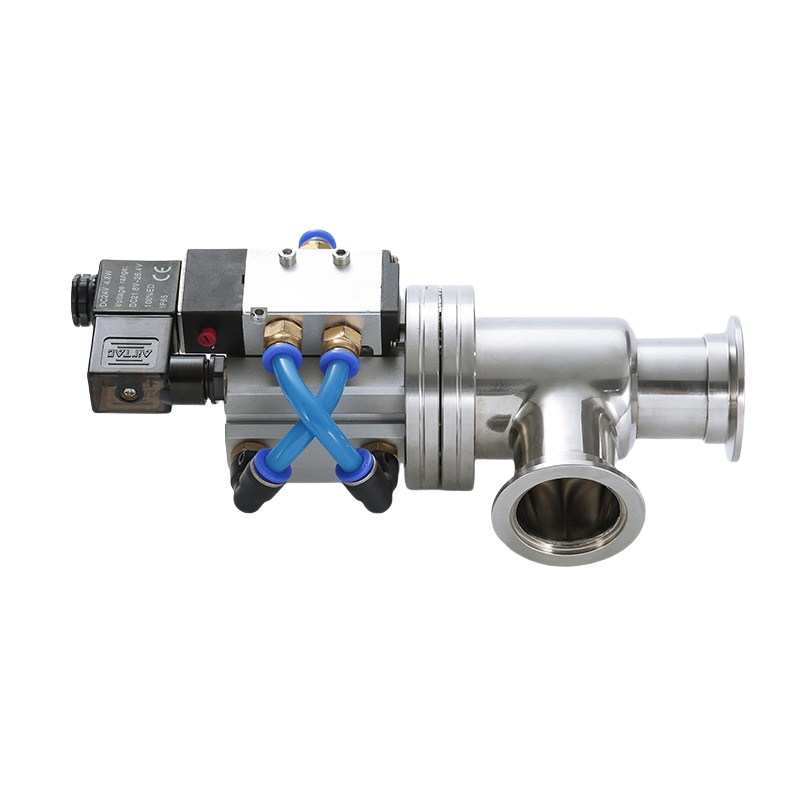

High vacuum pneumatic angle valve

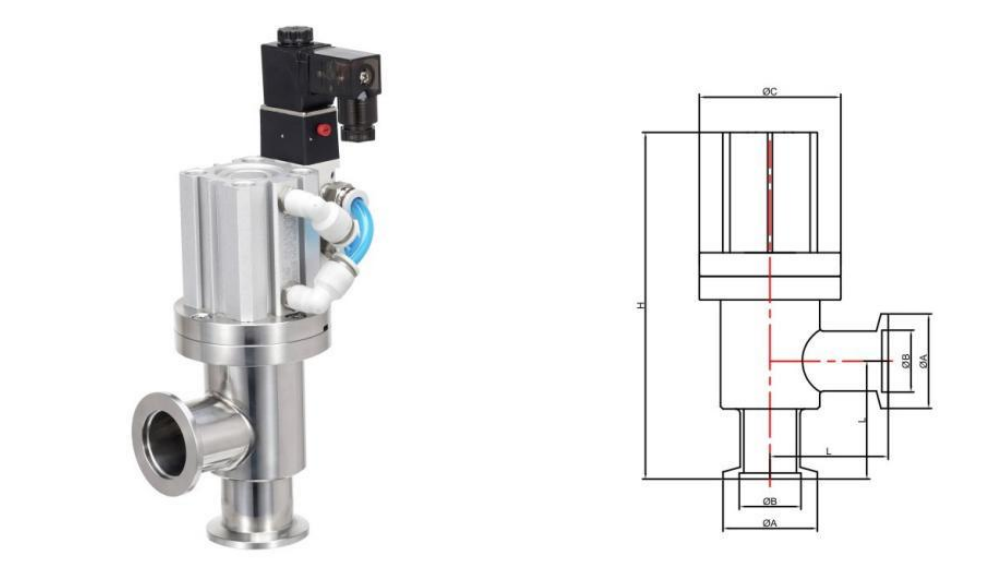

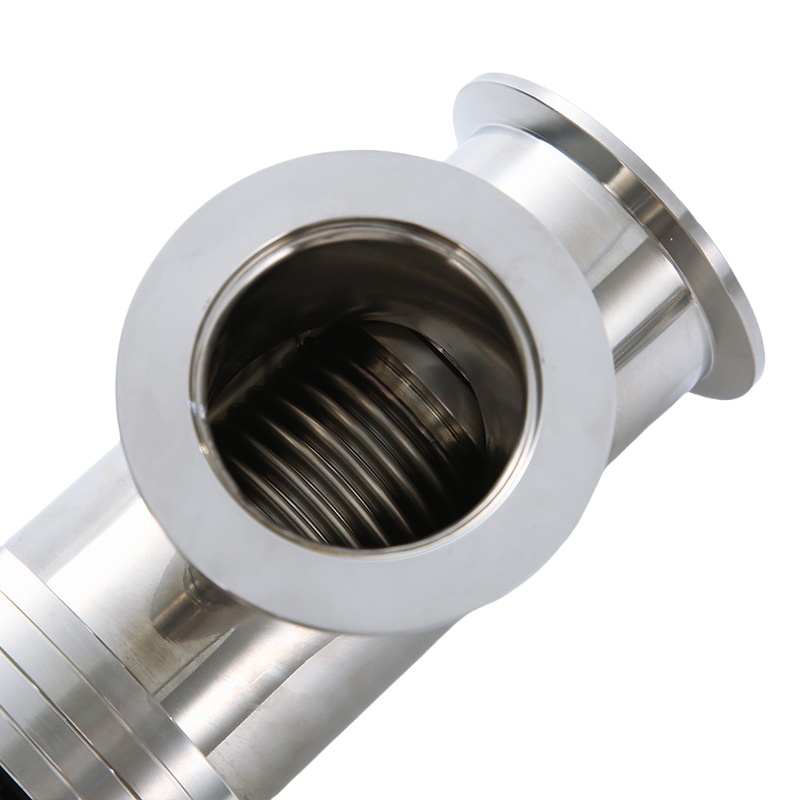

LFV  high vacuum angle valves are devices that regulate the flow of gases,fluids or materials through a structure or aperture by opening,closing or obstructing a port or passageway.Angle valve assembly consist of an actuator,a poppet and a valve body.The actuator provides the power to position or transport the valve's poppet which is attached to the valve's body via a circular bonnet flange.  The poppet closes or opens one of the valve's body ports.The valve body is a vacuum tight chamber that is screwed,flanged  or welded into a larger vacuum vessel or system.

Standard Features

■ UHV, HV series ■ CF, ISO KF, ISO LF flange and tube weld port connections. ■ Manual and Electropneumatic actuators ■ 220VAC air solenoid valve ■ FKM elastomer poppet seal ■ Welded bellows actuator seal ■ TIG welded internal body joints or precision forged body ■ Electropolished or mechanical polished interior and exterior structures.

Option Features ■ 24VDC air solenoid valve ■ Magnet, Position sensor(2ea)
