Fermentation Tank Air Filter/Breather
Features
Clean breathing, peaceful fermentation.

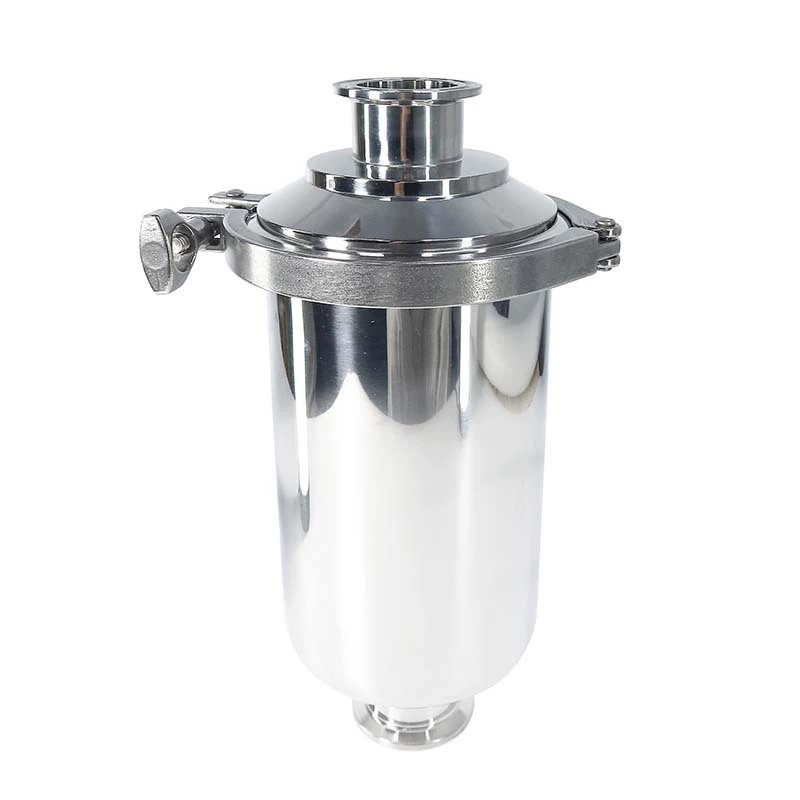

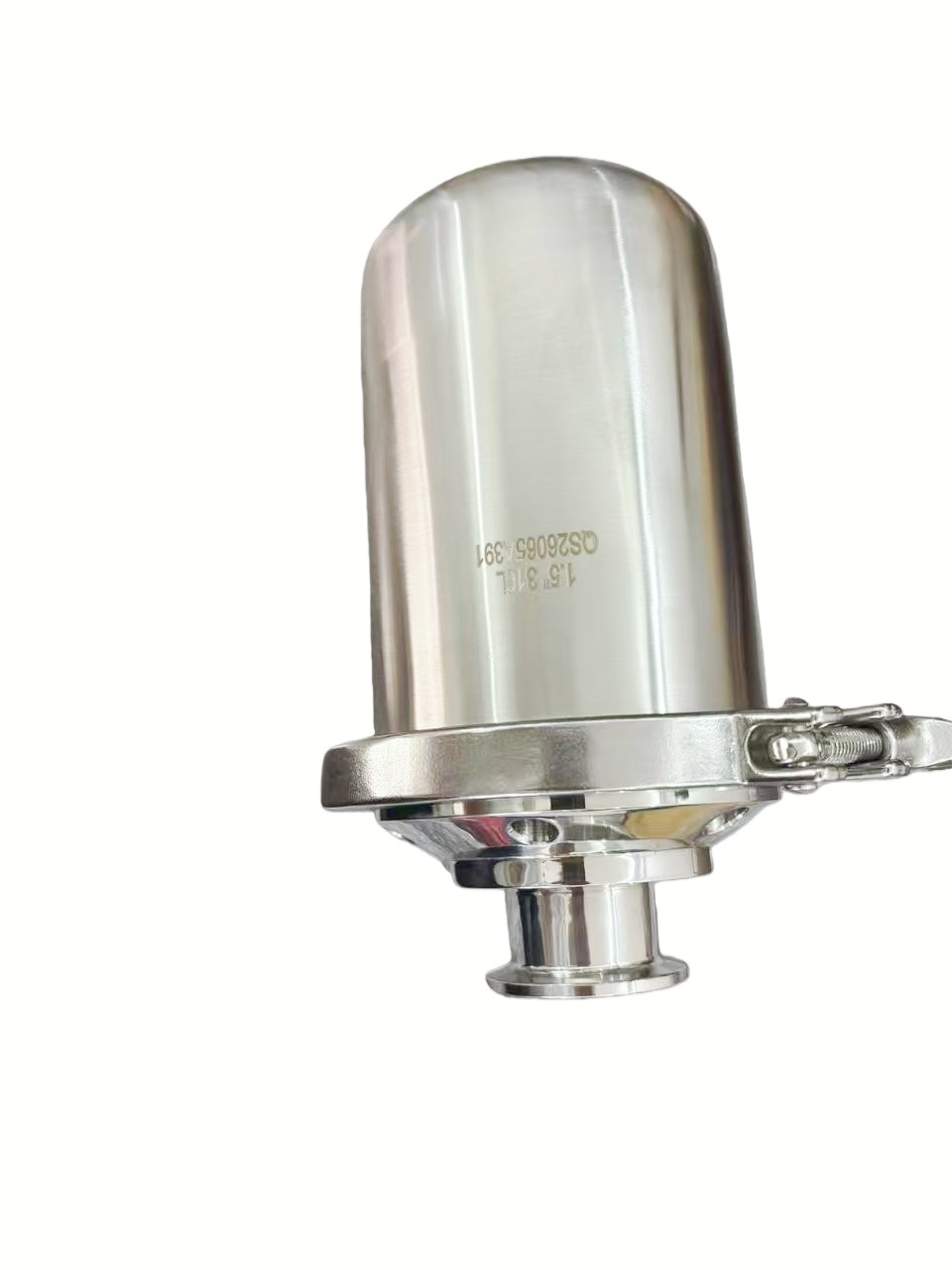

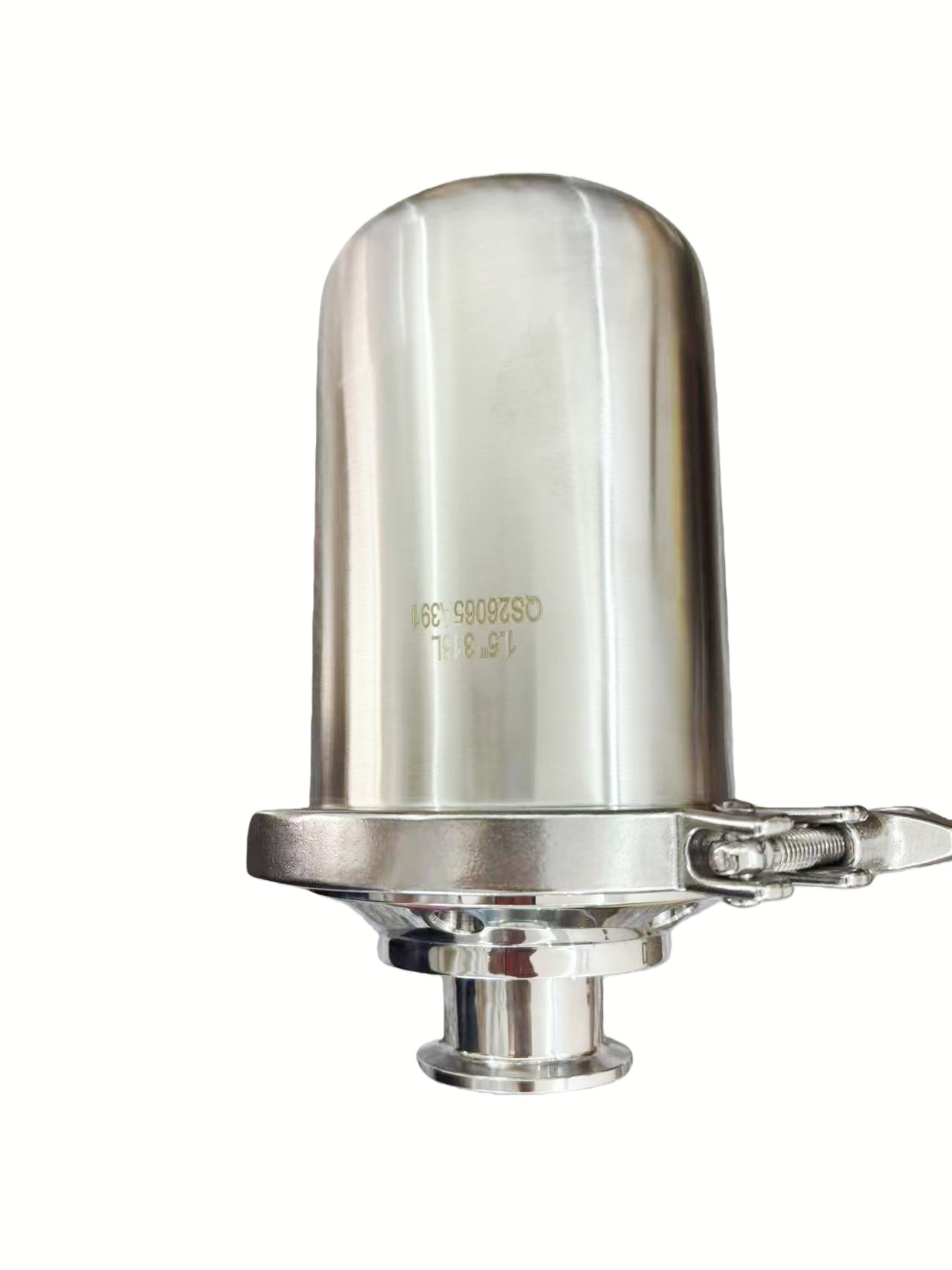

This product is a sanitary grade stainless steel air Breather, with a clamp quick installation design that is easy to disassemble and maintain. 0.22 μ m high-precision PP filter element efficiently intercepts bacteria and ensures a sterile environment inside the tank. Internal and external mirror polishing, no dead corners and easy to clean. Support customization of 2.5/5-inch and 222/226 interfaces, suitable for various fermentation tanks and tank breathing ports.
Specifications
·Specification: 2.5“/5 ”/10 “
·Material: 304 stainless steel, inner and outer mirror polished
·Filter element: PP (0.22/0.45 μ m), optional 222/226 interface
·Connection: clamp quick installation
·Pressure resistance: ≤ 0.6MPa
·Application: Air purification for fermentation tanks and storage tanks, effectively controlling the pressure and air quality inside the tanks
·Features: Customizable size, wall thickness, and pressure as neededFermentation tank air filter

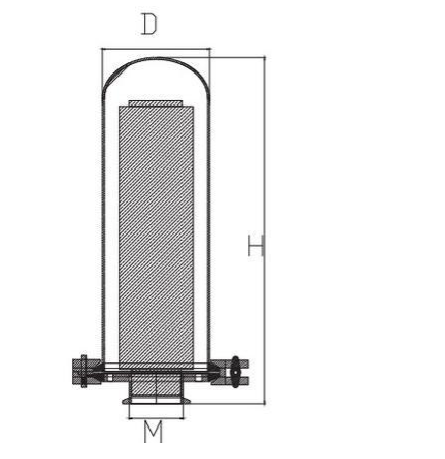

| Size |
H |
D | M |
| 2.5" | 130 | 76 | 38 |
| 5" | 190 | 102/89 | 38/51 |
| 10" | 330 | 102 | 38/51/63 |
| 20" | 560 | 102 | 38/51/63 |
Options
·Basic configuration: Stainless steel shell+PP filter element (0.45 μ m, 222 interface)
·Upgraded configuration: PP filter element 0.22 μ m/226 interface/higher surface finish/customized size
·Optional options: PTFE hydrophobic filter element (resistant to high temperature steam), silicone sealing ring, pressure gauge interface.
