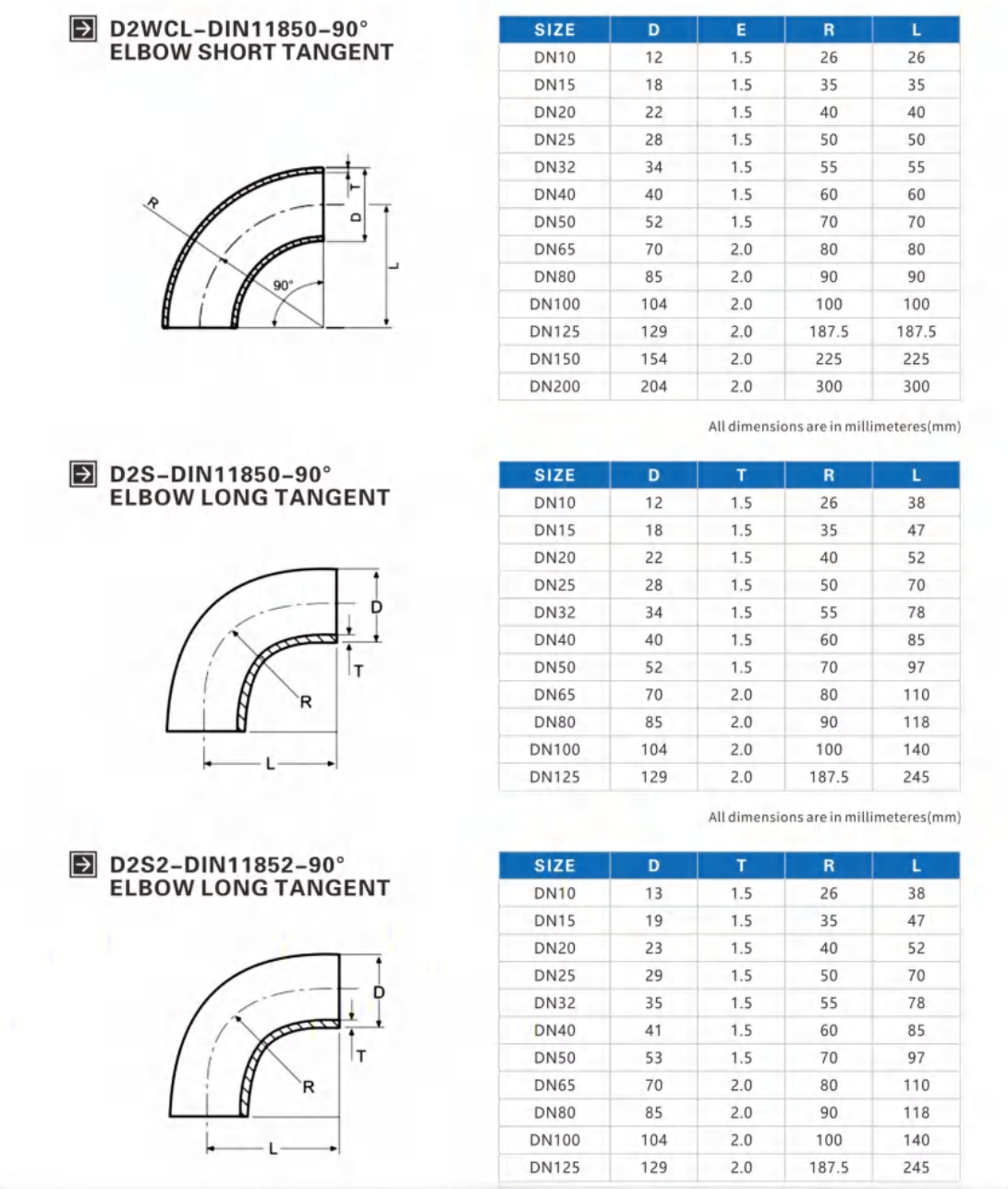

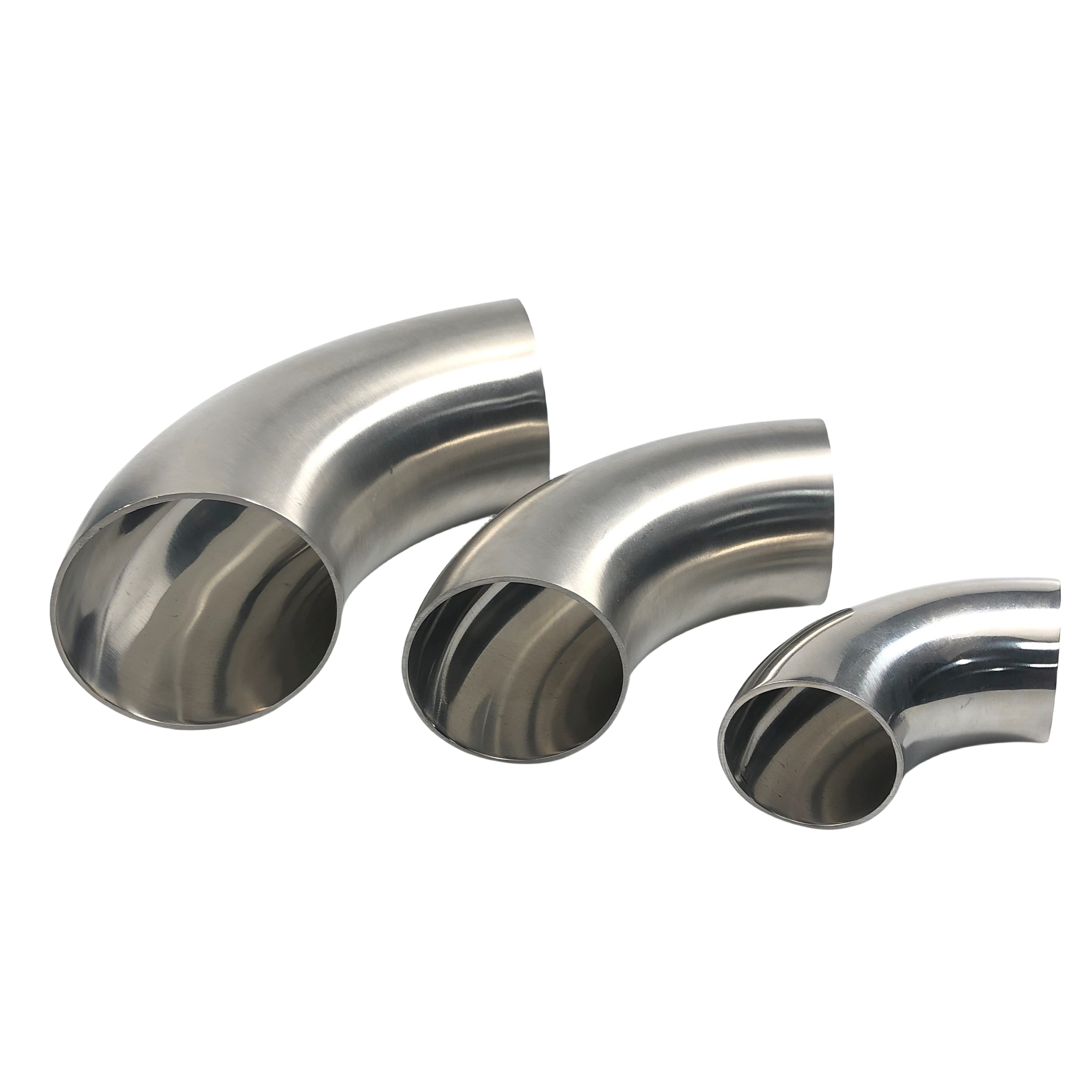

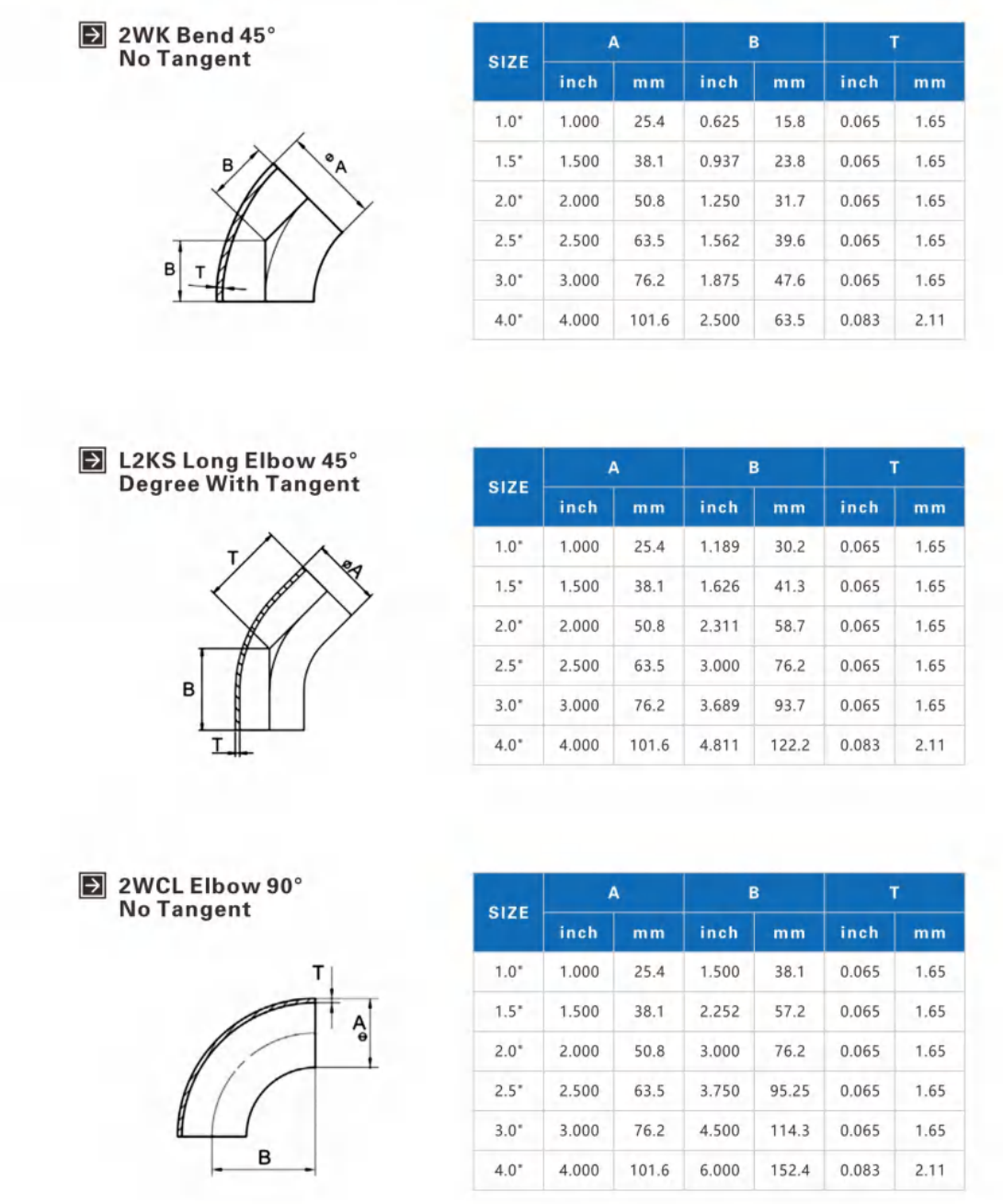

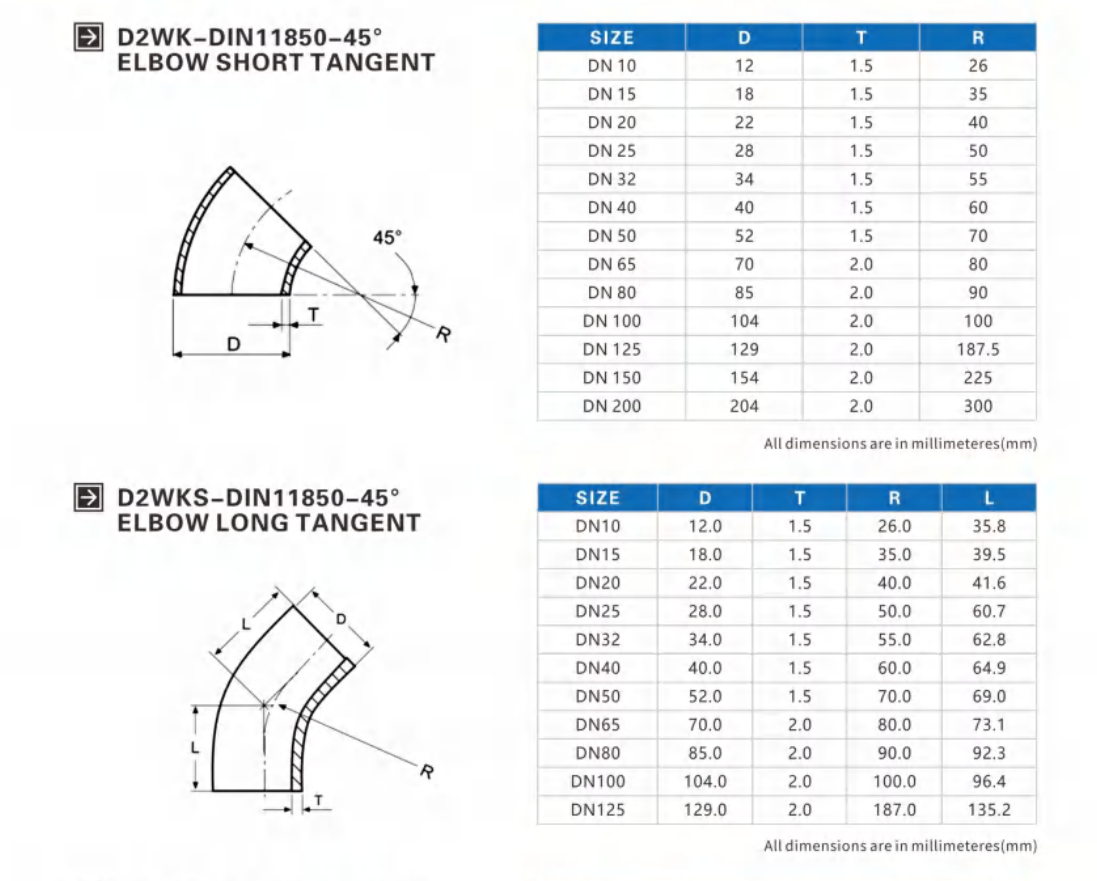

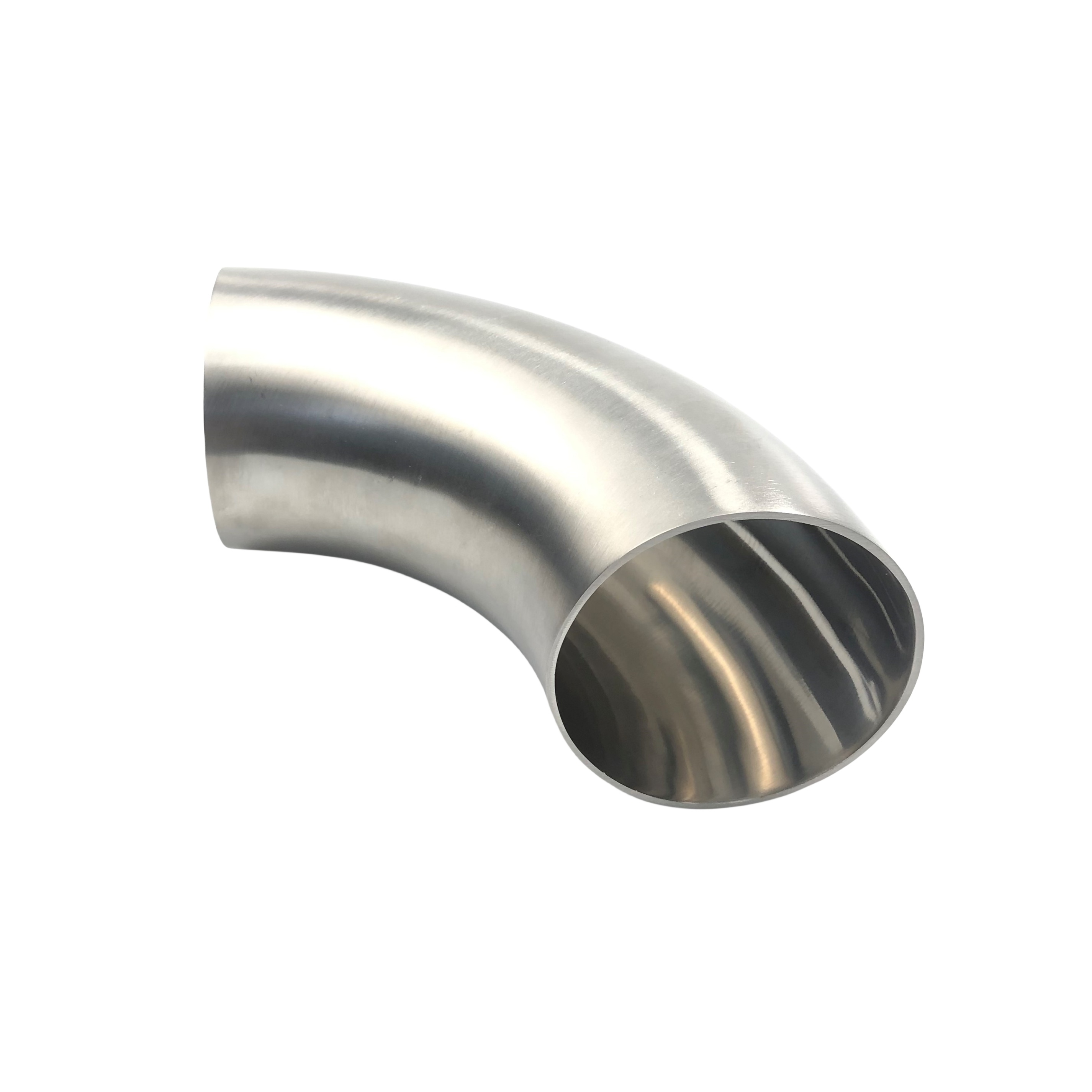

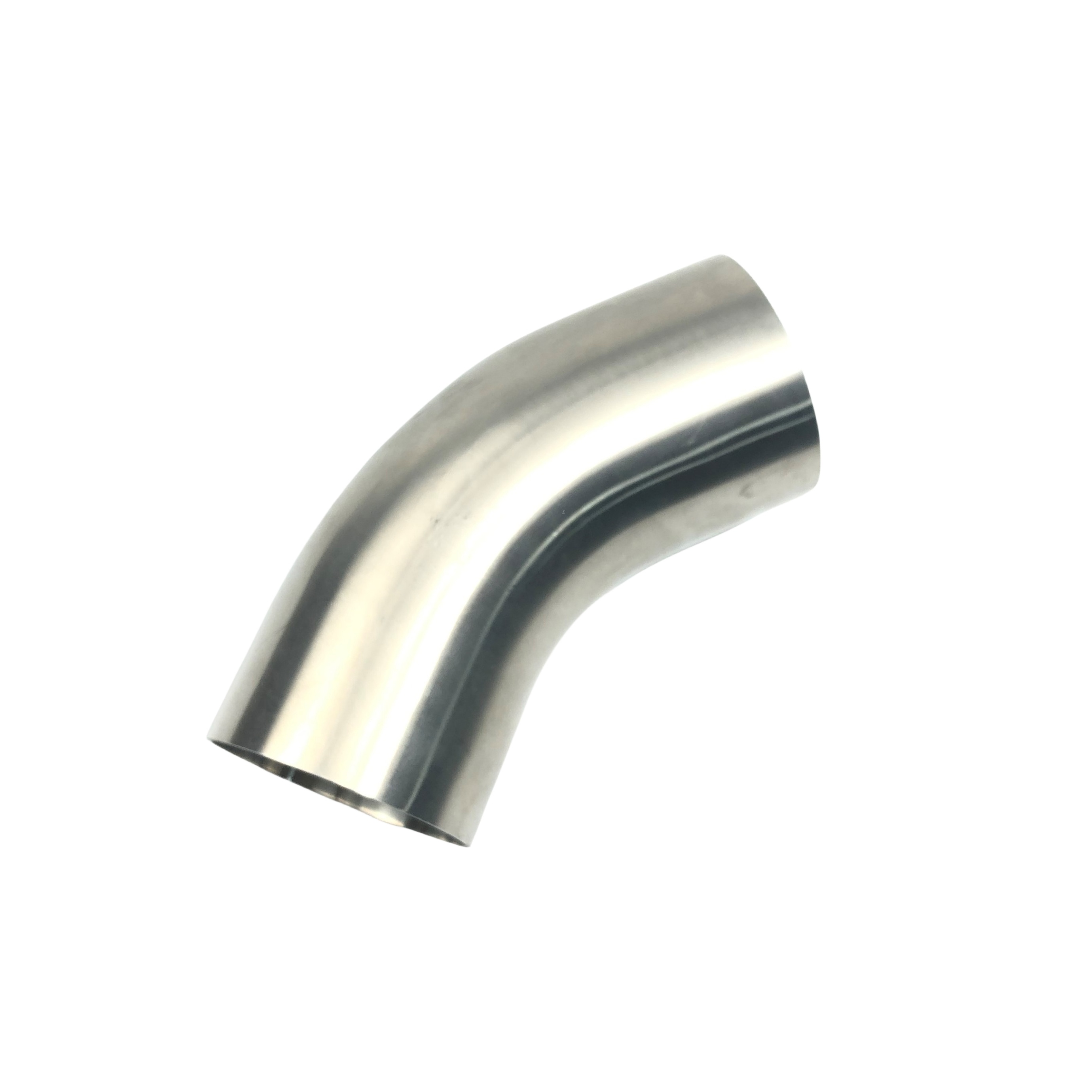

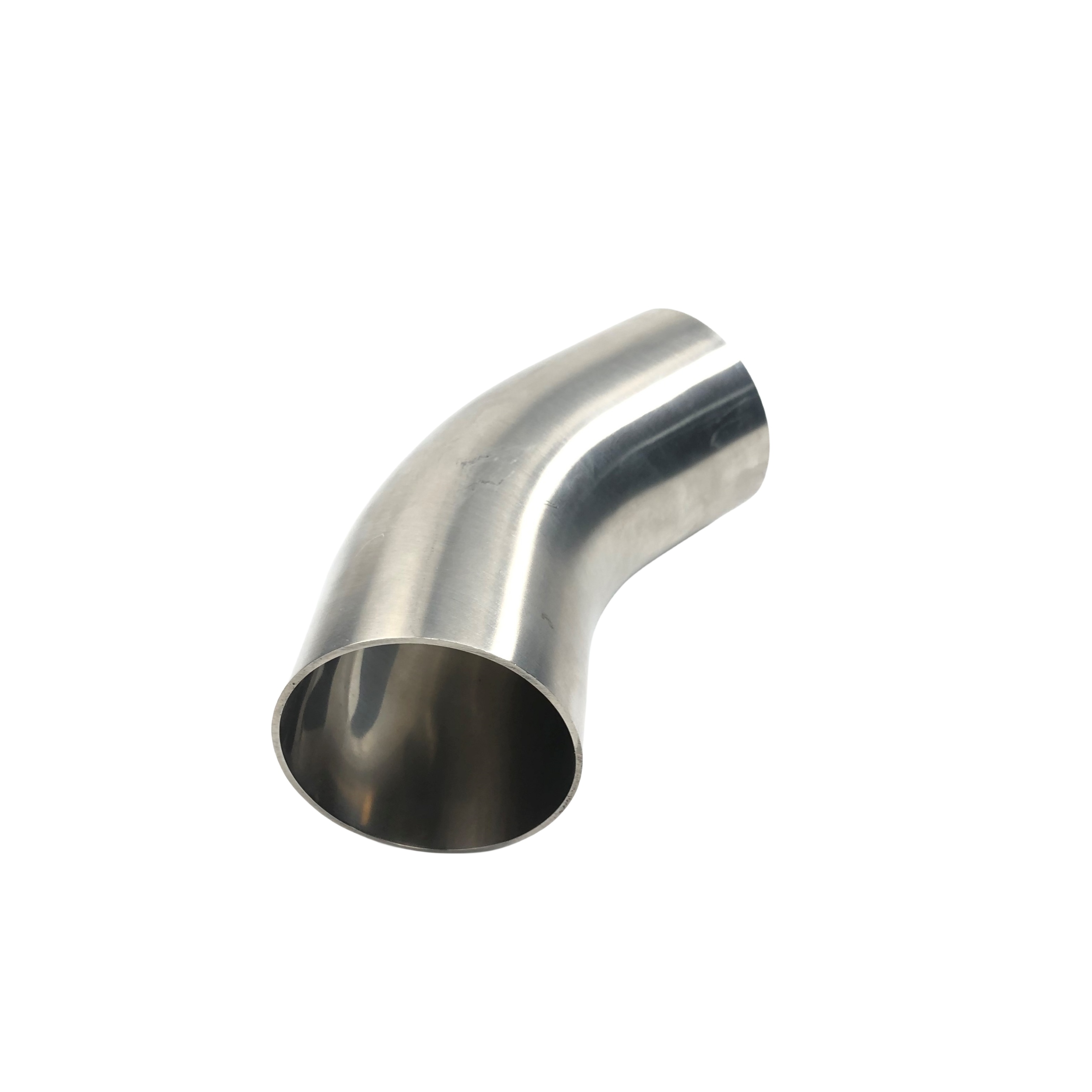

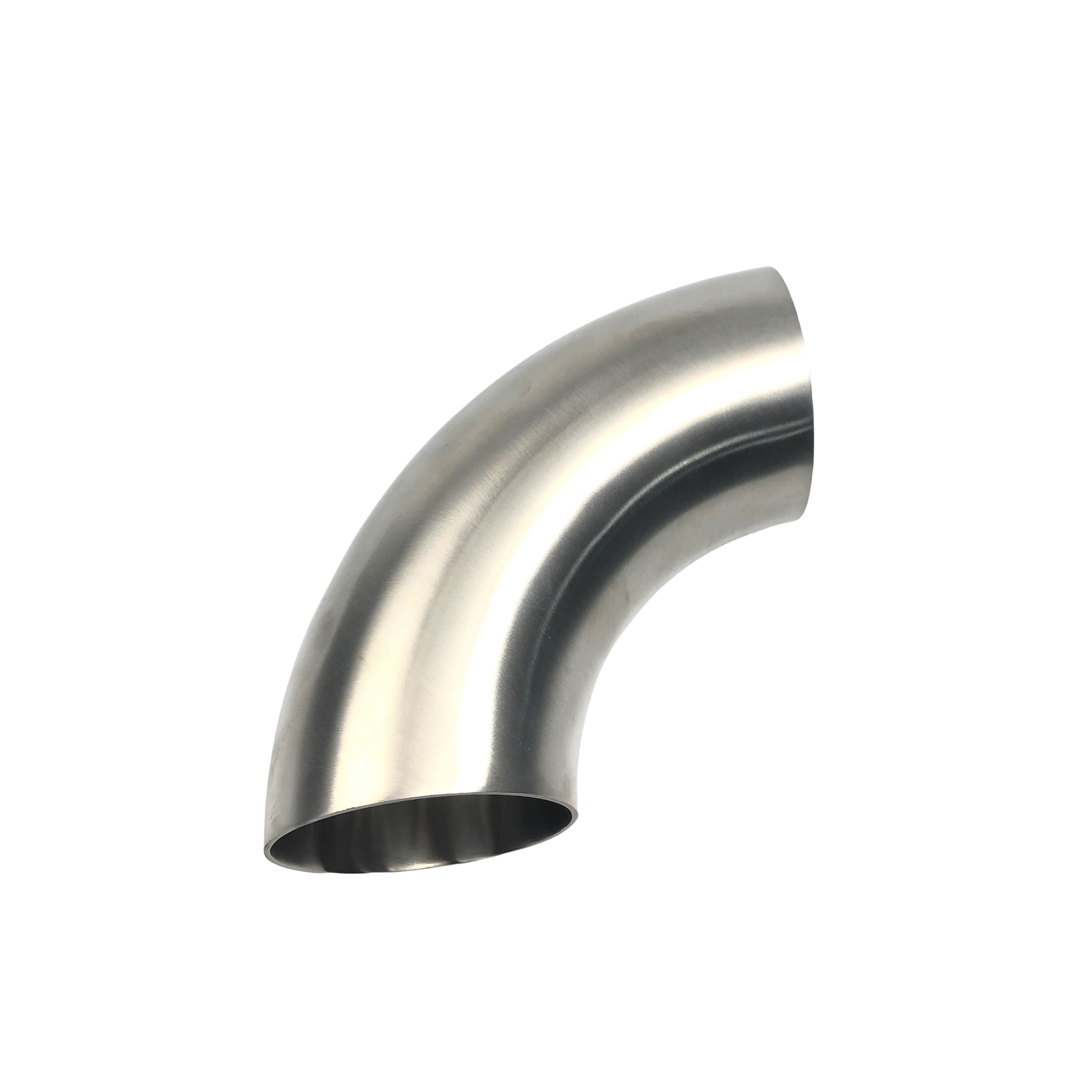

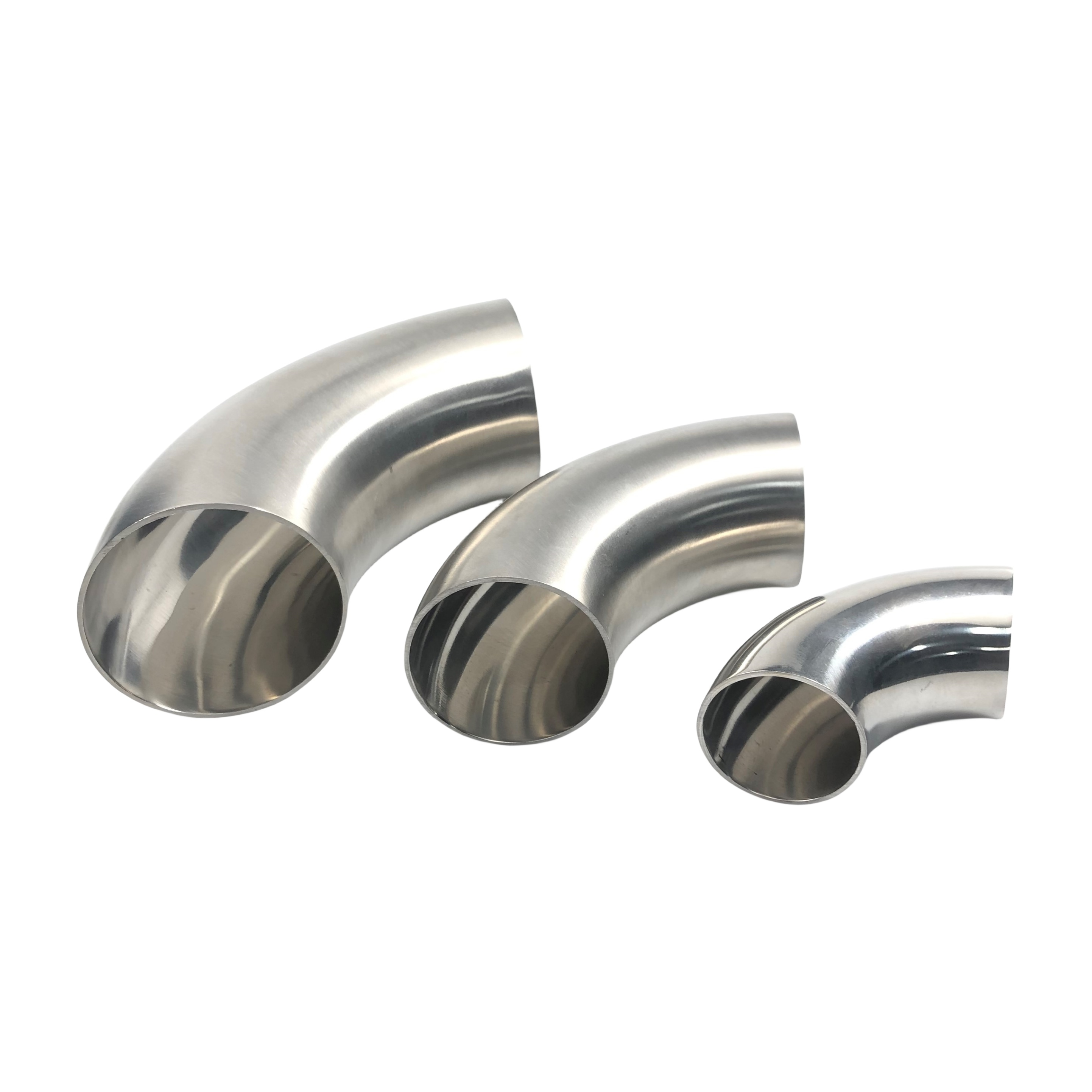

Elbow Stainless Steel DIN-DL2WS SMS DIN Welded Elbow with Straight Ends
Application
Stainless steel elbows are a category of pipe fittings designed to connect two pipes and redirect the flow of fluids. They are commonly available in three standard angles: 45 degrees, 90 degrees, and 180 degrees. Nevertheless, custom elbows can be fabricated to satisfy particular pipeline specifications, including angles such as 60 degrees or 70 degrees. These are extensively utilized in industries such as food processing, dairy, brewing, and pharmaceuticals.
Material
Body: AISI 304 or AISI 316L
Standard Design
Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
Raw material standard:ASTM A-269,A-270
Size available: 1/2"-8" or DN10-DN200
Connection:Welded end,Tri-clamp,Male
Features
The sizes fit for stainless steel sanitary tubing and piping dimensions
Max. operating pressure rating of 10bar for small sizes
Chemical components carrying in the materials meet the requirement from hygienic and sanitary industry
The elbows with straight end is designed for capacity of orbital welding
Easy for welding free from rust
