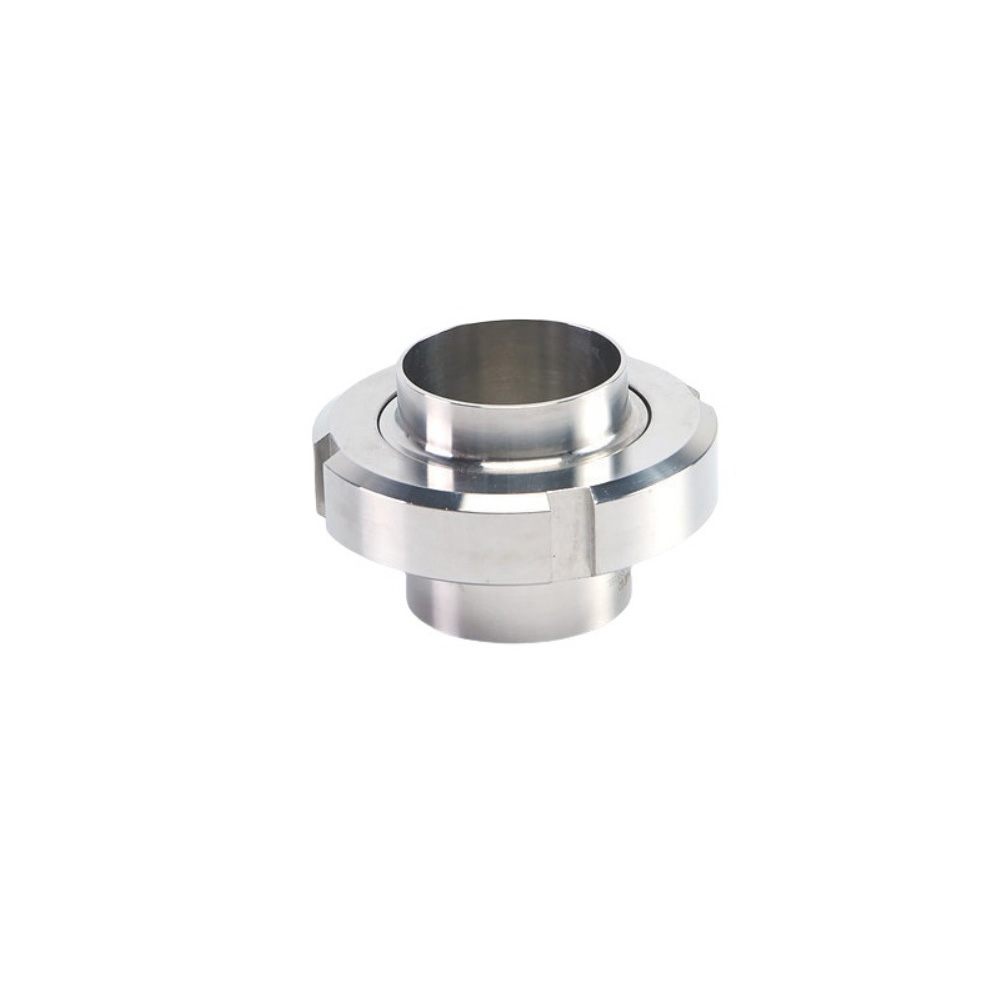

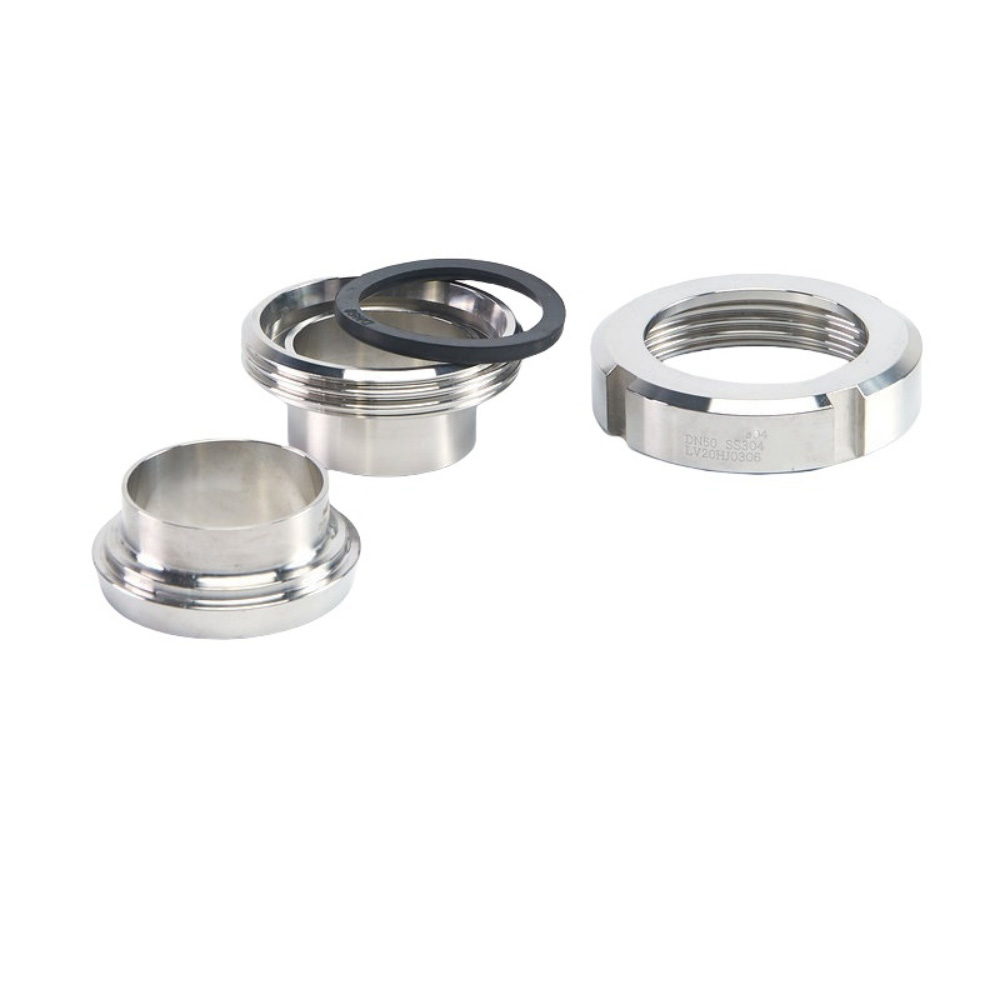

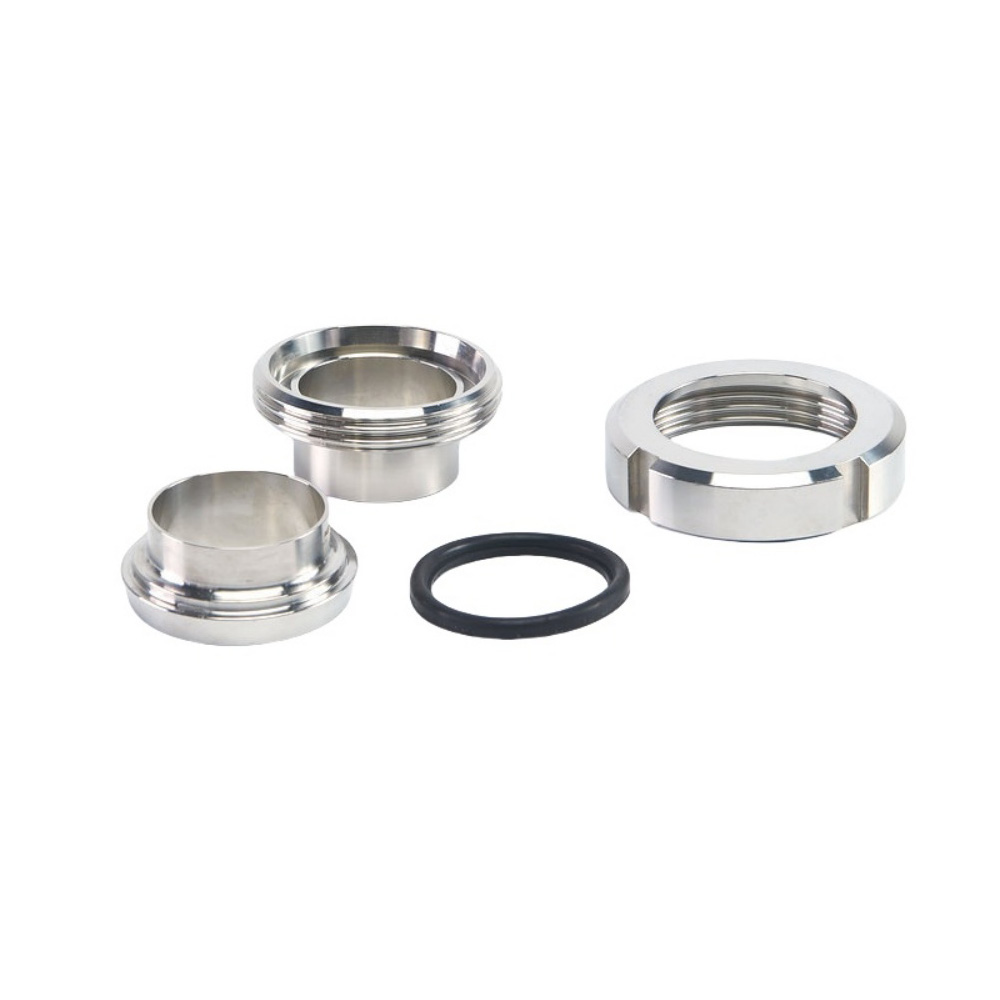

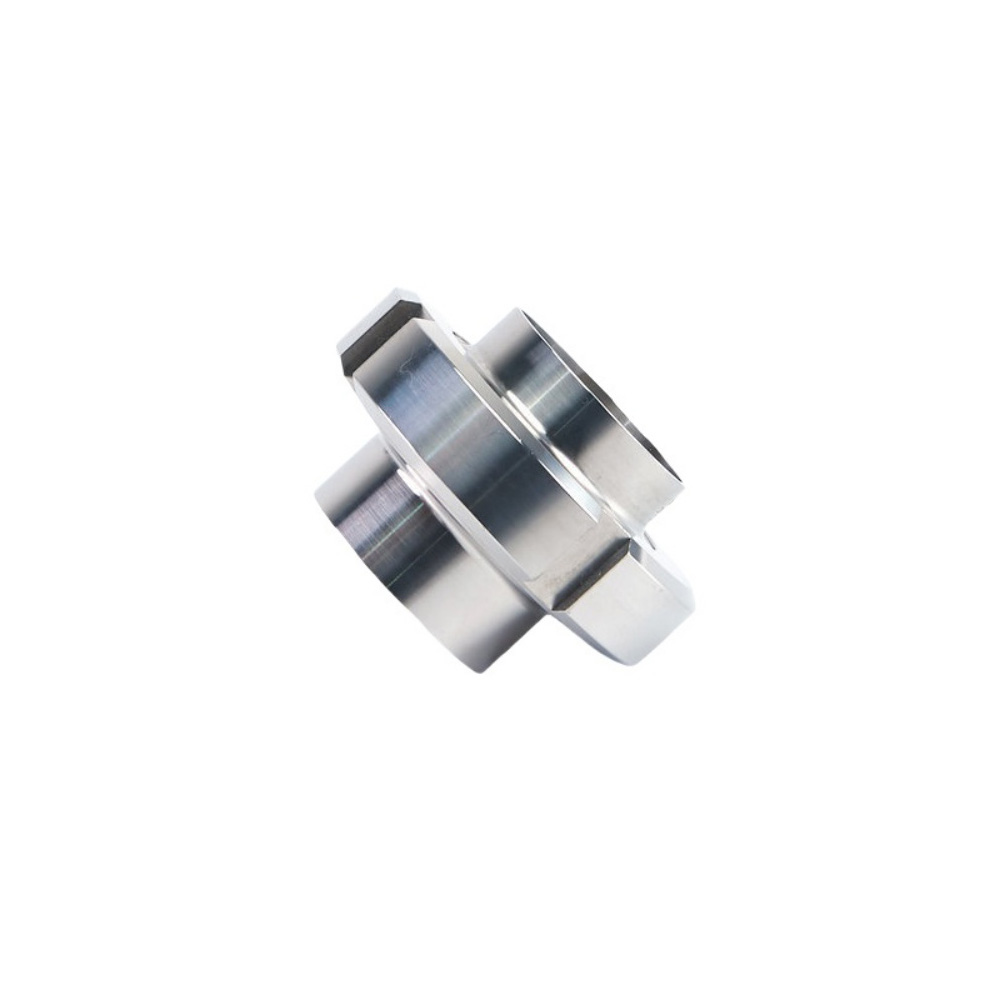

DIN11851 Stainless steel industrial high pressure forged fittings union
Application
A sanitary union is a specialized fitting utilized within plumbing and piping systems to connect two pipes or tubes, facilitating easy cleaning and disassembly, which is particularly crucial for maintaining hygiene and cleanliness. These fittings are prevalent in industries such as food and beverage, pharmaceuticals, and various others.
These are used in wide range of industries like food and beverage,pharmaceuticals,biotechnology,chemical processing,water treatment,dairy industry and others.
Material
Body: AISI 304 or AISI 316L

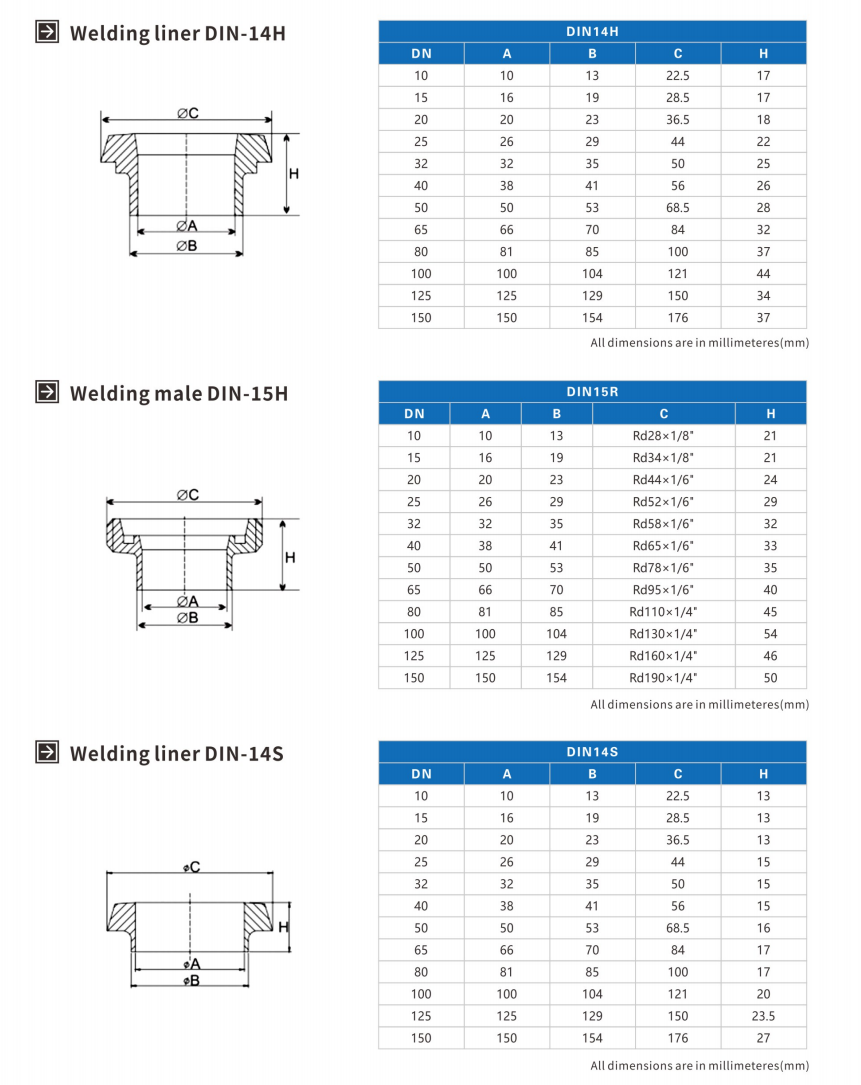

Standard Design
Standards: DIN11850/DIN11852, SMS, 3A,RJT,IDF ,DS
Raw material standard:ASTM A-269,A-270
Size available: 1/2"-8" or DN10-DN200
Gaskets or seals: Silicone,PTFE,EPDM,Viton
Pressure:-6 to 40 bars
Temperature:-40 ℃ to 150 ℃
Features
Hygienic design,leak free connections
Easy disassembly and maintenance,durability
FDA gaskets compliance with food industry
Made from forging raw material
High precise roughness produced from CNC machine
High precise dimensions,without human error
