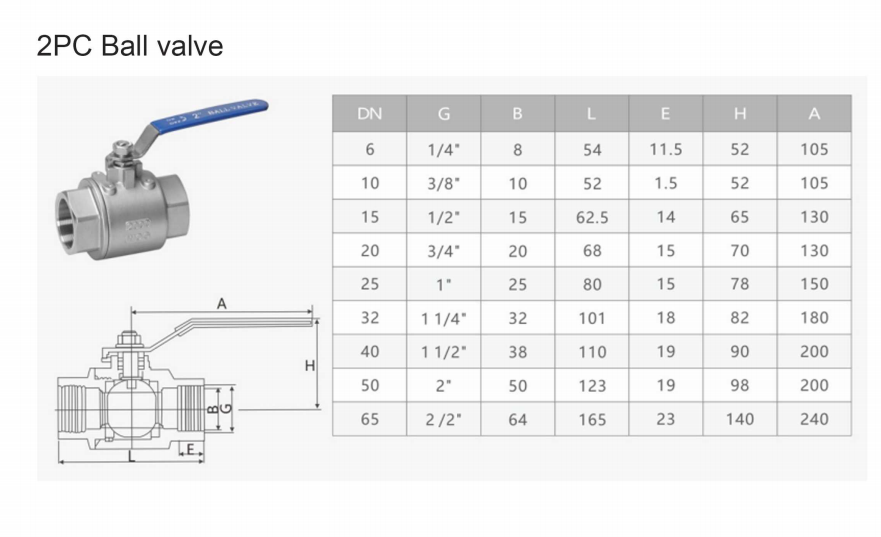

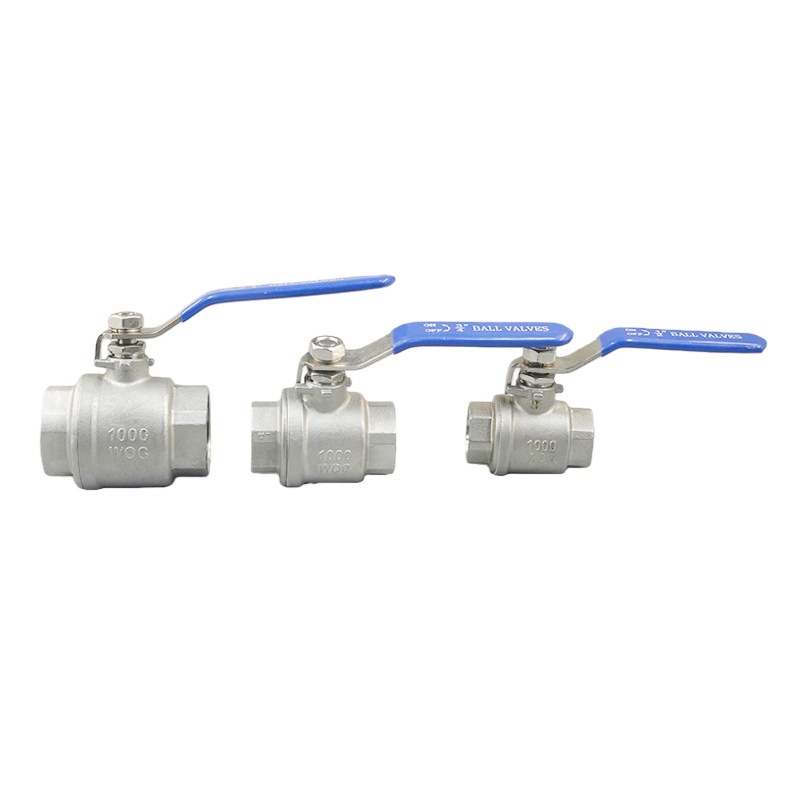

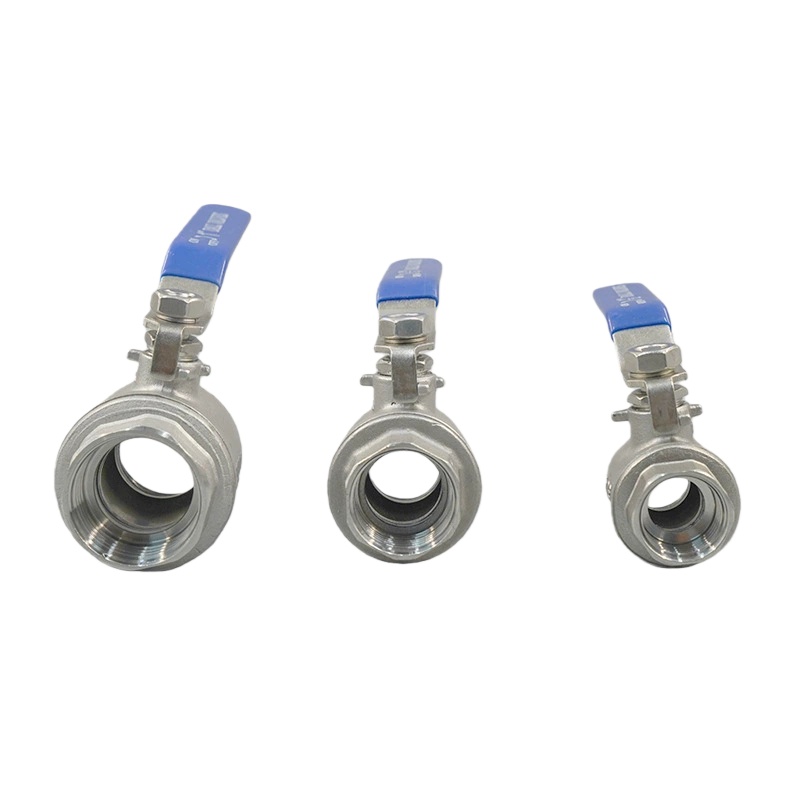

CF8m 1000wog SS 304 316L 2PCS Stainless Steel Ball Valve

• Structure:

  2-piece (2PC) design – the body consists of two parts, allowing easy maintenance without fully removing the valve from the pipeline.

• Pressure Rating:

  1000 WOG means the valve is rated for 1000 PSI (approx. 6.9 MPa) for water, oil, and gas applications.

Materials:

• Body: CF8M (cast equivalent of SS316) – provides excellent corrosion resistance, especially against chlorides and acidic media.
• Ball & Stem: Often made from SS304 or SS316L, ensuring good strength and anti-corrosion properties.
• Seats & Seals: Typically PTFE (standard) for temperatures up to ~180 °C; PPL or other materials can be used for higher temperatures.
• Comparison – CF8 vs. CF8M:

  CF8M contains molybdenum, making it more corrosion-resistant than CF8 (cast 304). For marine, chemical, or high-corrosion environments, CF8M/316 is recommended.

• Safety Feature:

  High-quality versions include a blow-out proof stem design, which prevents the stem from being ejected under pressure.

• End Connections:

  Common thread types are NPT (National Pipe Thread) or BSPP/BSPT. Always verify which standard your piping system uses.

• Application:

  Suitable for general industrial, chemical, oil & gas, water treatment, and HVAC systems where reliable shut-off and moderate to high pressure resistance are required.
