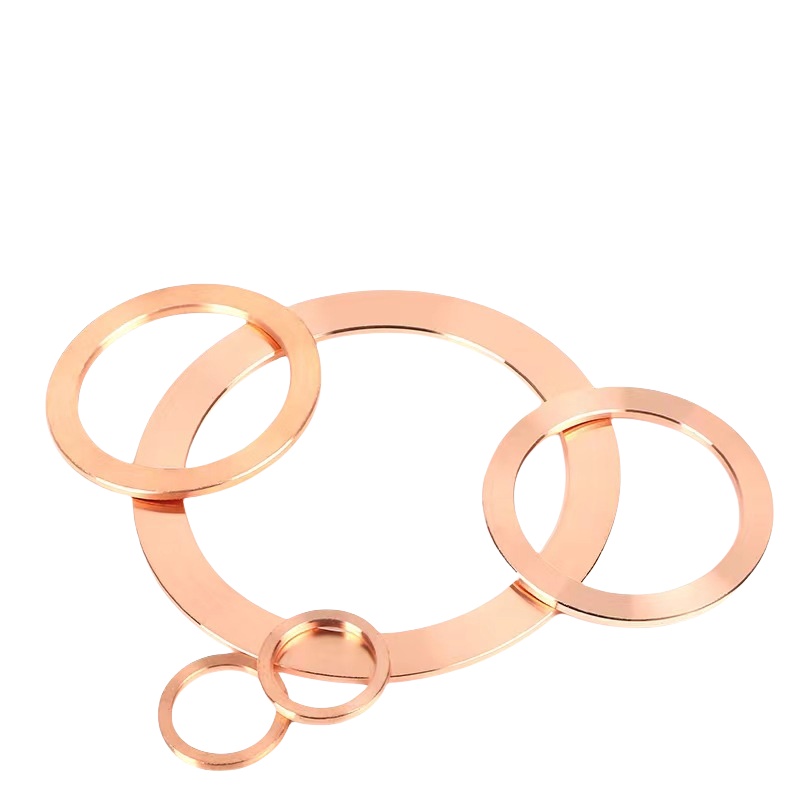

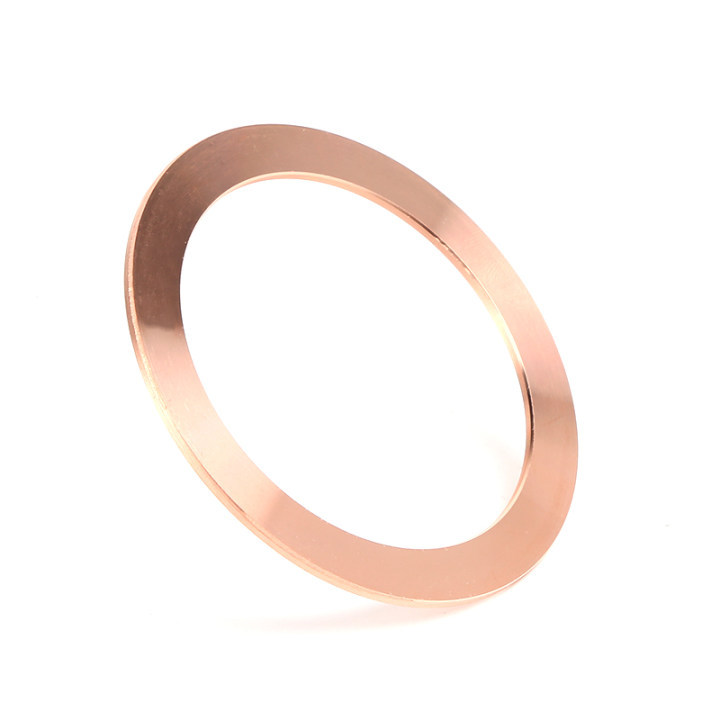

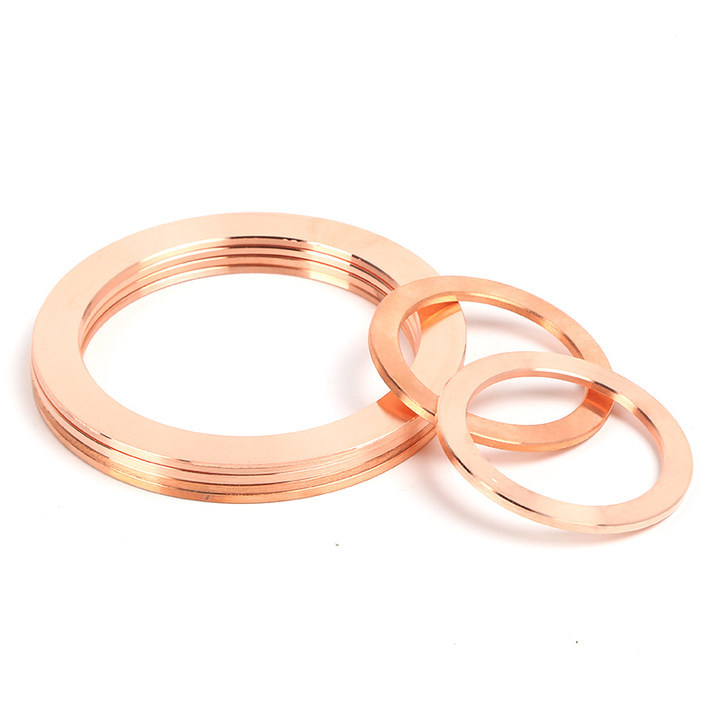

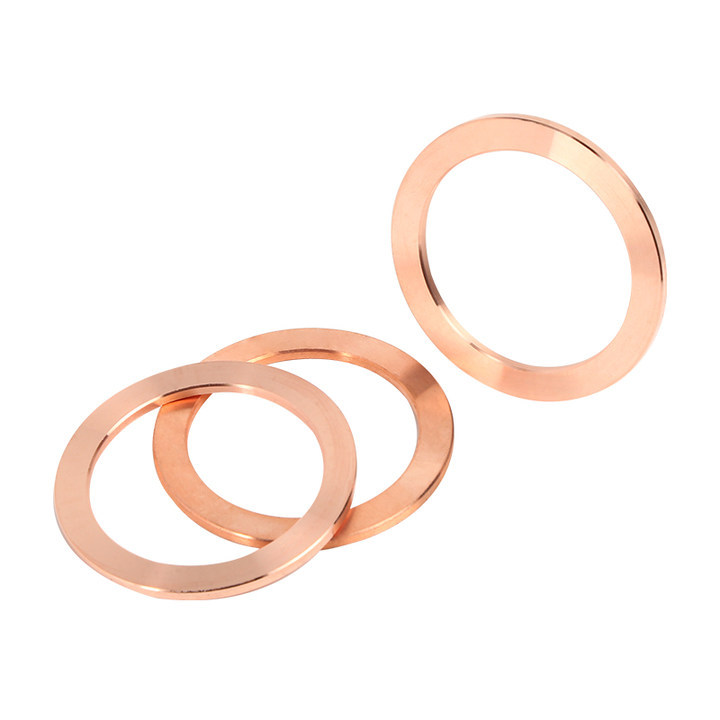

CF OFHC copper gasket
Features
Conflat flanges in a wide range of sizes from 1.33” to 16.5” in both rotatable and non-rotatable versions. All CF flanges are compatible with other manufacturers' standards and are available in SS304L material as standard, with an option for high-grade SS 316LN ESR. CF flanges utilize an OFHC (Oxygen Free High Conductivity) copper gasket for effective seal up to 1x10-10 Torr. Moreover, the copper gasket can sustain a temperature of up to 450°C, but reuse of copper gaskets is not recommended.For transition from UHV to HV also offers a complete range of adaptors for CF flange to KF or ISO flange.
Applications
Advantages:
Thermal and Electrical Conductivity: The high conductivity of OFHC copper makes these gaskets suitable for applications where heat dissipation or electrical conductivity is important.
Corrosion Resistance: OFHC copper has good resistance to corrosion, especially in non-oxidizing environments.
Malleability: The malleable nature of copper allows the gasket to conform to the surfaces it seals, ensuring a tight fit.
Considerations:
Cost: OFHC copper can be more expensive than standard copper due to its specialized production process.
Installation: Proper installation is essential to ensure an effective seal. The surfaces should be clean, and the gasket should be aligned correctly before tightening.
Performance:
CF OFHC copper gaskets are designed to perform well under high temperatures and pressures, making them suitable for demanding applications.
In summary, CF OFHC copper gaskets are a high-performance sealing solution that combines excellent conductivity with reliable sealing capabilities, making them ideal for specialized applications in various industries.
Applications:
CF OFHC copper gaskets are often used in high-performance applications, including electrical connections, vacuum systems, and high-temperature environments.
They are also utilized in industries such as aerospace, electronics, and power generation, where reliable sealing and conductivity are critical.

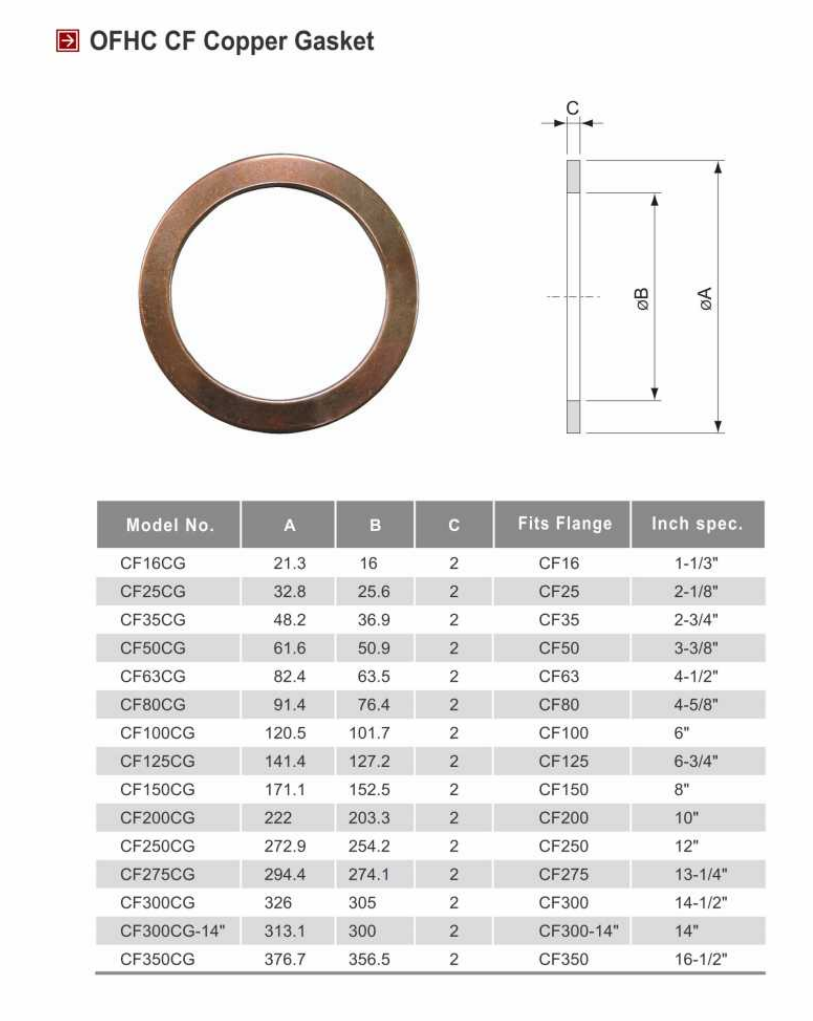

Specifications
