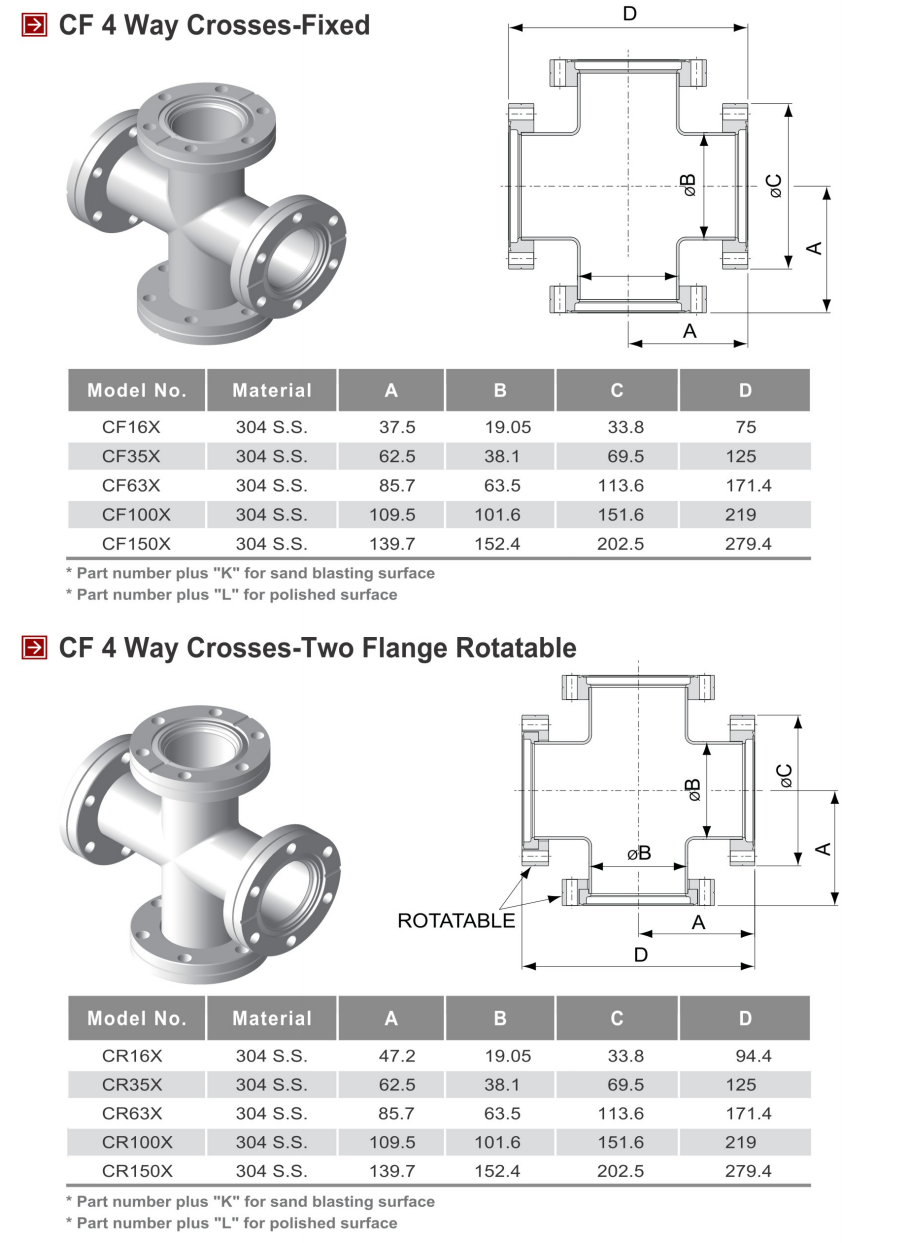

CF Fixed 4 Way Weld Flange Stainless Steel Fittings Vacuum Cross

The high sealing effect and the low leak rate performance of CF flange connection is a result of gasket material.When assembling the CF flange connect ,the knife edge is pressed into the flat copper gasket and force the seal material both axially as well as radially outwards to the flange.The material is enclosed and cannot flow even at high bakeout temperature.Due to this deformation of the sea such connections may sometimes stick together.They can be easily separated with a special tool or screwdriver.

Offered in both rotatable and nonrotatable versions with through holes and tapped bolt holes.Metric tapped holes can be ordered as specials.

Blank & Flanges:SS 304 (other material available upon request)

Gaskets:OFHC copper or Viton

Bolt: SS304

Temperature range:-200℃~450℃（OFHC copper）

Vacuum Range:1*10-13 mbar

Torque Rating:CF35 and smaller 220kgf-cm

CF63 and larger 360 kgf-cm

Larger or special size available upon request
