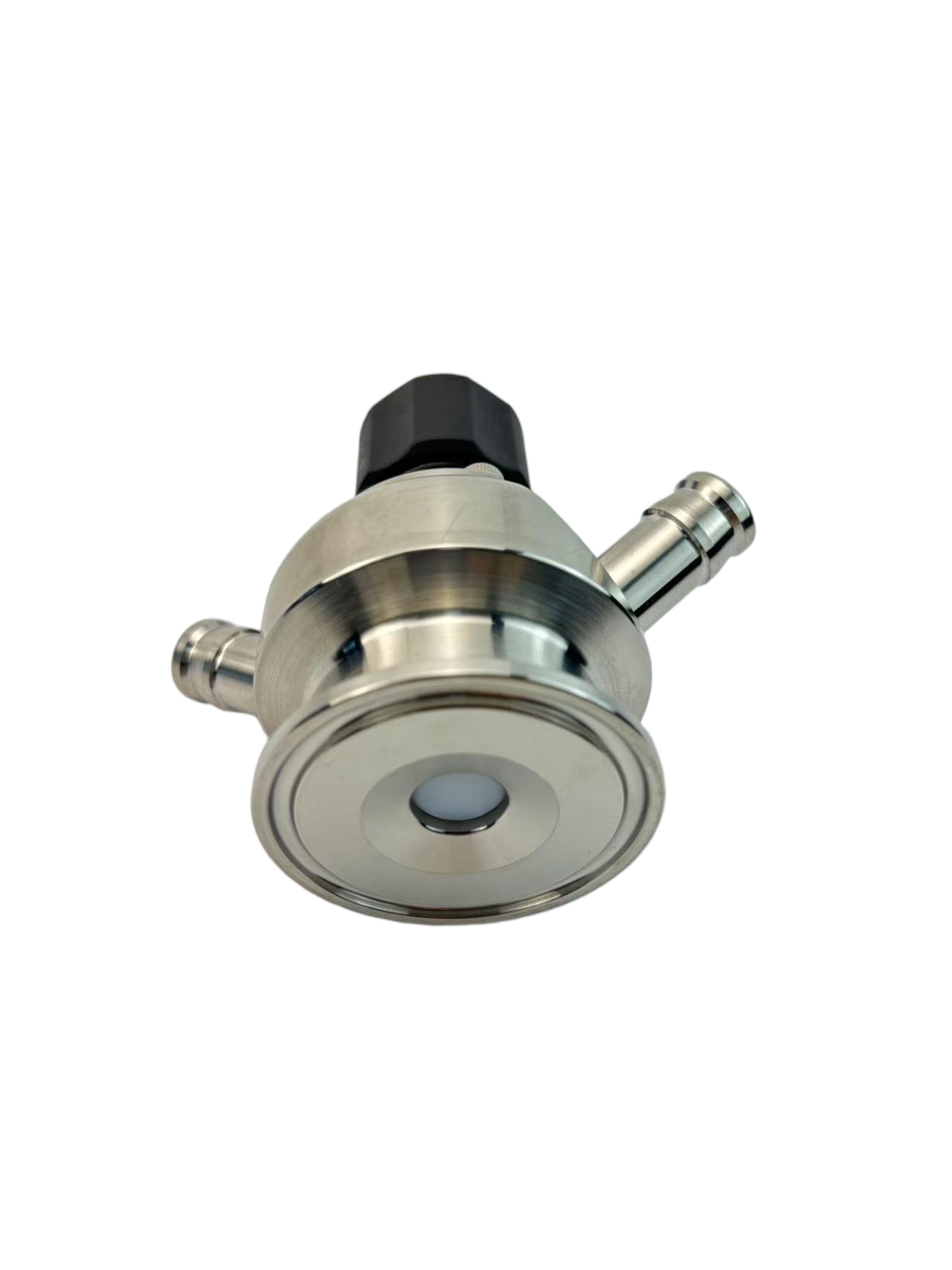

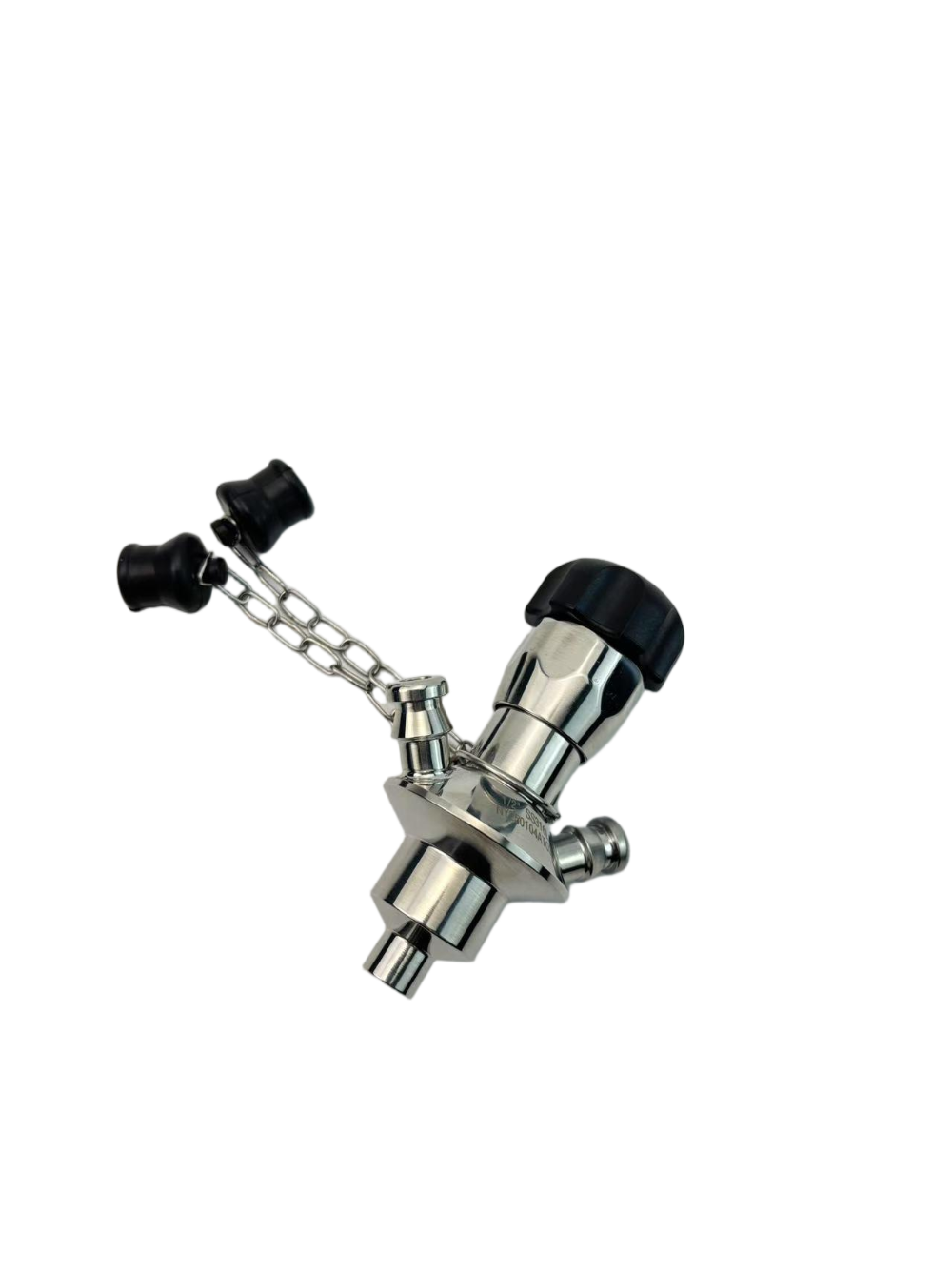

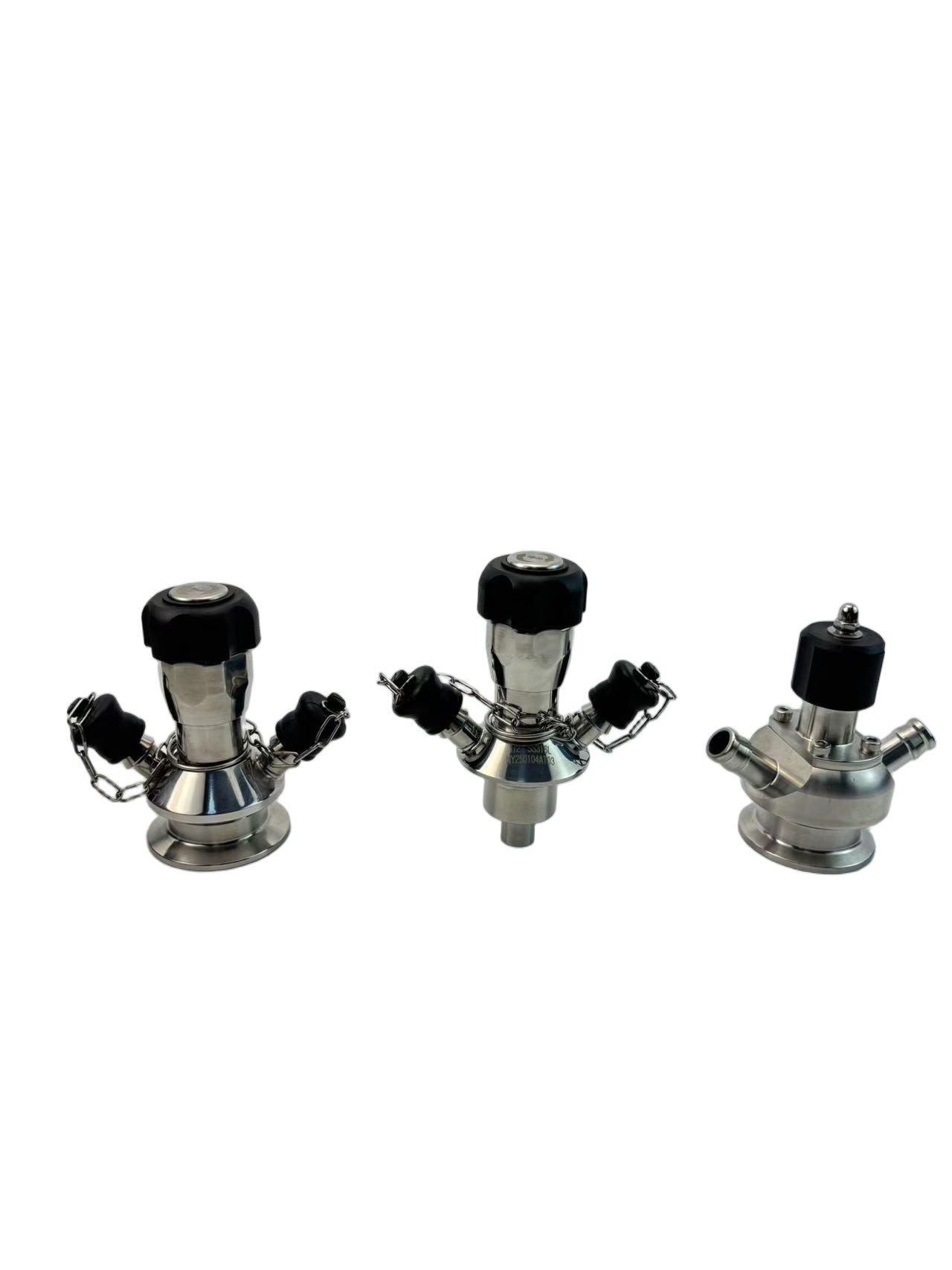

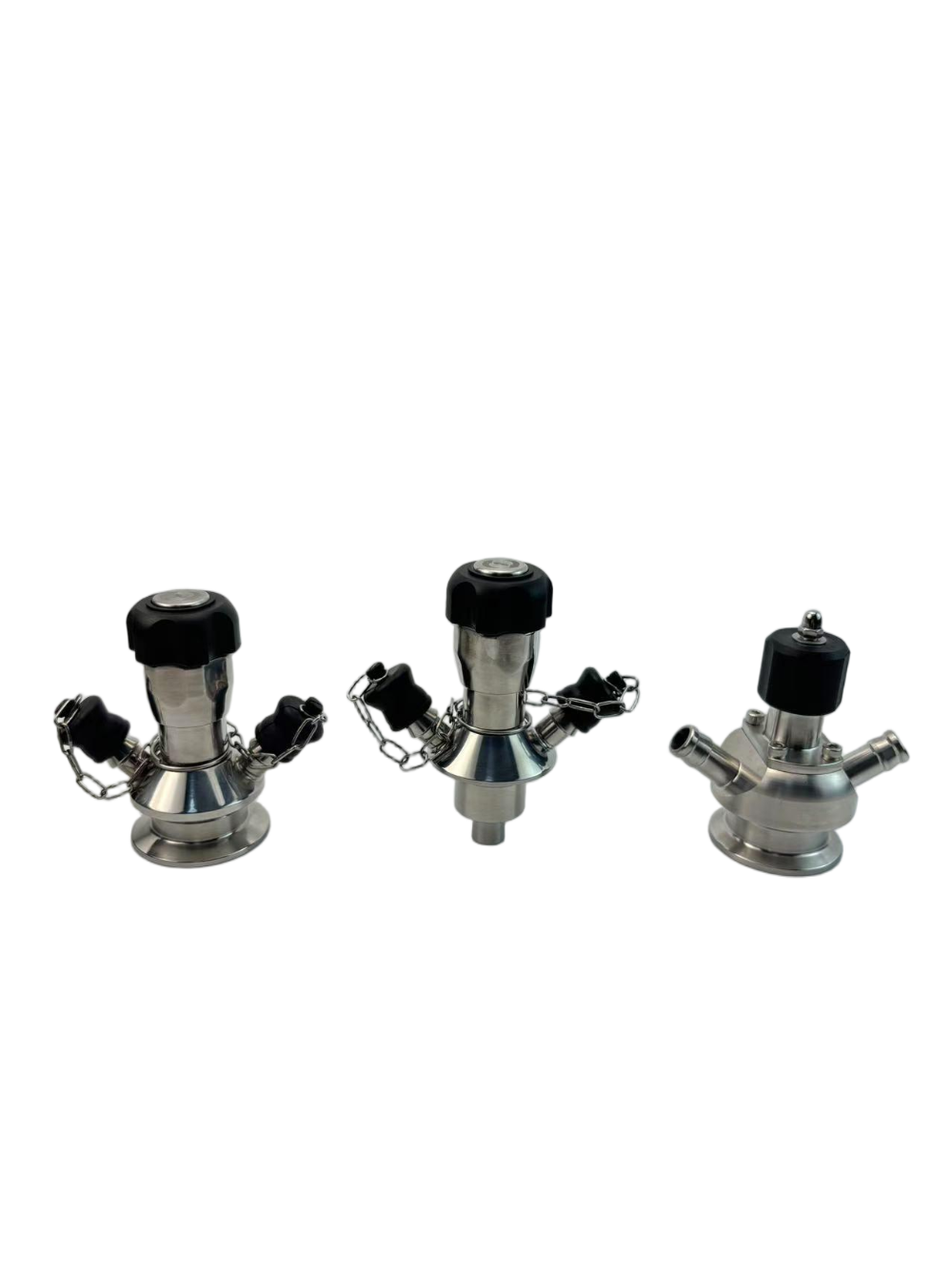

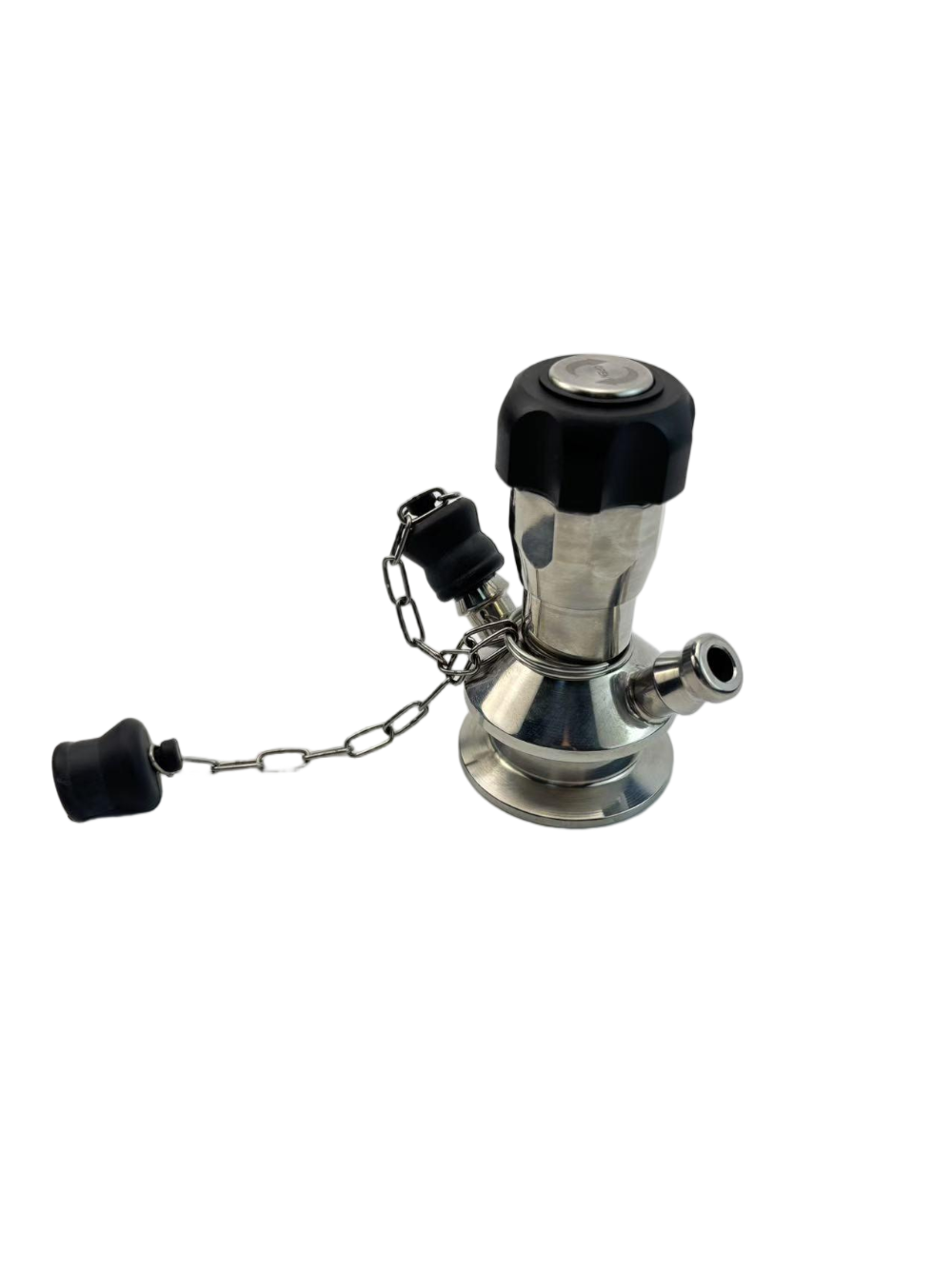

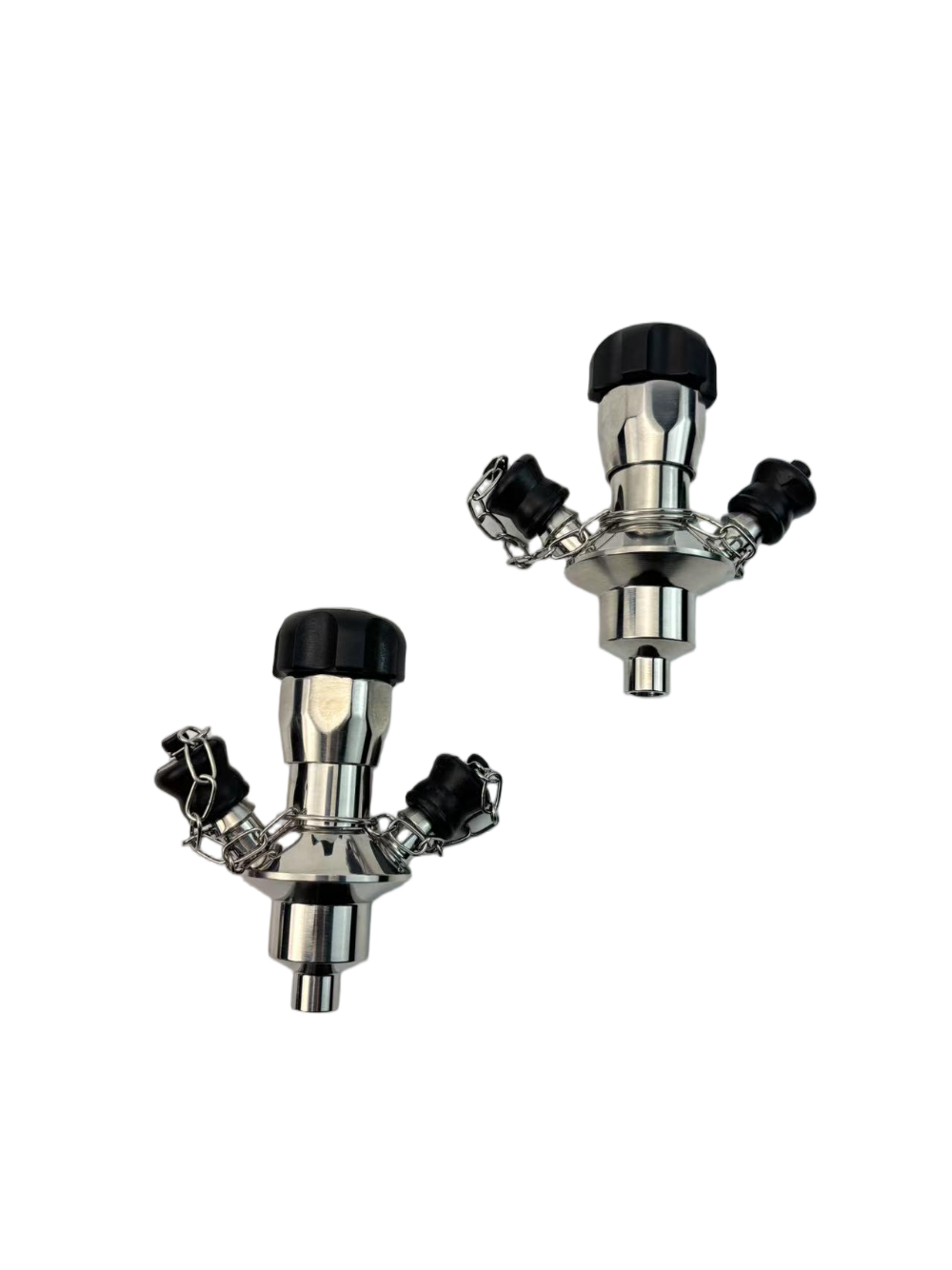

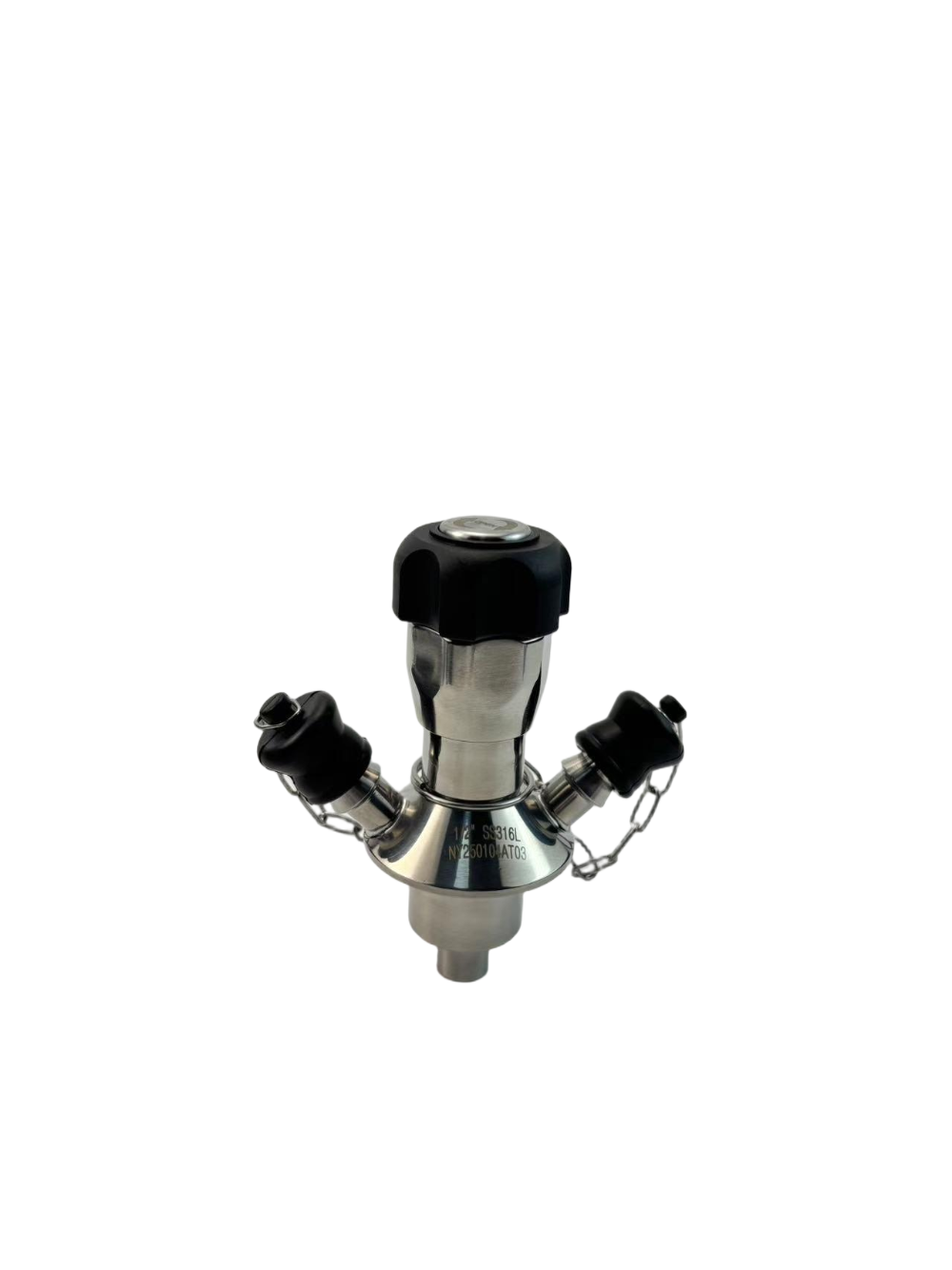

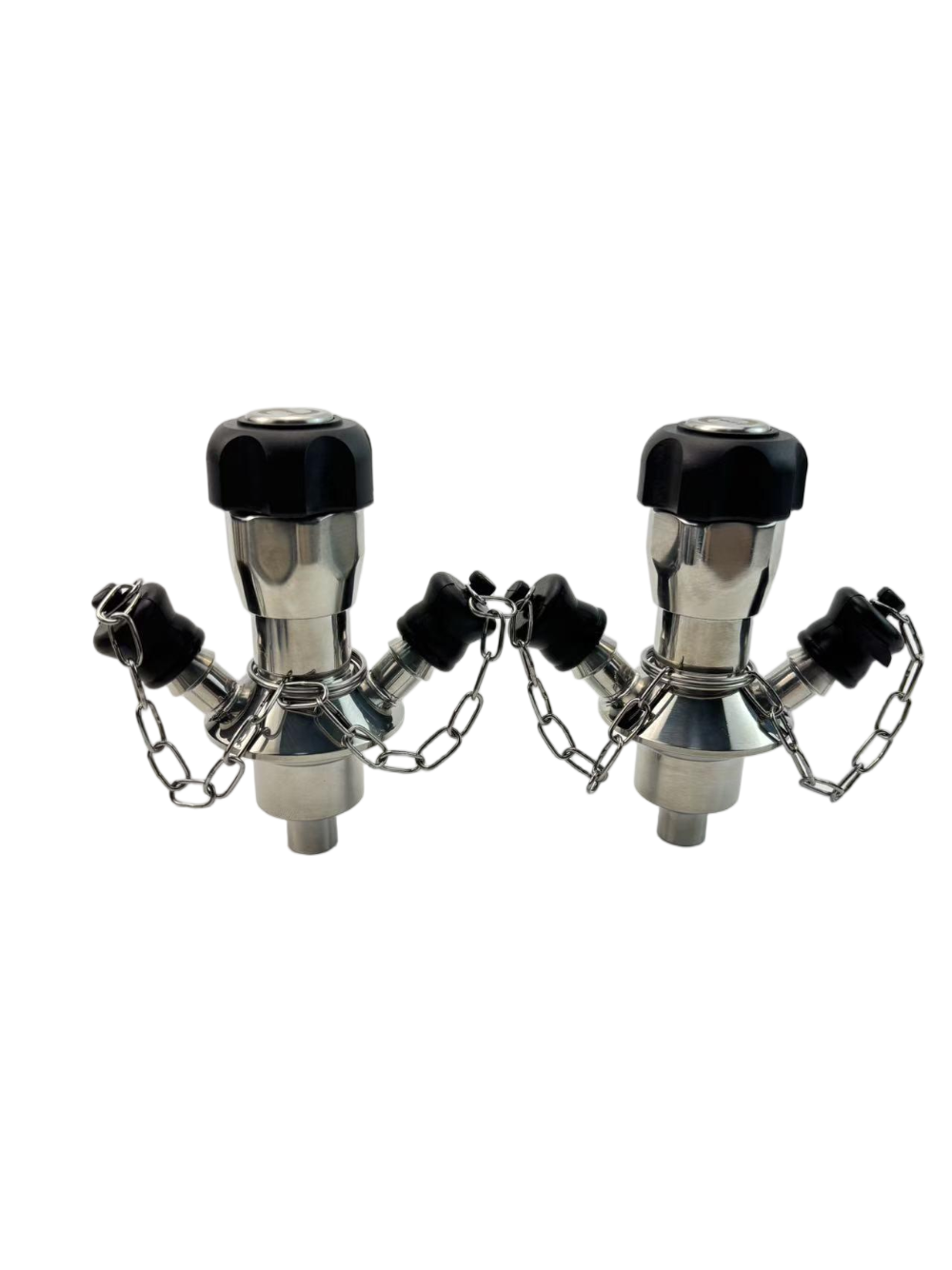

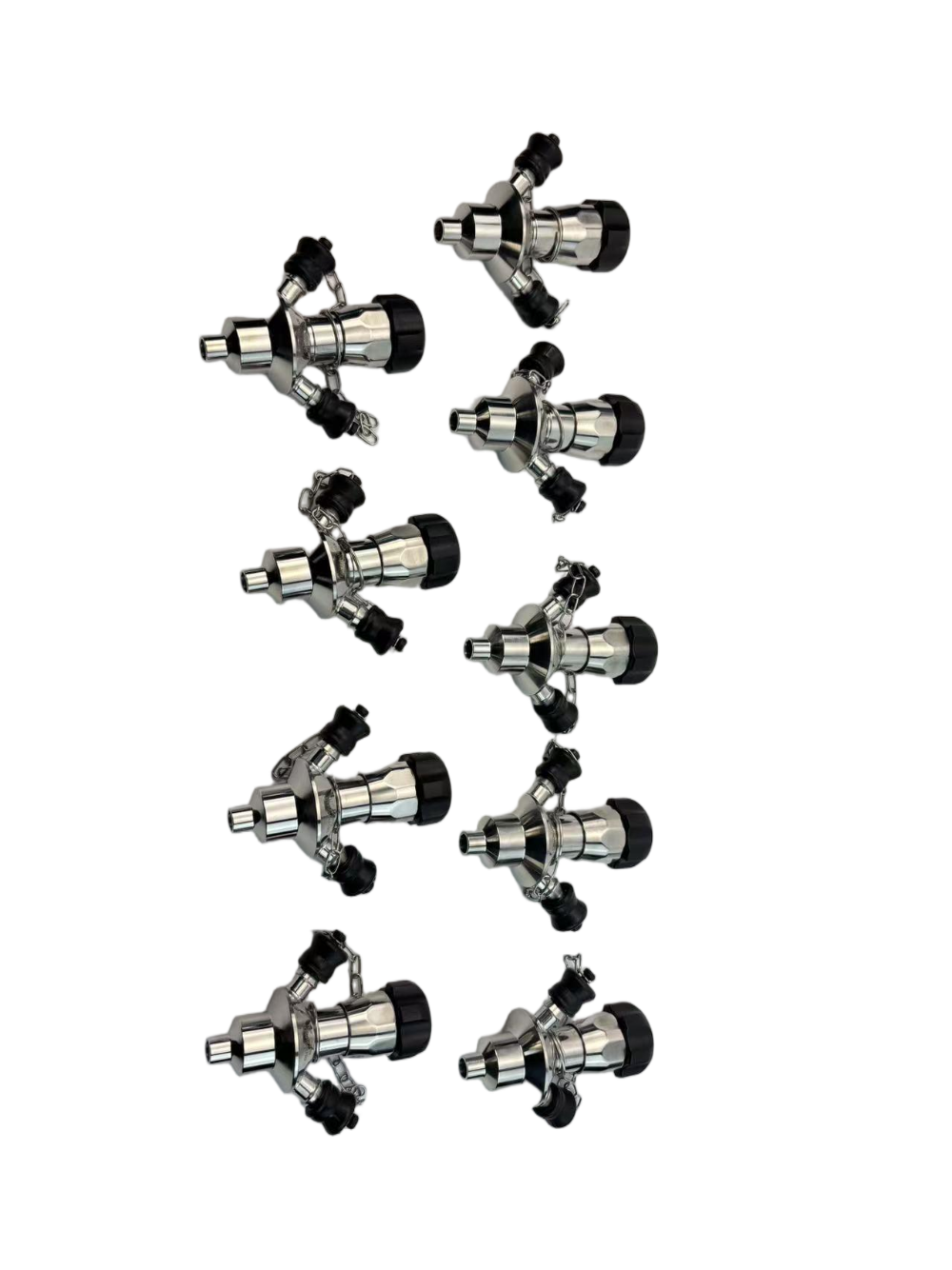

Aseptic sampling valve
Features
The ASV aseptic sampling valve adopts rubber sealing and is divided into four opening methods: quick opening handle type, fine adjustment hand wheel type, pneumatic type, and all-in-one pneumatic type.Equipped with spring automatic reset function, lift the handle or twist the hand wheel to synchronously lift valve core,so that the diaphragm valve head can detach from the sealing port and open the valve for sampling; When the handle is lowered and the reverse rotation hand wheel is in an empty state, the spring action automatically closes the valve.
Technical data
Maximum Pressure: +10 bar+145psi
Proper temperature:-10c to+140℃
Body material:SS304 SS316L

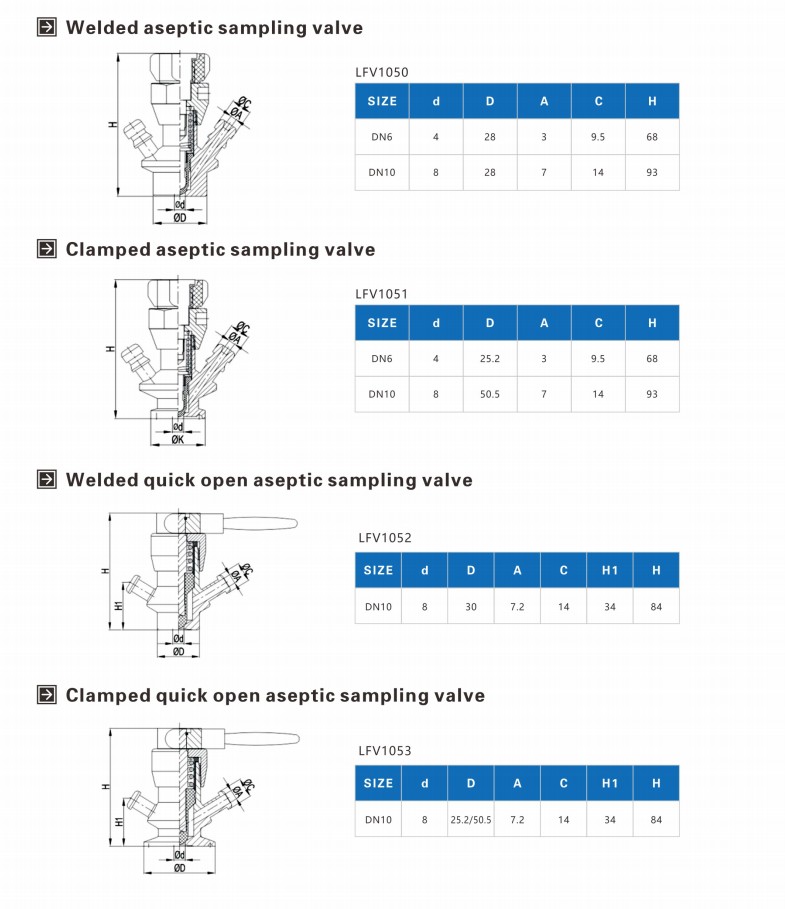

Specifications
·Available Sizes: DN6, DN8, DN10, DN15
·End Connections: Tank Weld, Tri-Clamp or on request
