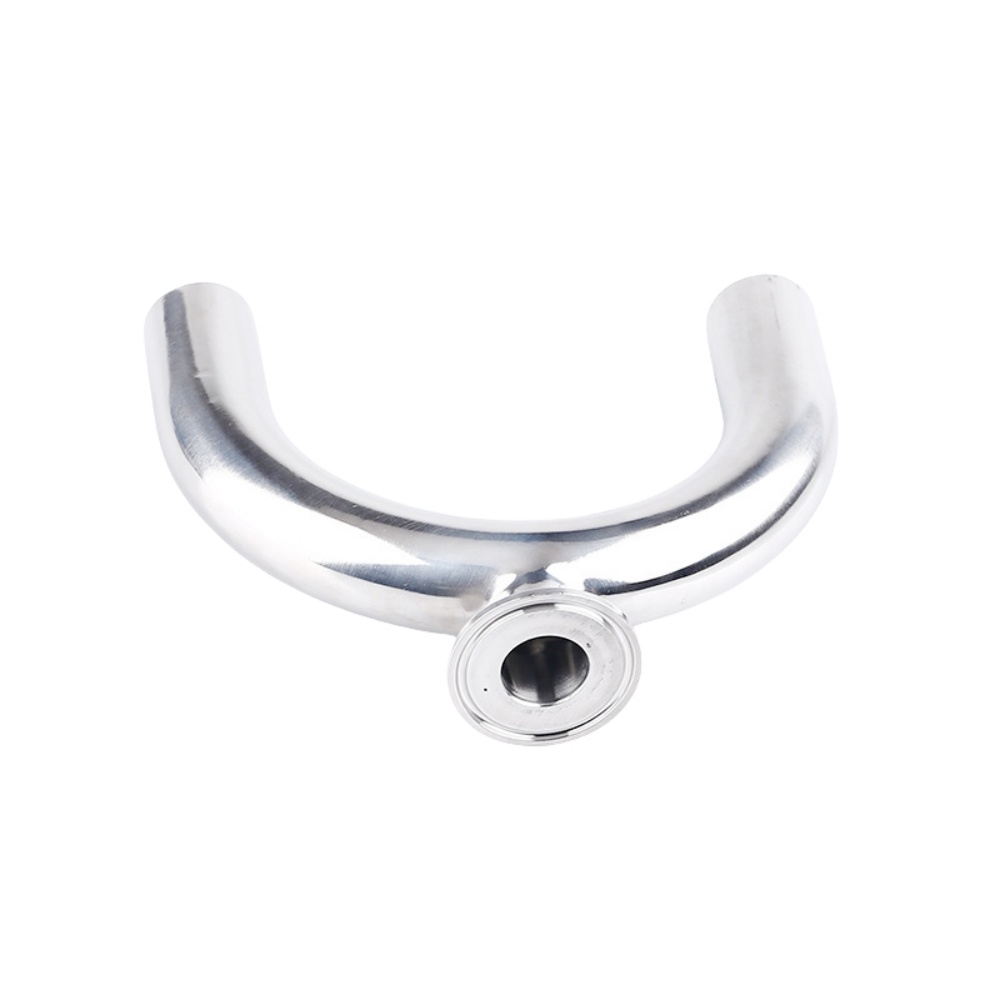

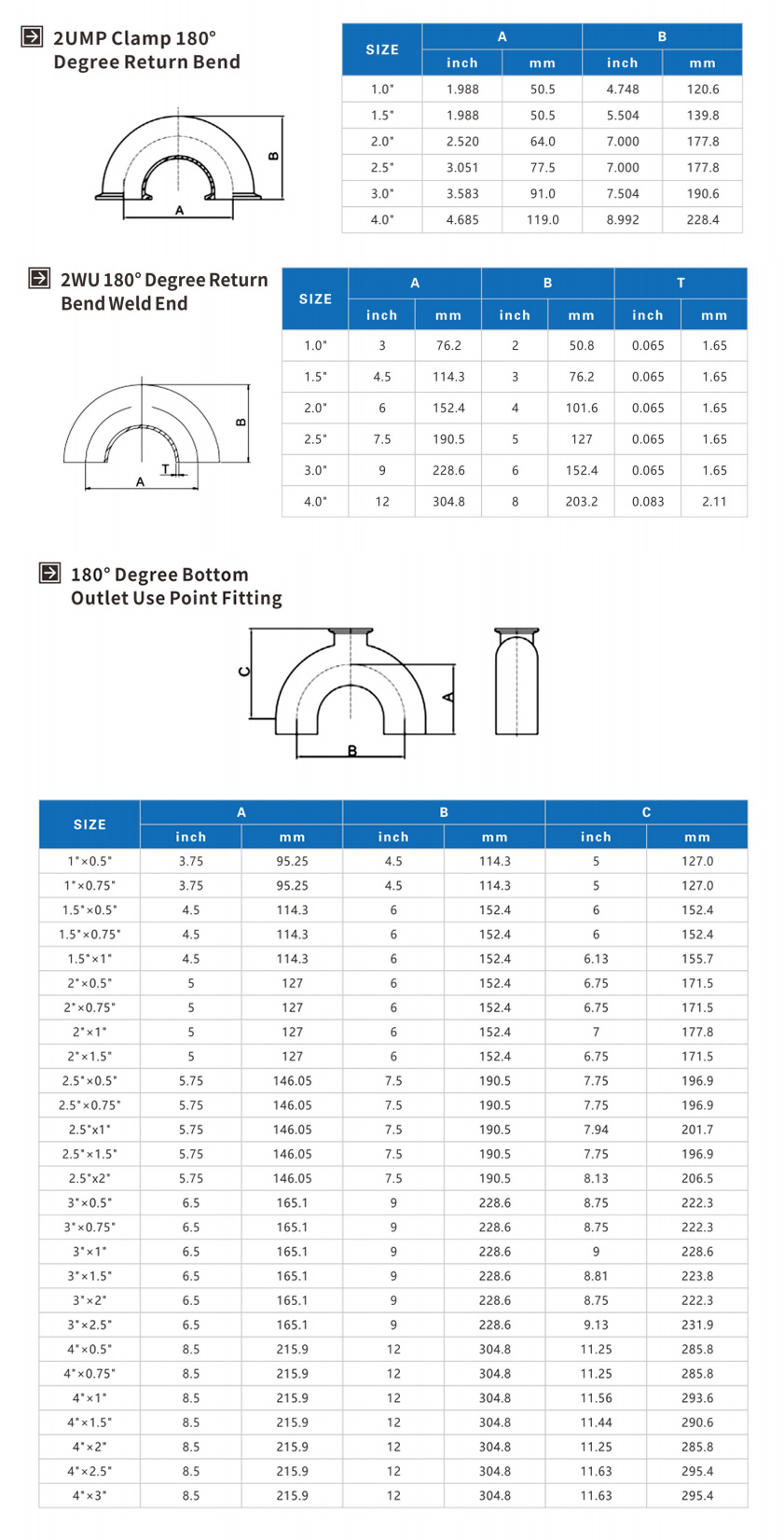

316L Stainless Steel Sanitary Long Led BPE.2UMP Clamped U Bend Fitting
Application
Stainless steel elbows are a type of pipe fitting used to connect two pipes and alter the direction of fluid flow. Typically, they are available in three common angles: 45 degrees, 90 degrees, and 180 degrees. However, custom elbows can also be manufactured to meet specific pipeline requirements, such as 60-degree or 70-degree angles. These fittings are widely employed in various industries, including food processing, dairy, brewing, and pharmaceuticals.
Material
Body: AISI 304 or AISI 316L
Standard Design
Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
Raw material standard:ASTM A-269,A-270
Size available: 1/2"-8" or DN10-DN200
Connection:Welded end,Tri-clamp,Male
Features
The sizes fit for stainless steel sanitary tubing and piping dimensions
Max. operating pressure rating of 10bar for small sizes
Chemical components carrying in the materials meet the requirement from hygienic and sanitary industry
The elbows with straight end is designed for capacity of orbital welding
Easy for welding free from rust and corros
