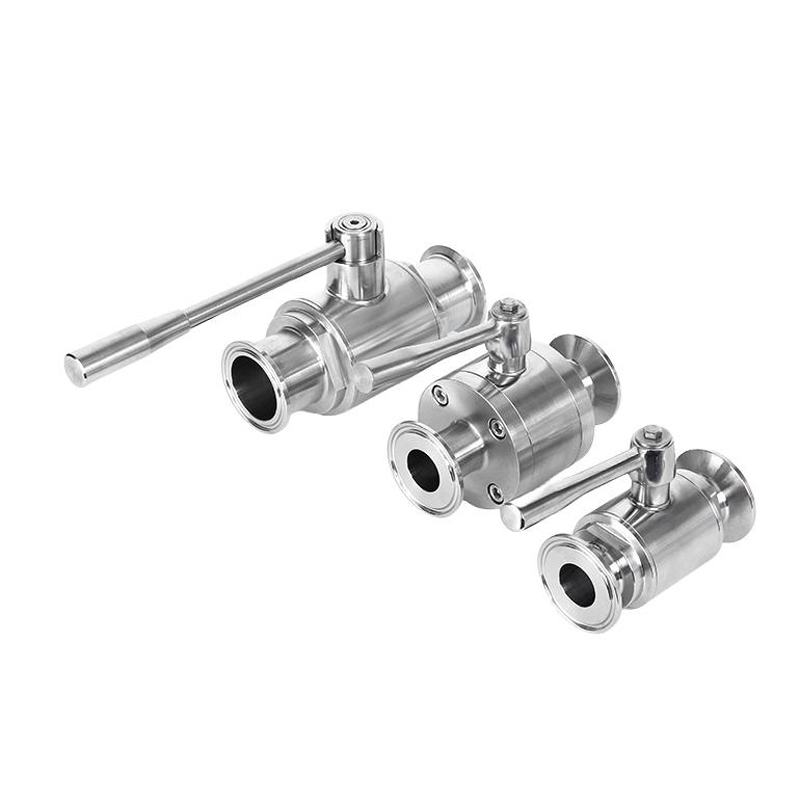

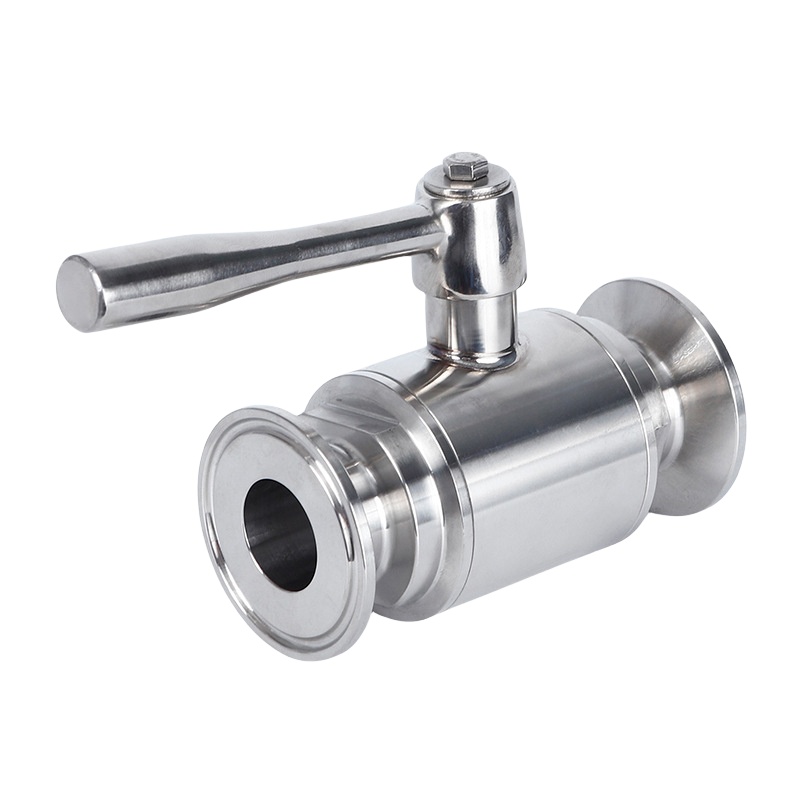

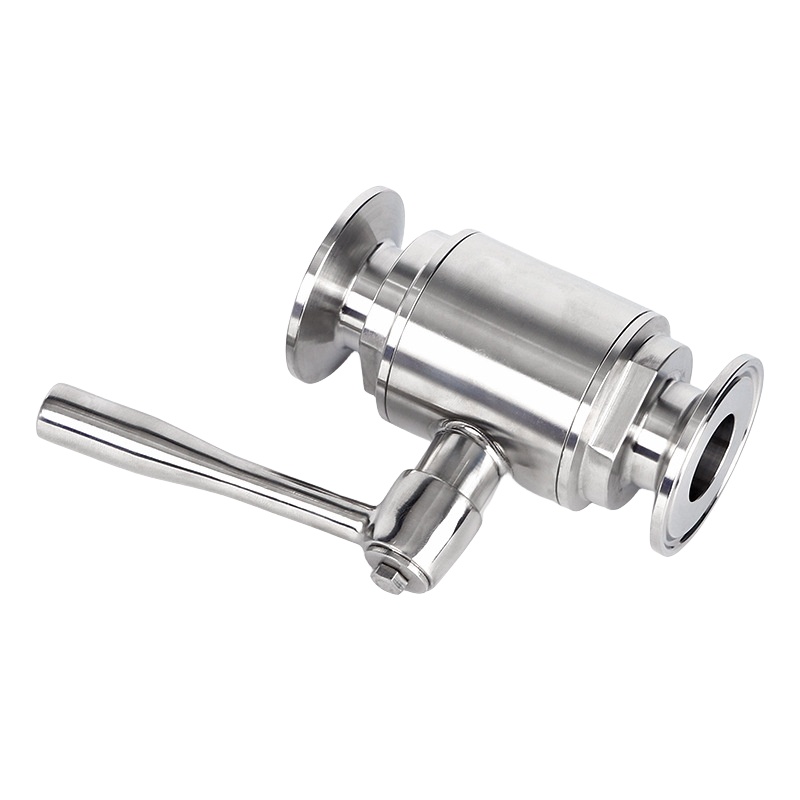

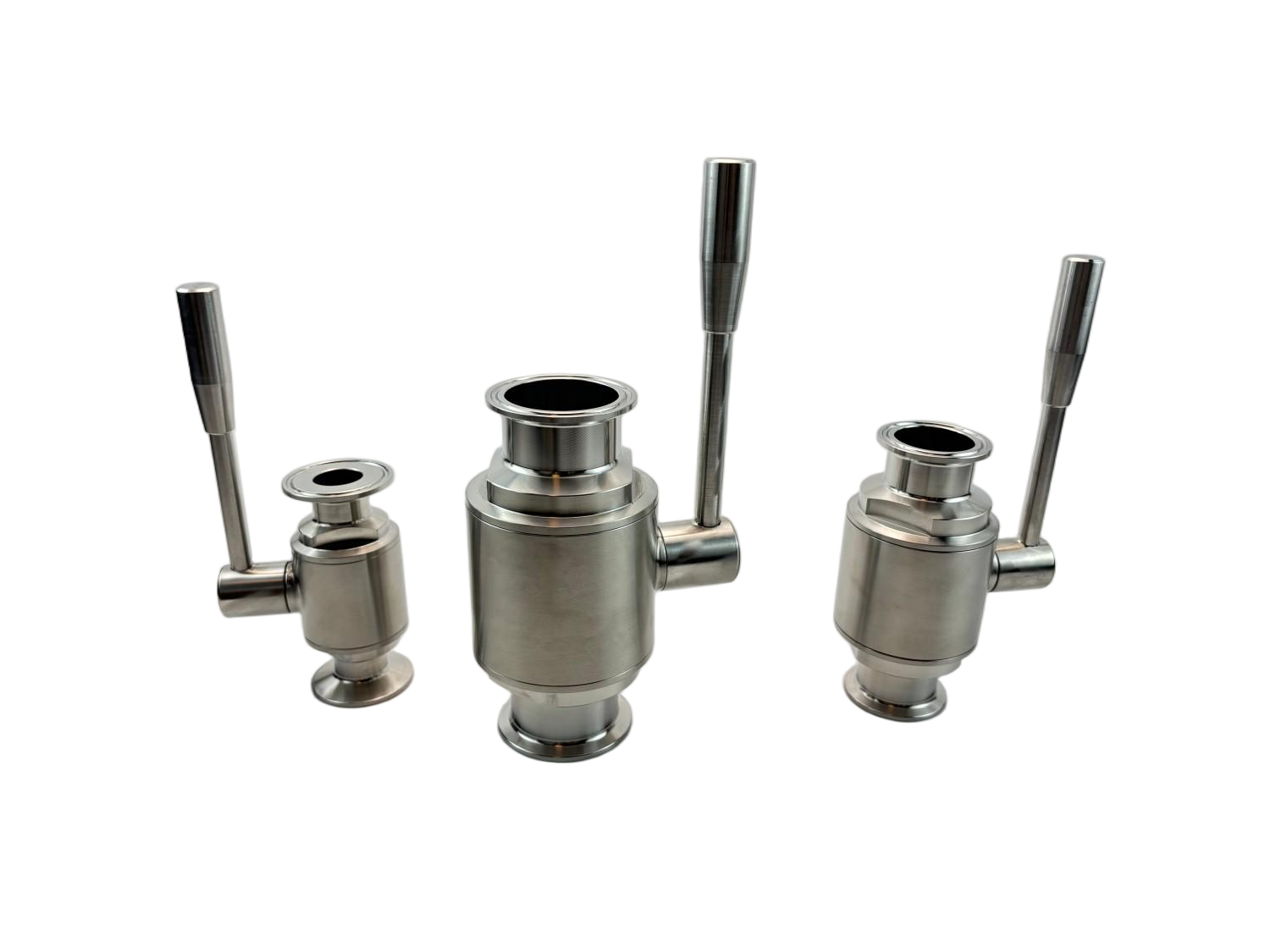

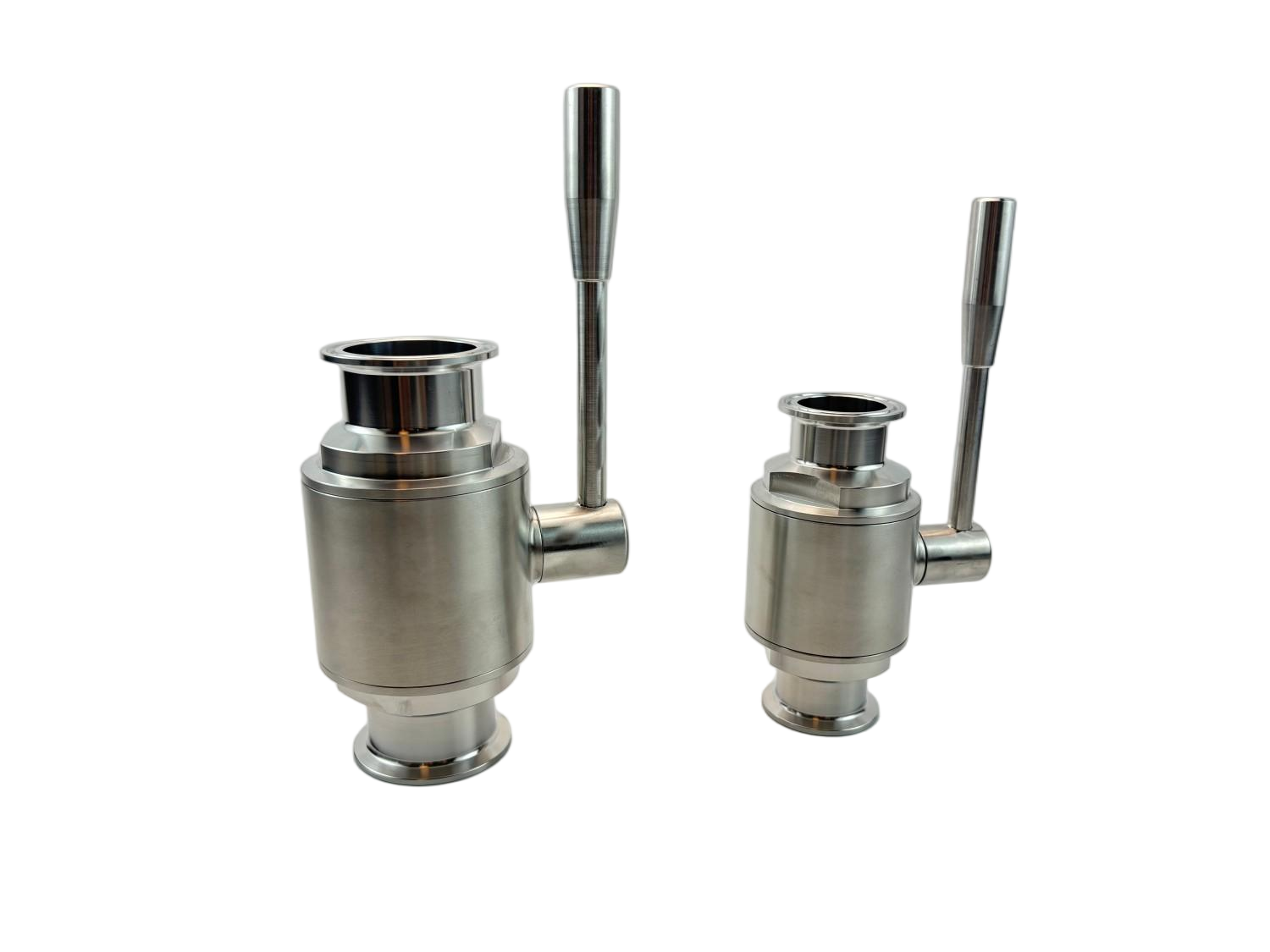

304/316L Sanitary Stainless Steel two way Clamped Ball Valve

QF series ball valve is an efficient fluid control device widely used in food, beverage, pharmaceutical, cosmetics and chemical industries. Designed to ensure safe and efficient transfer of materials, these ball valves are capable of stable operation under a variety of process conditions. Its simple structure and easy operation enable users to easily achieve precise control of fluids.

In the food and beverage industry, QF series ball valves can effectively prevent contamination and ensure product hygiene and safety. Its materials meet food-grade standards, can withstand high temperature and pressure, and adapt to different production needs. In the pharmaceutical and cosmetics industries, QF series ball valves also play an important role, meeting strict hygiene and quality requirements and ensuring product purity and stability.

QF series ball valves are also widely used in the chemical industry. They are capable of handling a variety of corrosive and high-viscosity fluids and have good chemical and abrasion resistance, ensuring reliability in harsh environments. Through precise flow control, QF series ball valves help companies improve production efficiency and reduce energy consumption.

QF series ball valves have become an ideal choice for fluid control in various industries with their excellent performance and wide applicability, providing strong support for the development of modern industry.

Valve body: SS304,SS316L

Valve seat: Encapsulated PTFE

Gasket:EPDM ,Silicone

Maintenance free operation

Compact and portable

Small operating torque

Valve seals and gaskets comply with FDA 177.2600

Manual handle, pneumatic actuator, electric actuator are interchangeable.

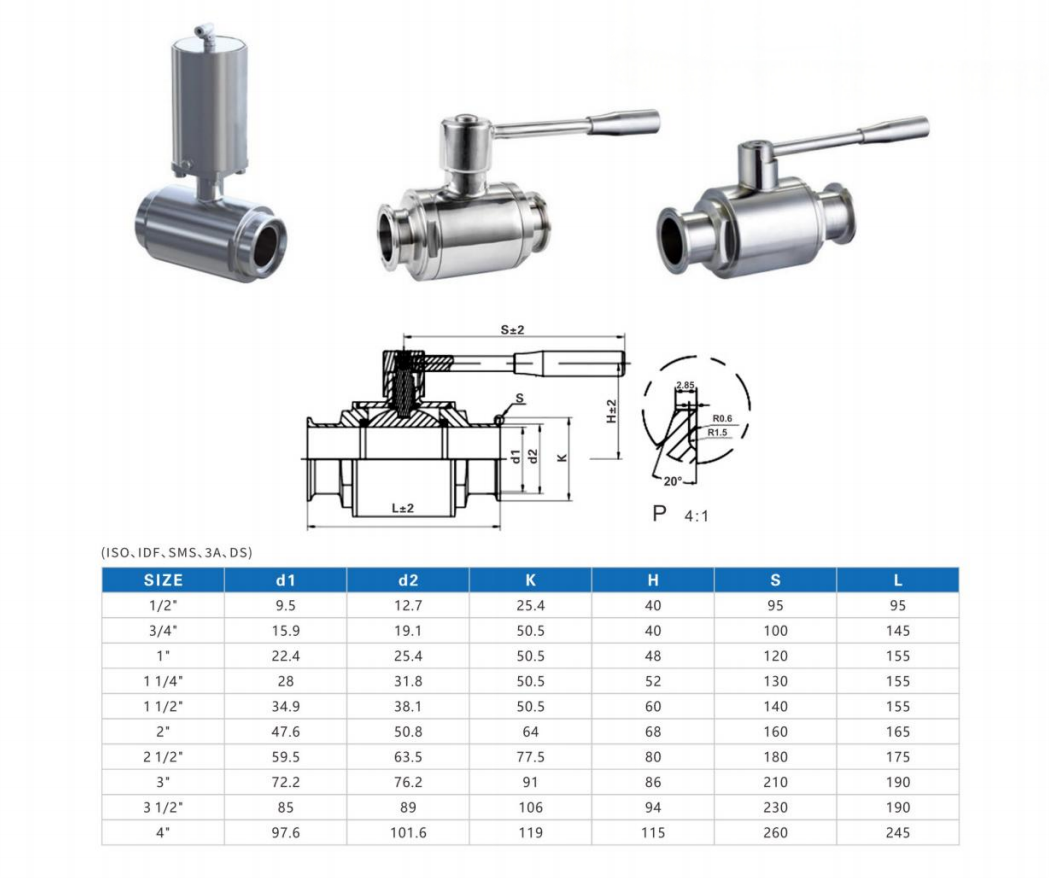

Sizes available from 1/2”-4”

Max. working pressure (PTFE): 10bar (147psi)

Temperature range (PTFE): -20 ~ 180℃

End connections:threaded

Supply pressure for air actuator: 70 ~ 115psi

Inside polish: Ra 32μin (0.8μm); Outside polish: CNC machining
